CAN Communication System

TERMINALS OF ECU

HINT: This section describes the standard CAN values for all CAN related components.

1. CAN J/C

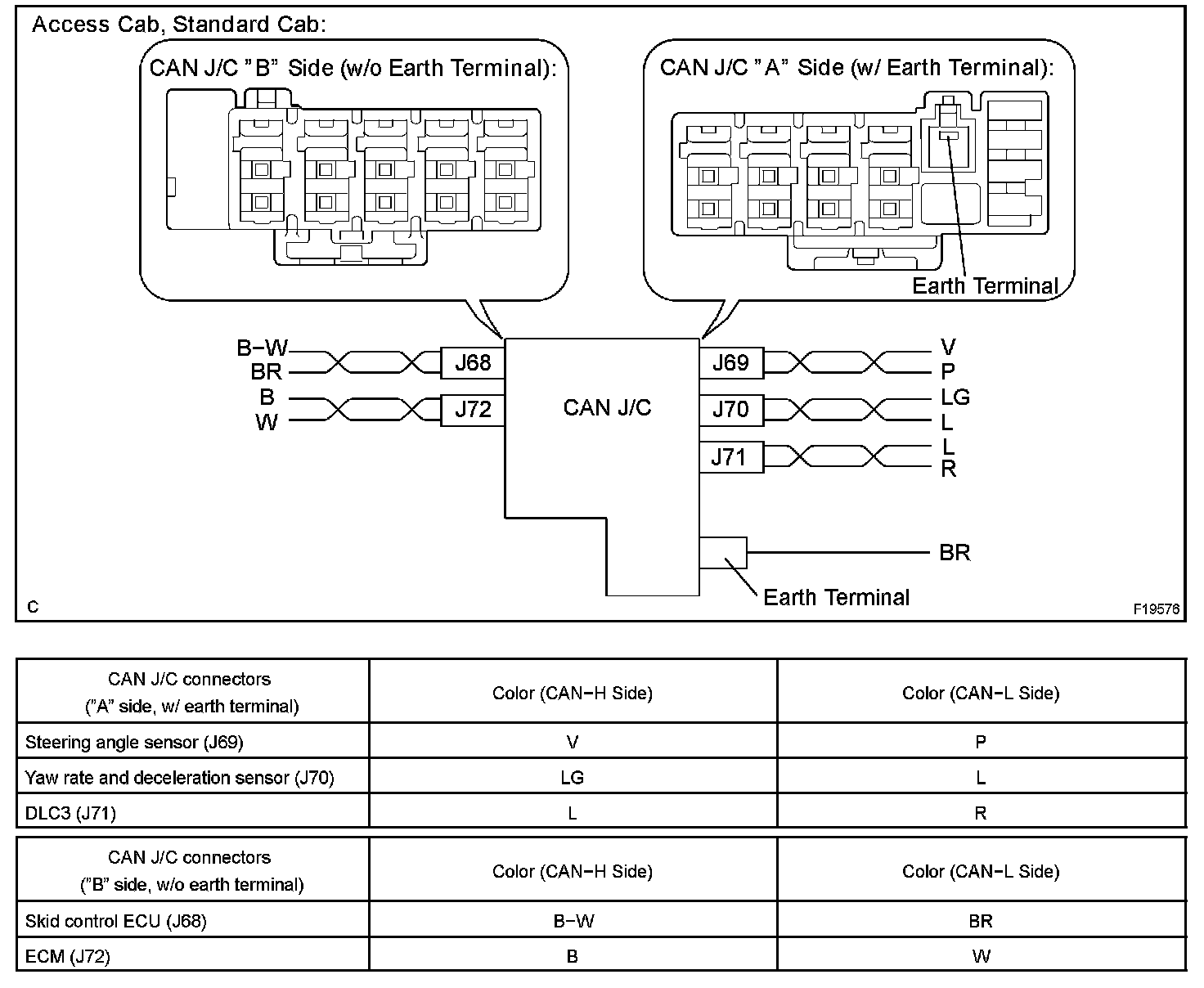

a. Access cab, standard cab.

HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
- J69, J70, and J71 are interchangeable
- J68 and J72 are interchangeable

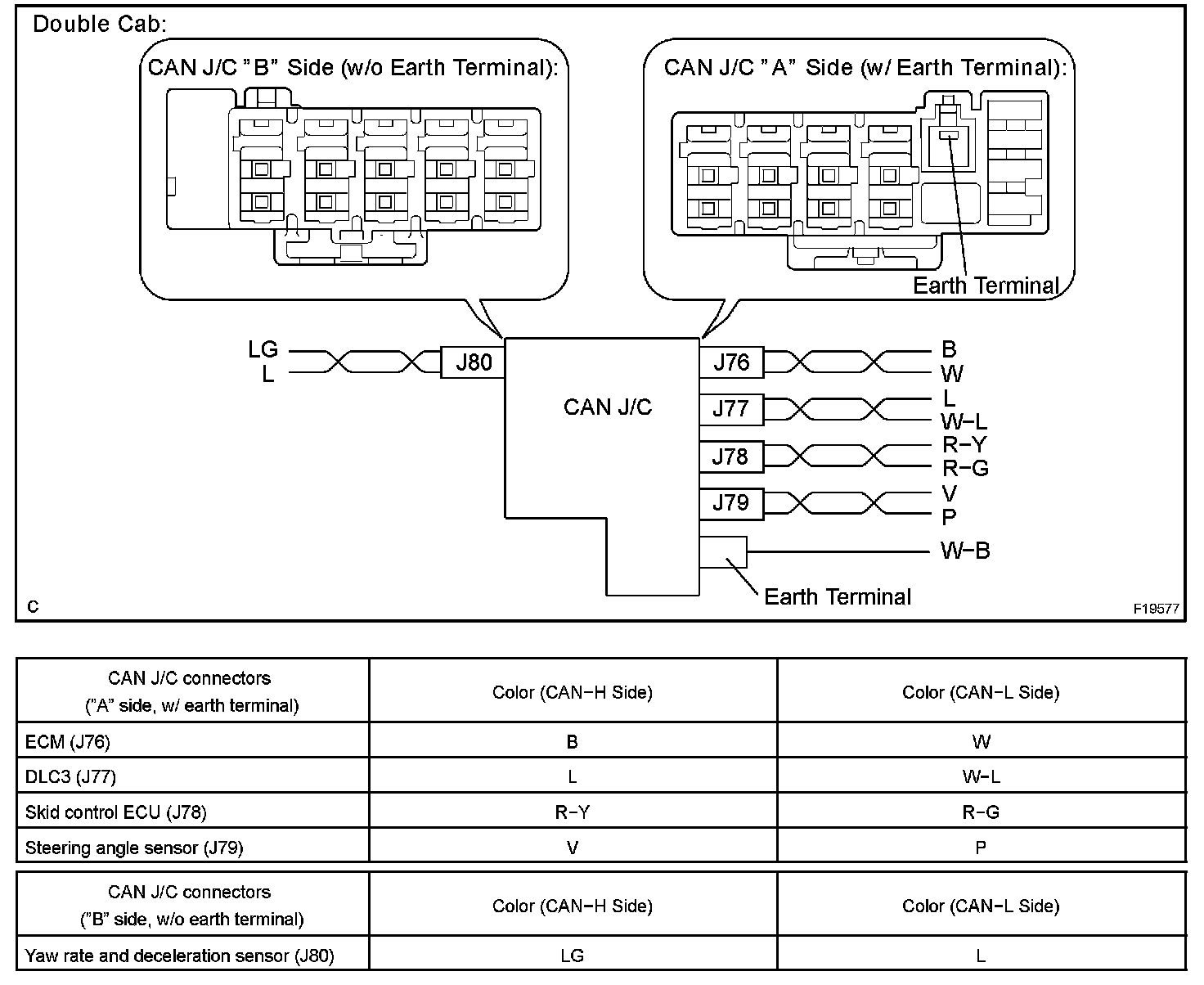

b. Double cab.

HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
- J76, J77, J78 and J79 are interchangeable.




c. The terminals of the CAN J/C connector.




d. Measure the resistance according to the value(s) in the table.

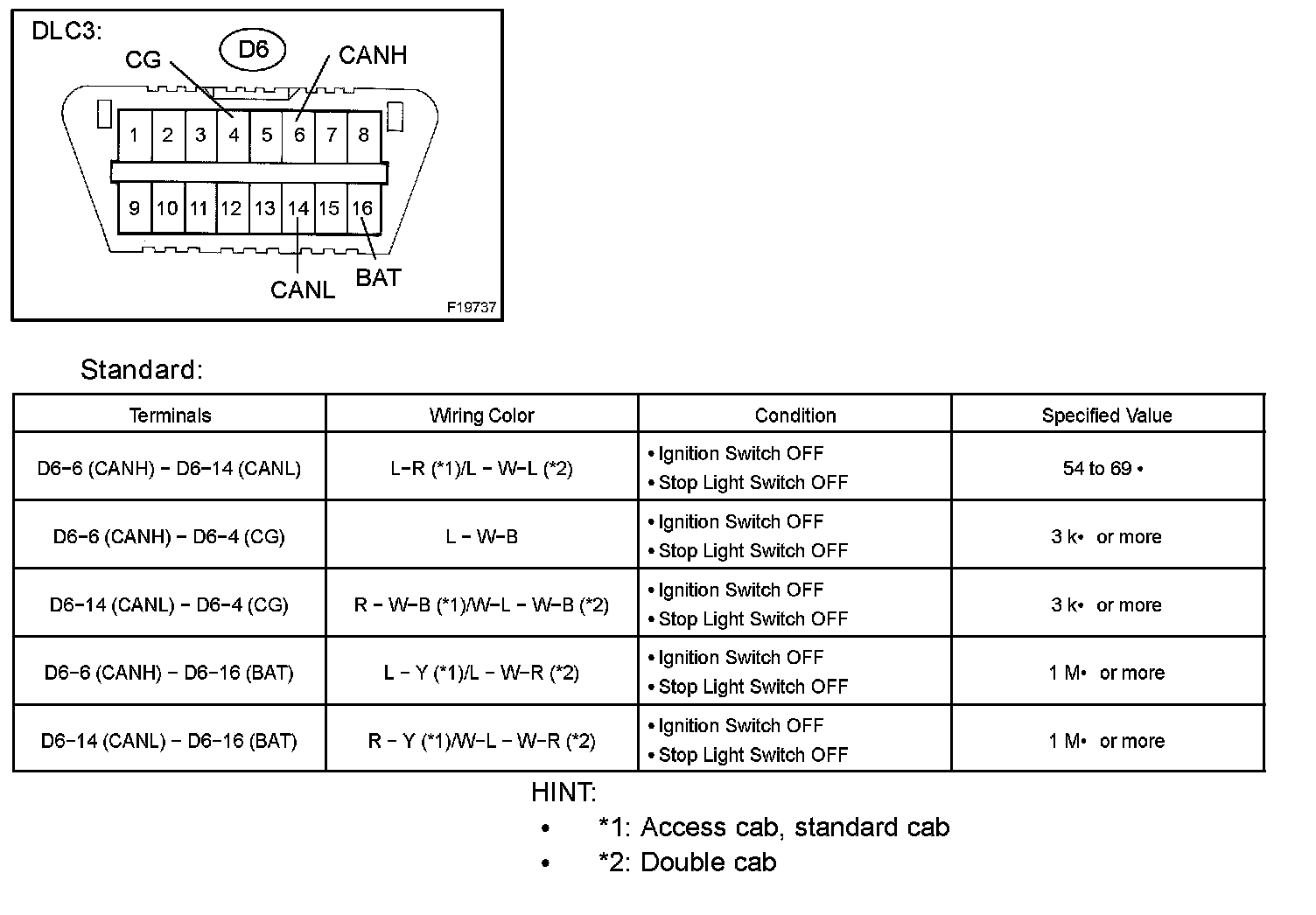

2. DLC3
a. Measure the resistance according to the value(s) in the table given.

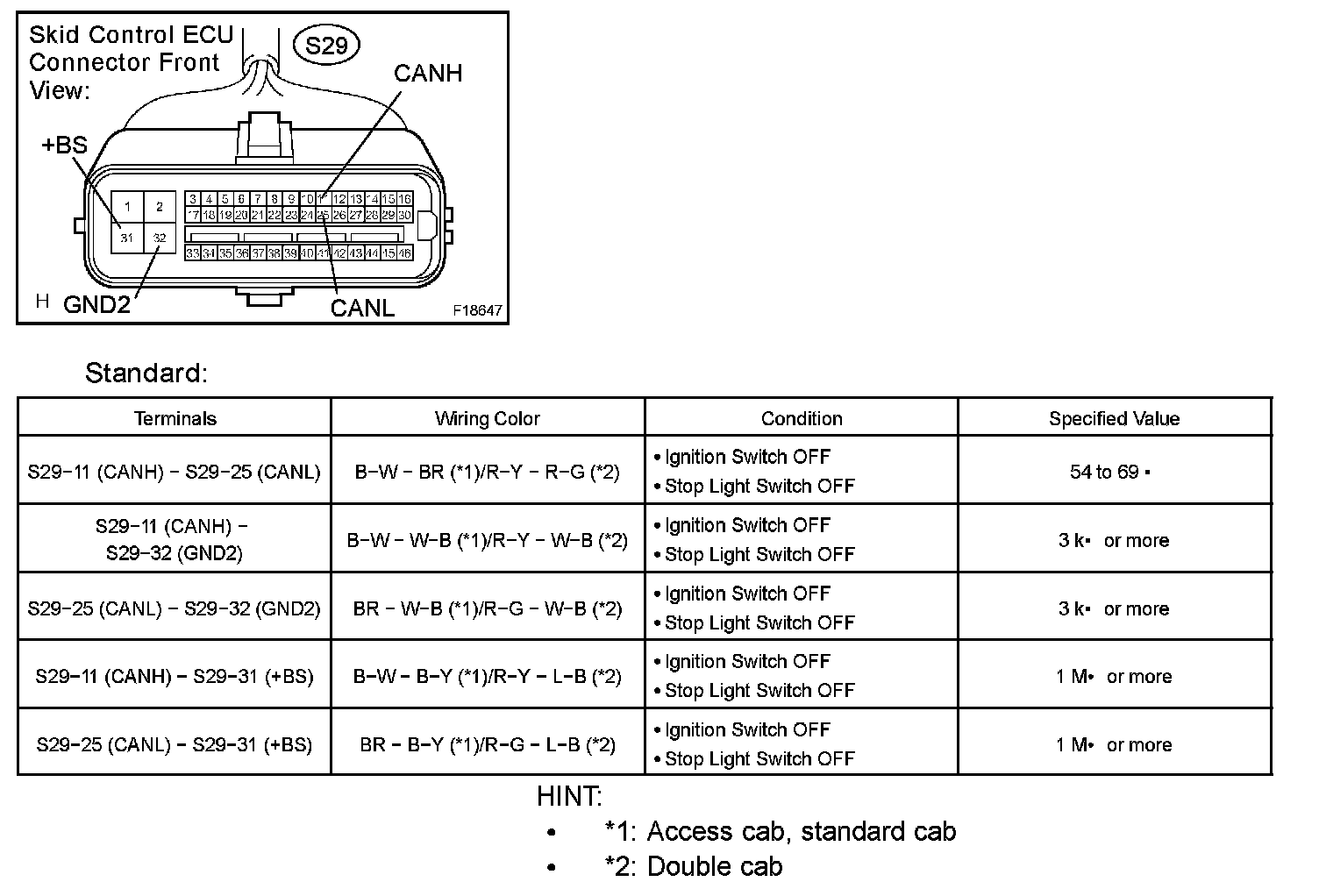

3. Skid Control ECU




a. Measure the resistance according to the value(s) in the table given.

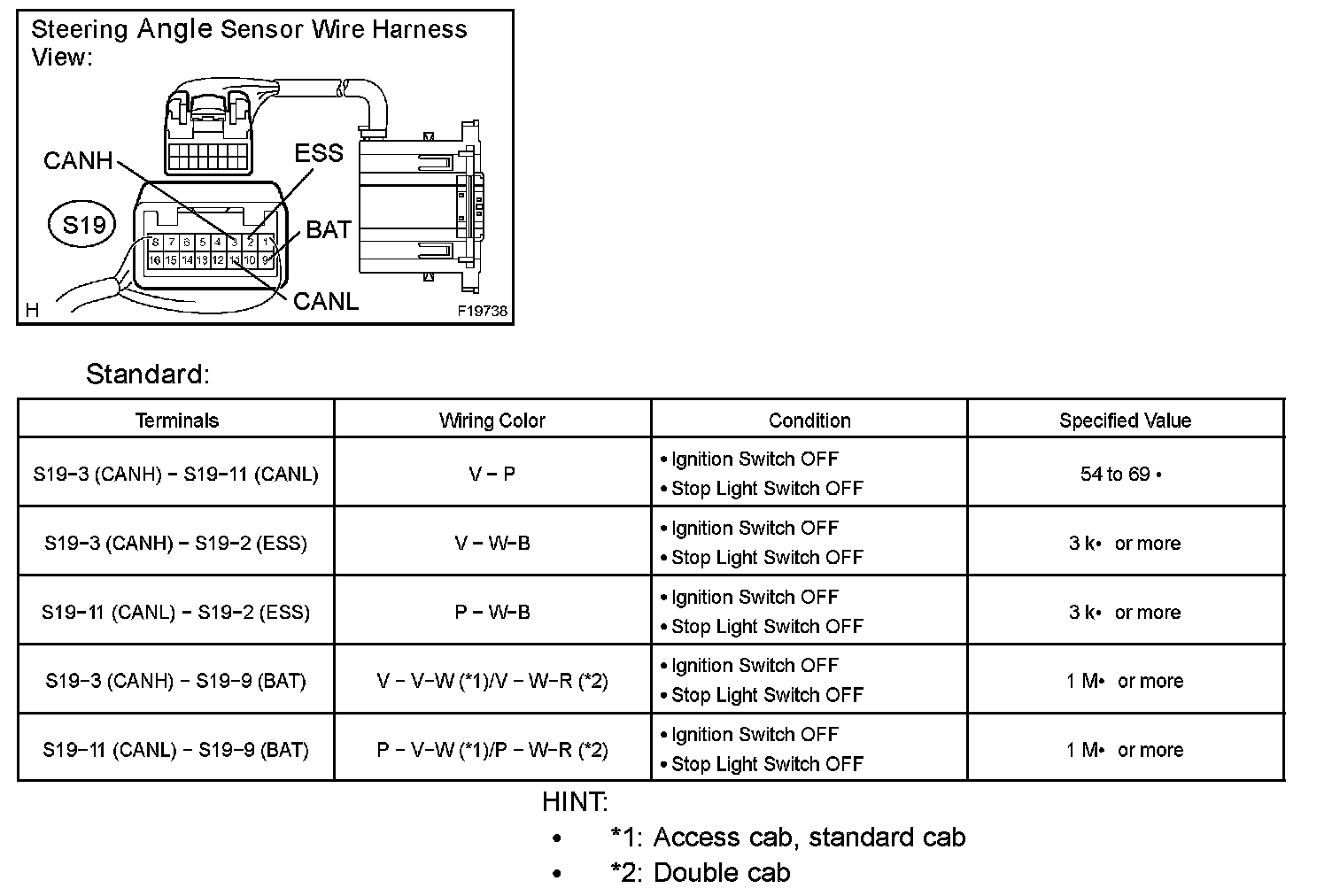

4. Steering Angle Sensor




a. Measure the resistance according to the value(s) in the table given.

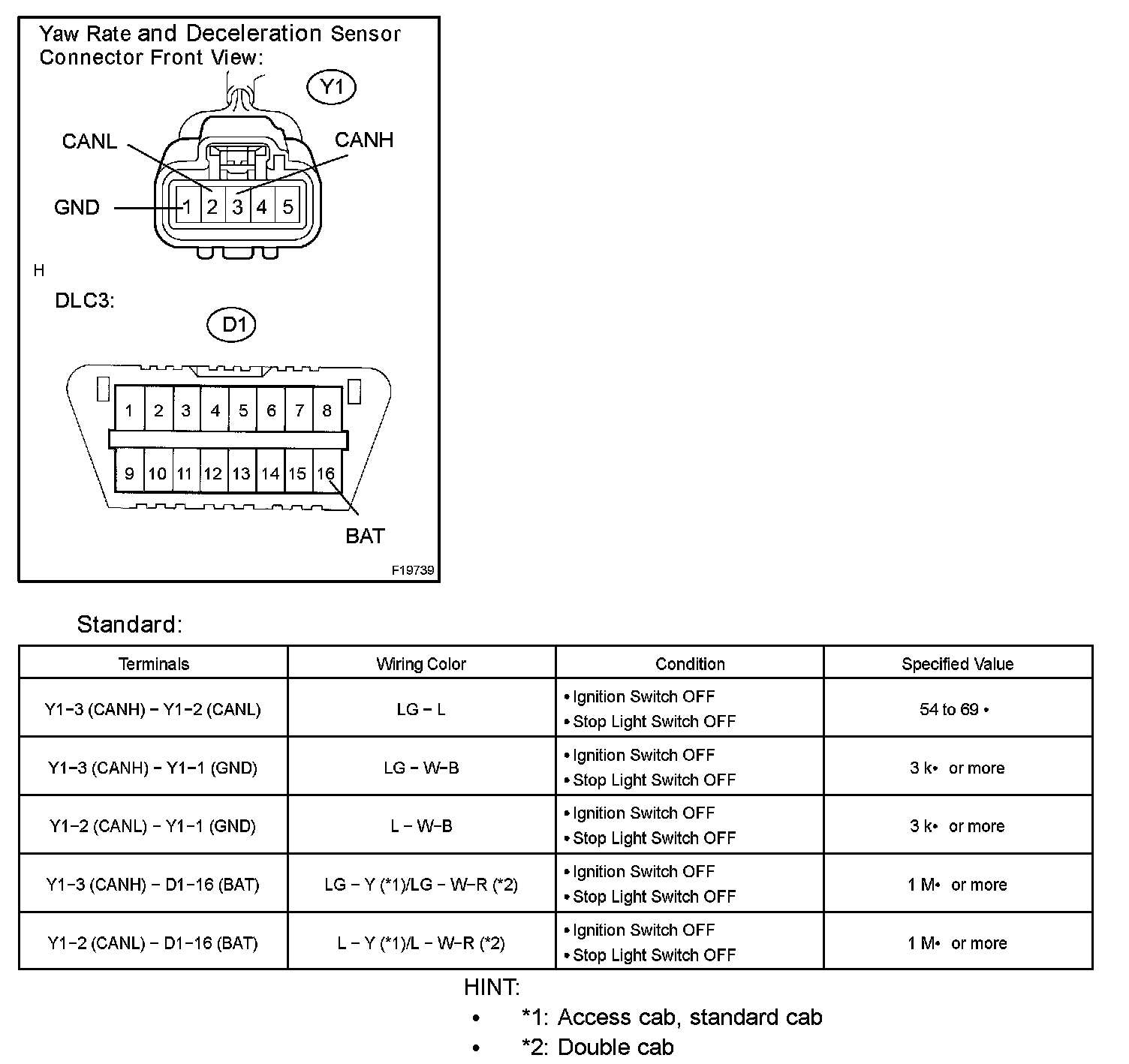

5. Yaw Rate and Deceleration Sensor




a. Measure the resistance according to the value(s) in the table.

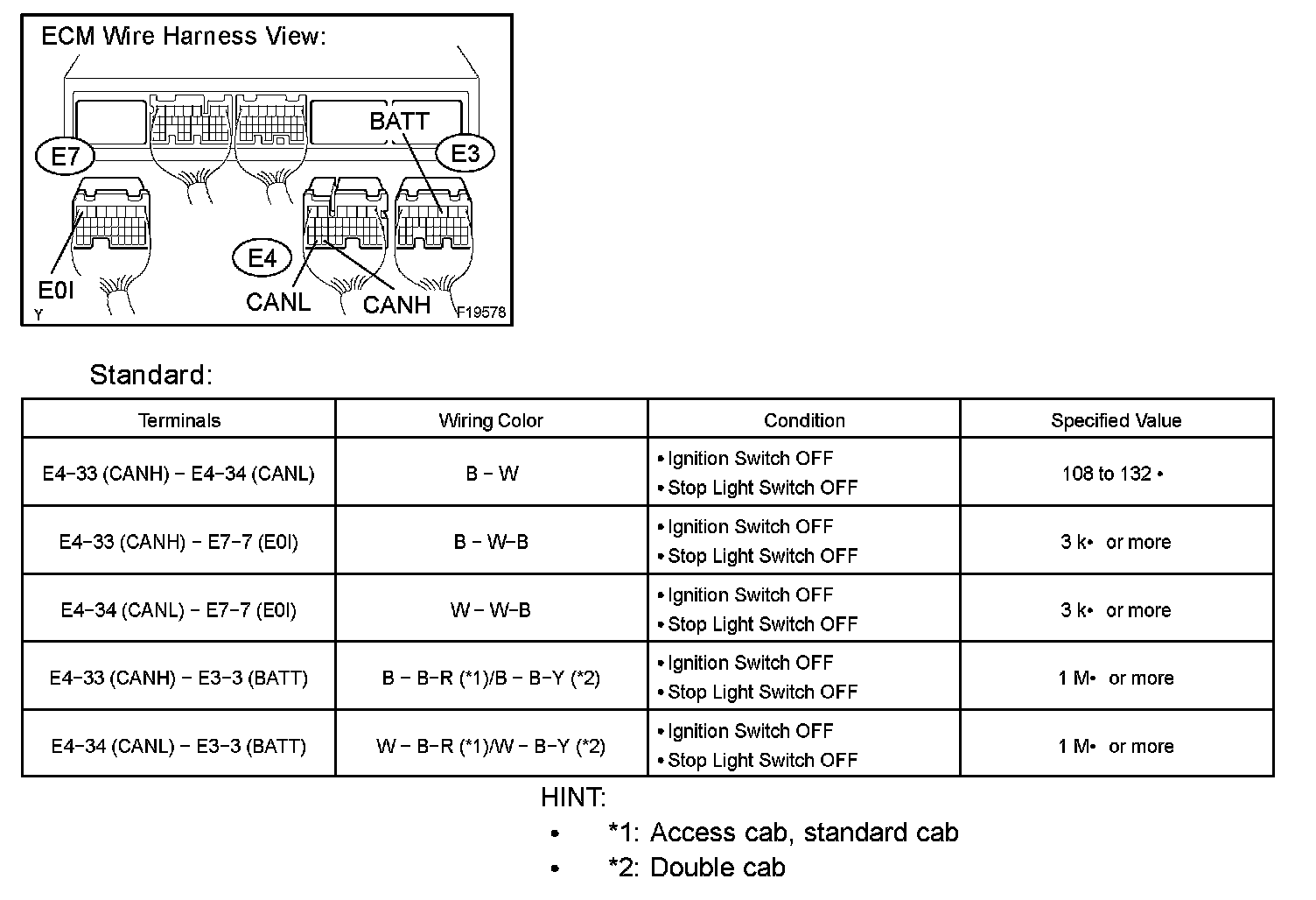

6. ECM




a. Measure the resistance according to the value(s) in the table.




b. Measure the resistance according to the value(s) in the table.
