Installation





1NZ-FE EMISSION CONTROL: HEATED OXYGEN SENSOR: INSTALLATION

1. INSTALL HEATED OXYGEN SENSOR

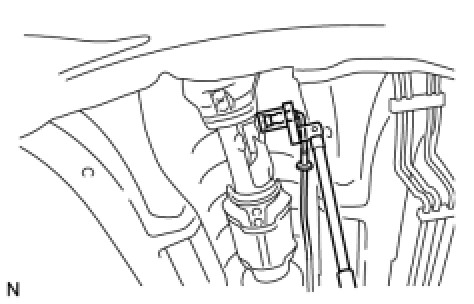

(a) Using SST, install the sensor onto the front exhaust pipe.

SST : 09224-00010

Torque : 44 Nm (449 kgf-cm, 32 ft-lbf)

(b) Pass the sensor connector through the floor panel and install the grommet.

(c) Connect the sensor connector.

2. INSTALL CONSOLE BOX ASSEMBLY REAR Installation

3. INSTALL CONSOLE BOX COVER REAR Installation

4. INSTALL SHIFTING HOLE COVER SUB-ASSEMBLY (for Manual Transaxle) Installation

5. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

7. CHECK FOR EXHAUST GAS LEAKAGE
