Installation





WINDSHIELD / WINDOW GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: INSTALLATION

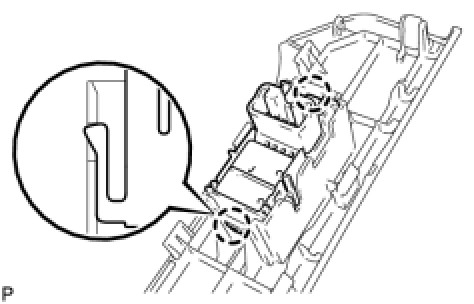

1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY





(a) Engage the 2 claws and install the power window regulator switch.

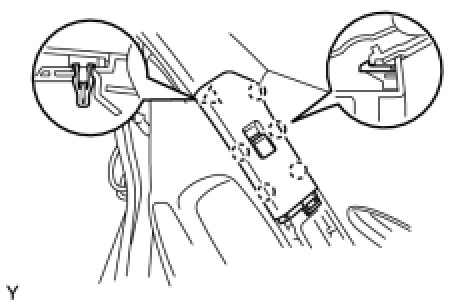

2. INSTALL FRONT ARMREST BASE PANEL UPPER





(a) Connect the connector.

(b) Engage the 5 claws and clip and install the front armrest base panel upper.

3. INSTALL DOOR ARMREST COVER Reassembly

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
