Canada - Body - Back Door Window Initialization

Bulletin
2623

Issue Date
August 30, 2006

Market
Canada

Title:
BACK DOOR POWER WINDOW INITIALIZATION DURING PDS

Component
GENERAL INFORMATION

Models
'07 4Runner

INTRODUCTION:
This bulletin outlines the initialization procedure for the back door power window on the 4Runner.

To minimize the battery discharge during transportation and storage, the Short Pin has been removed at the assembly plant, resulting in the following feature being inoperative.
- One-touch open and close with jam protection.

Use the following initialization procedure after installing the Short Pin during Pre-Delivery Service (PDS) and whenever the battery has been disconnected.

APPLICABLE VEHICLES:
- 2007 model year 4Runner vehicles.







WARRANTY INFORMATION:

INITIALIZATION PROCEDURE:

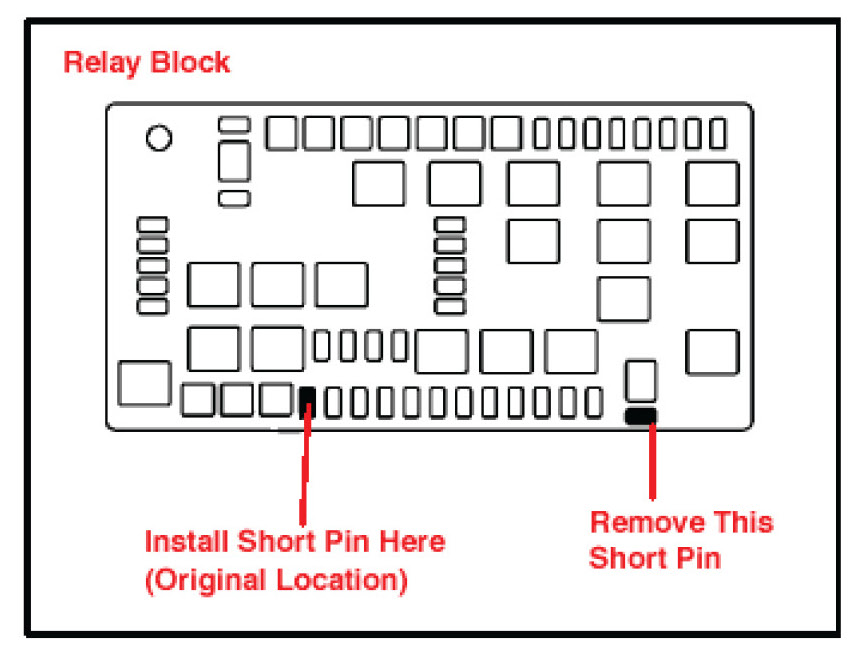

1. Make sure the Short Pin is installed in its original (Refer to TSB No. 2624, "Short Pin Installation During PDS.")







2. Turn ignition switch to the "ON" position.

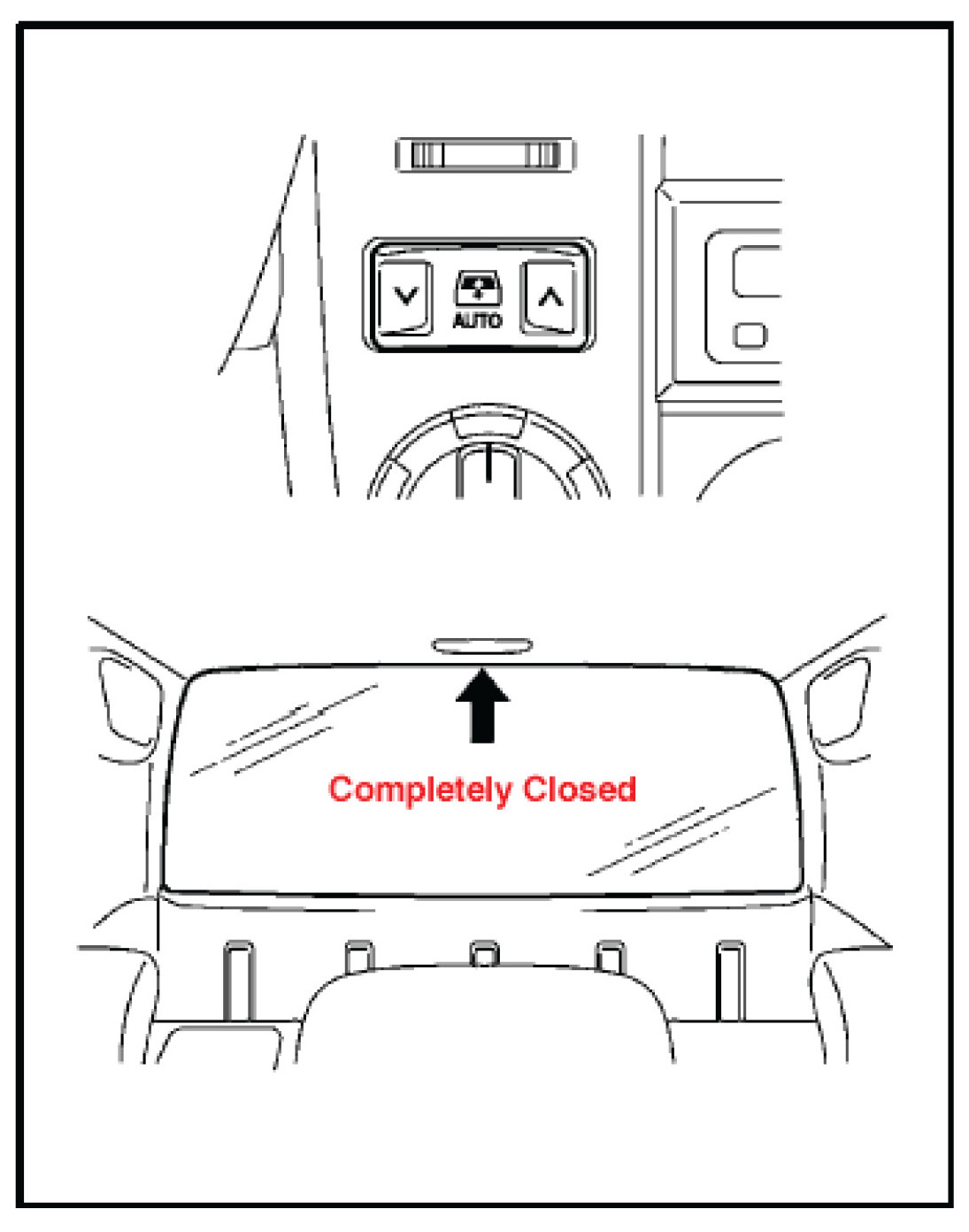

3. Push the back door power window switch to the "DOWN" side to open the window.
4. Push and hold the back door power window switch to the "UP" side until the window closes. Continue holding it for approximately 1 second.
5. Check for proper operation of the "one-touch open/close" functions by pushing the switch briefly to the "DOWN" and "UP" position.

NOTE:
Jam protection function becomes effective through the above initialization procedure.
