Central Control Module: Service and Repair

Network Gateway ECU:







NETWORK GATEWAY ECU

REMOVAL

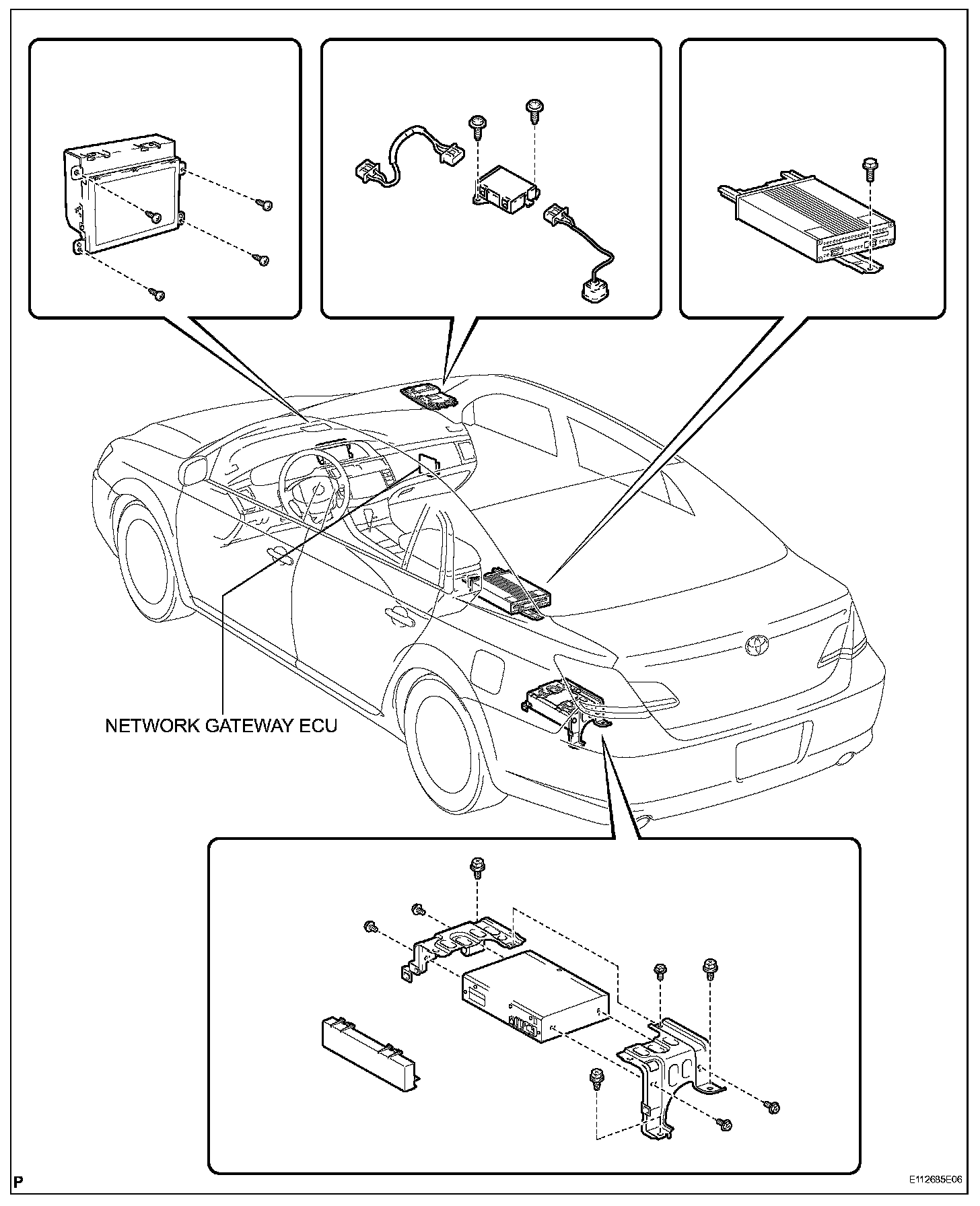

1. TABLE OF BOLT, SCREW AND NUT

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

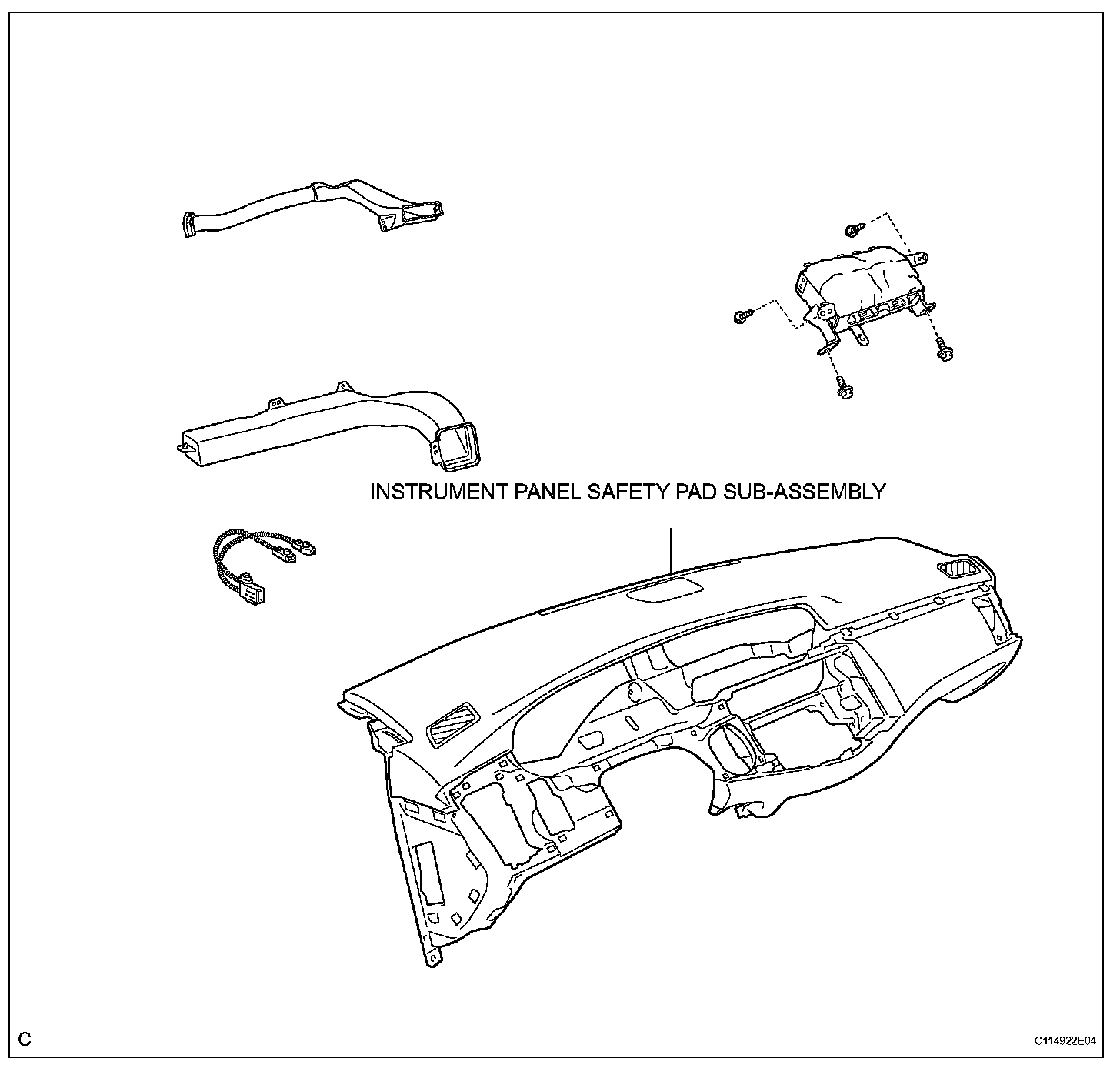

3. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Front Passenger Airbag)

HINT: Refer to the procedures up to the removal of the instrument panel safety pad sub-assembly (w/ front passenger airbag)

4. REMOVE NETWORK GATEWAY ECU




a. Disconnect the connector.

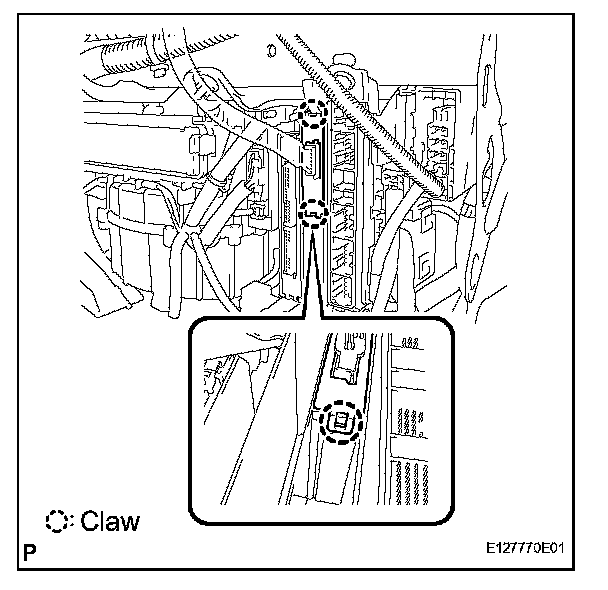

b. Disengage the 2 claw and remove the ECU aggregation cover No. 1.

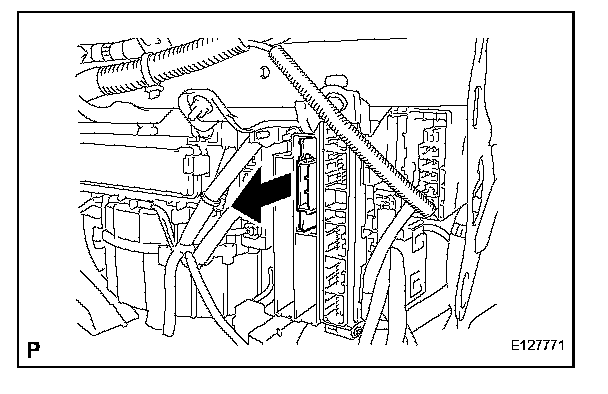

c. Remove the network gateway ECU assembly as shown in the illustration.

INSTALLATION

1. INSTALL NETWORK GATEWAY ECU
2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (w/ Front Passenger Airbag)
3. CENTER SPIRAL CABLE
4. INSTALL STEERING WHEEL ASSEMBLY
5. INSTALL STEERING PAD
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM SYSTEM INITIALIZE
8. INSPECT STEERING PAD
9. INSPECT SRS WARNING LIGHT
