Navigation ECU

Navigation ECU:




Navigation ECU:

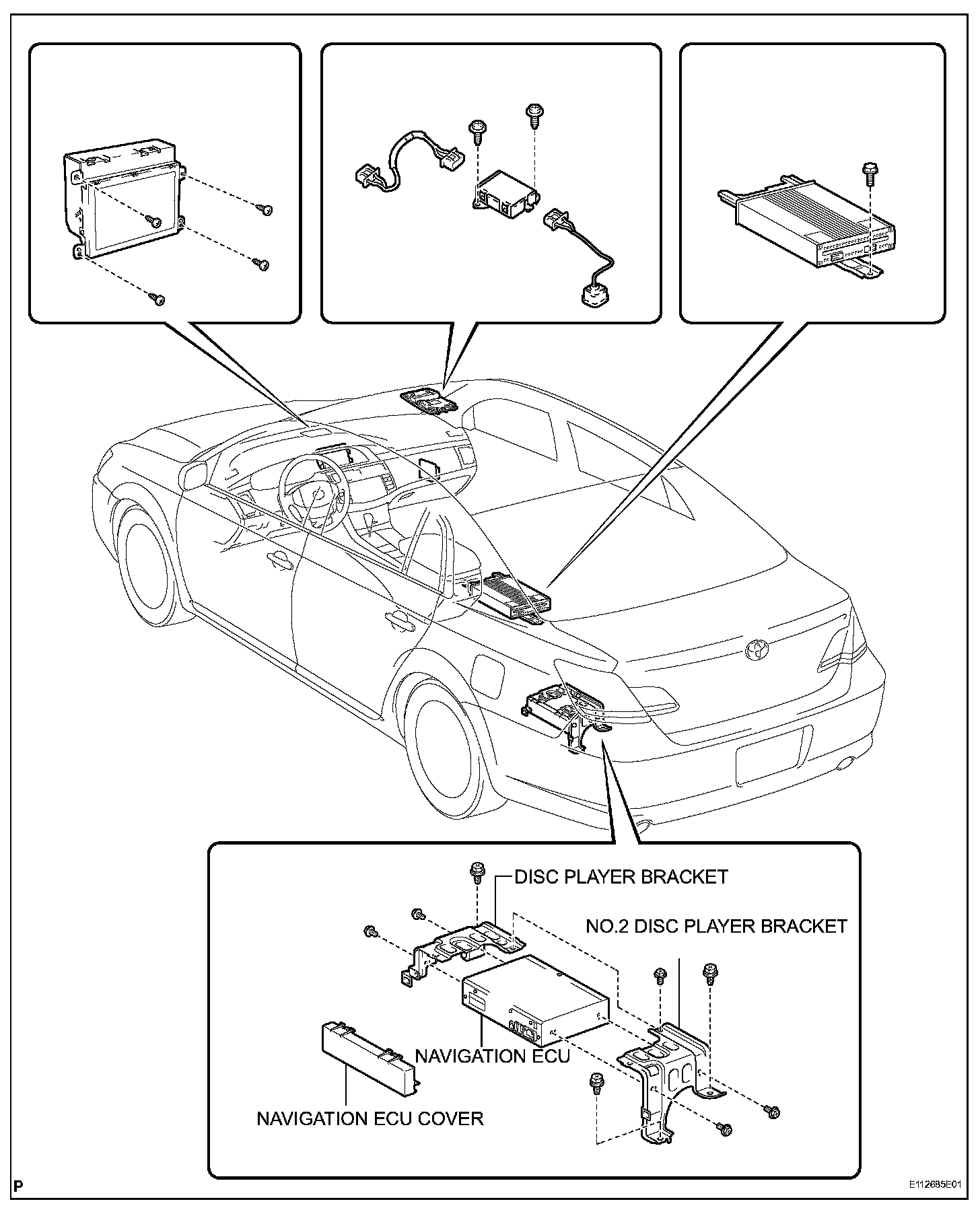

Navigation ECU

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH

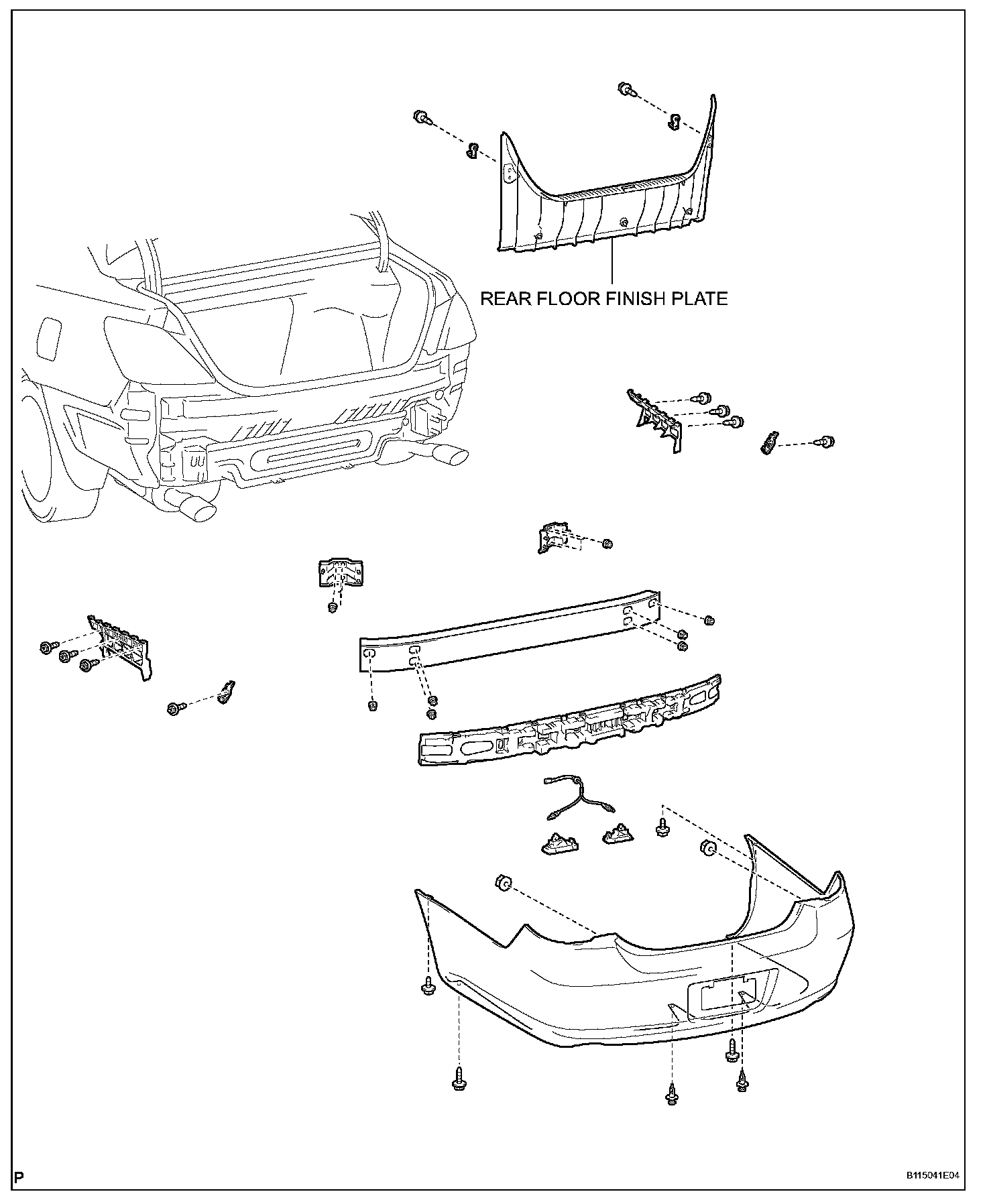

2. REMOVE REAR FLOOR FINISH PLATE

3. REMOVE DISC PLAYER DISC
a. Eject the disc player disc.




4. REMOVE NAVIGATION ECU COVER

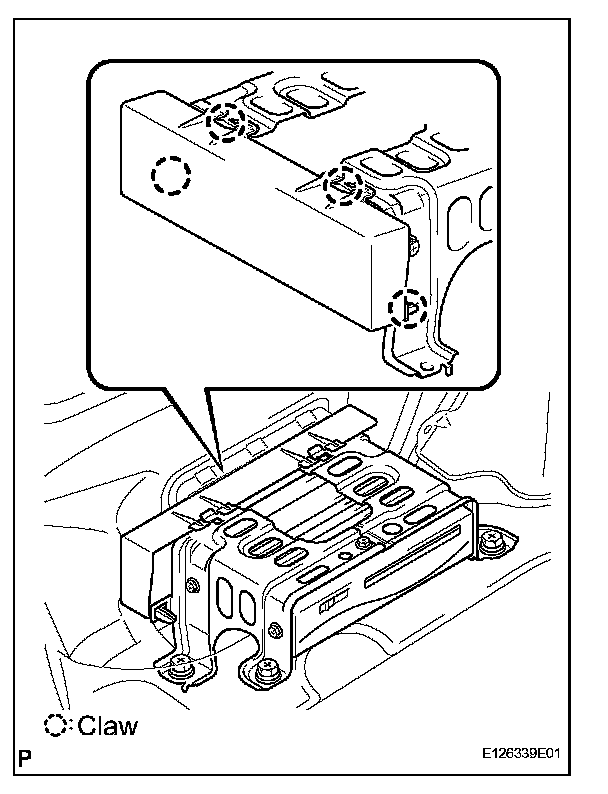

a. Disengage the 4 claws and remove the navigation ECU cover.




5. REMOVE NAVIGATION COMPUTER WITH BRACKET

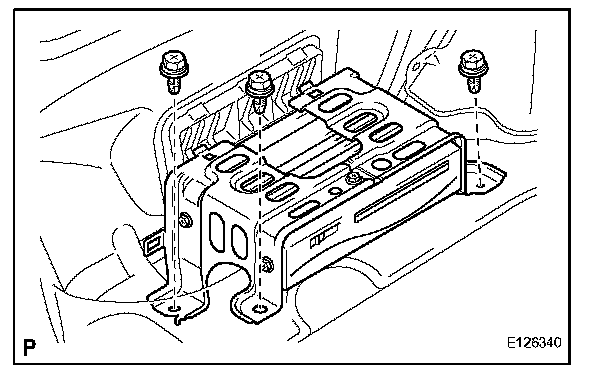

a. Remove the 3 screws and navigation computer w/ bracket.




6. REMOVE NO.2 DISC PLAYER BRACKET

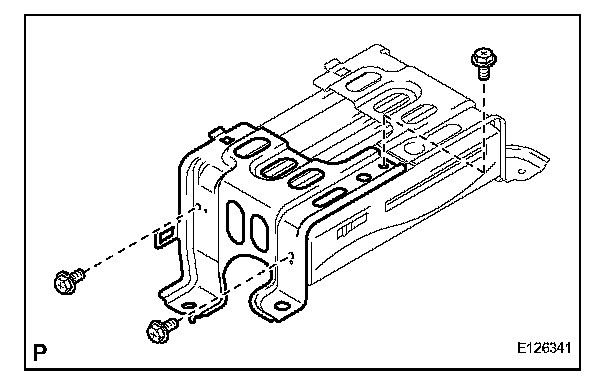

a. Remove the 3 bolts and NO.2 disc player bracket.




7. REMOVE DISC PLAYER BRACKET

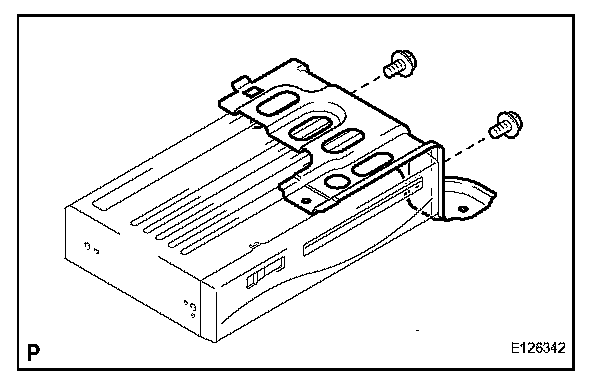

a. Remove the 2 bolts and disc player bracket.

8. REMOVE NAVIGATION ECU

INSTALLATION

1. INSTALL NAVIGATION ECU
2. INSTALL DISC PLAYER BRACKET
3. INSTALL NO.2 DISC PLAYER BRACKET
4. INSTALL NAVIGATION COMPUTER WITH BRACKET
5. INSTALL NAVIGATION ECU COVER
6. INSTALL DISC PLAYER DISC
7. INSTALL REAR FLOOR FINISH PLATE
8. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LH
