Symptom Related Diagnostic Procedures
PROBLEM SYMPTOMS TABLEHINT:Inspect the fuse and relay before confirming the suspected areas in the table below.
Inspect each suspected area in numerical order for the corresponding symptom.
If the malfunction still exists after checking and confirming that all circuits and components are normal, replace the ECU.

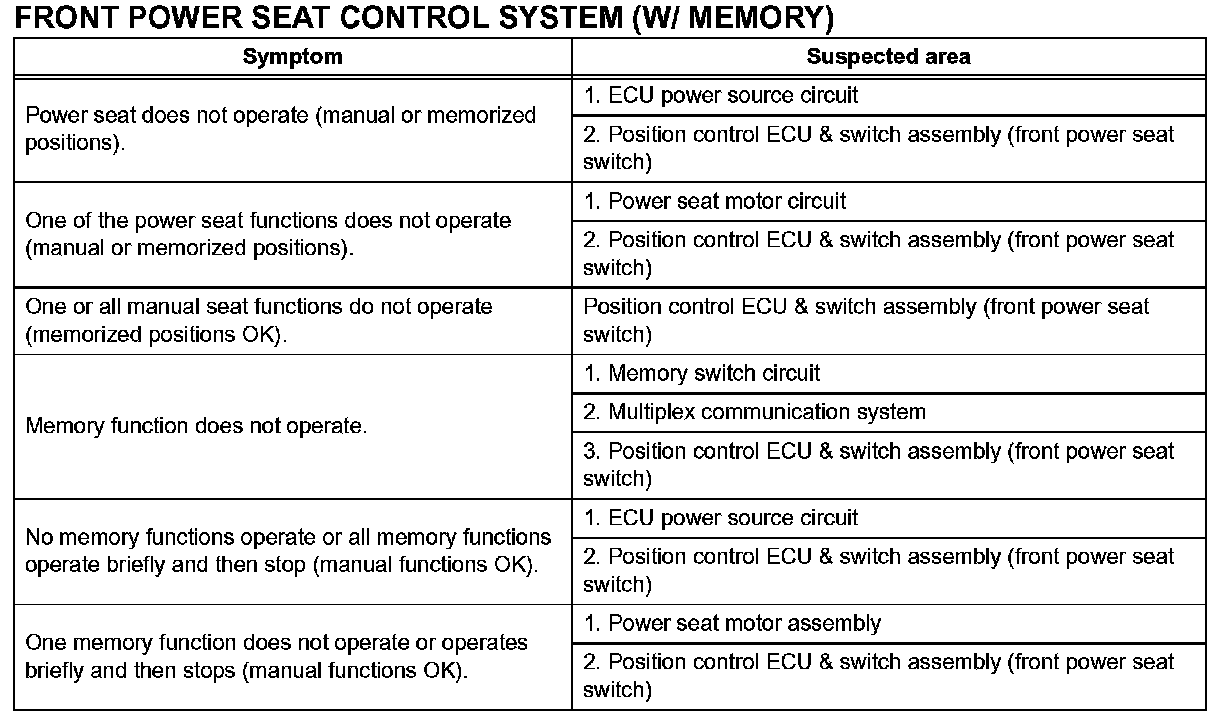

Problem Symptoms Table - Front Power Seat Control System (W/ Memory):
