Cruise Control Switch: Service and Repair

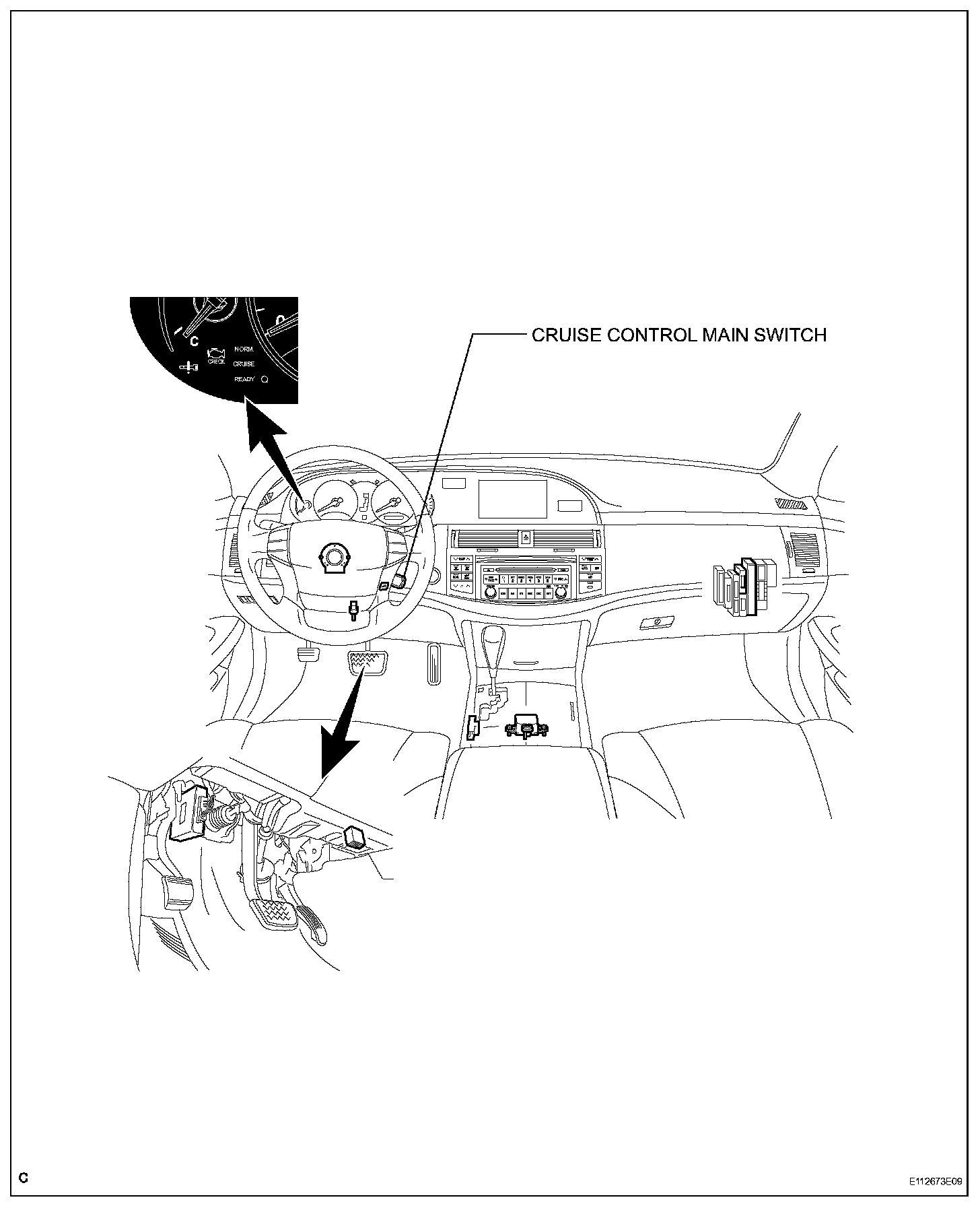

Cruise Control Main Switch:




Cruise Control Main Switch:




CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

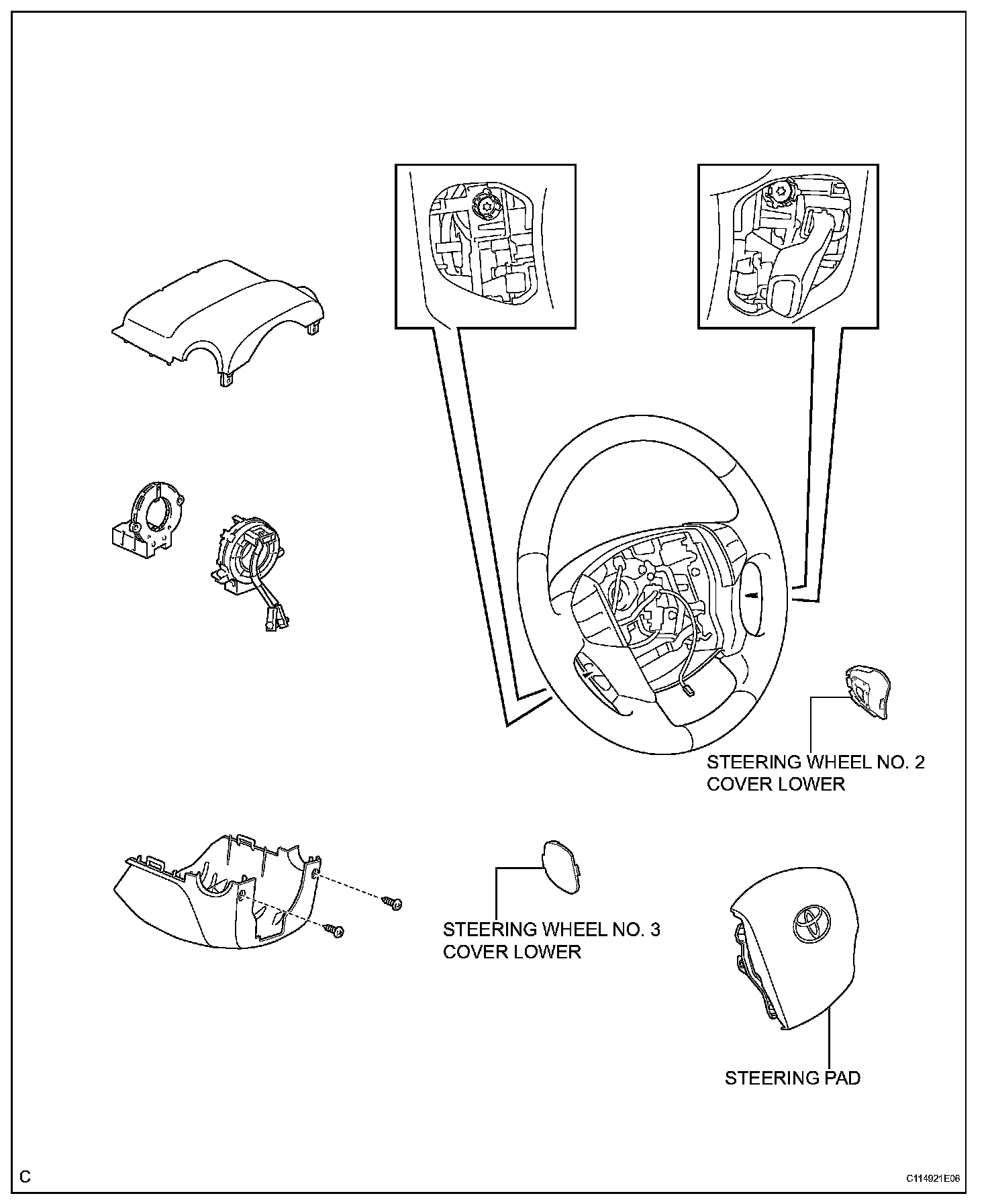

2. REMOVE STEERING WHEEL NO.3 COVER LOWER
3. REMOVE STEERING WHEEL NO.2 COVER LOWER
4. REMOVE STEERING PAD

5. REMOVE CRUISE CONTROL MAIN SWITCH

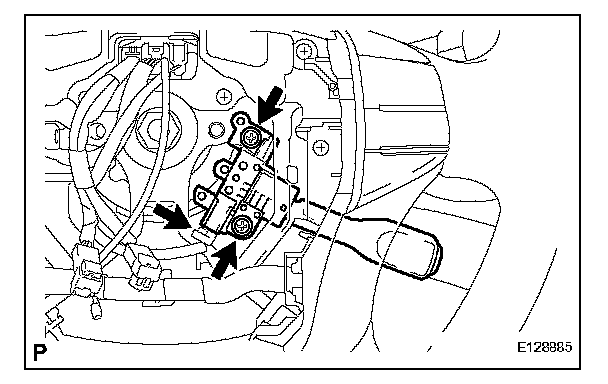

a. Disconnect the connector.
b. Remove the 2 screws.

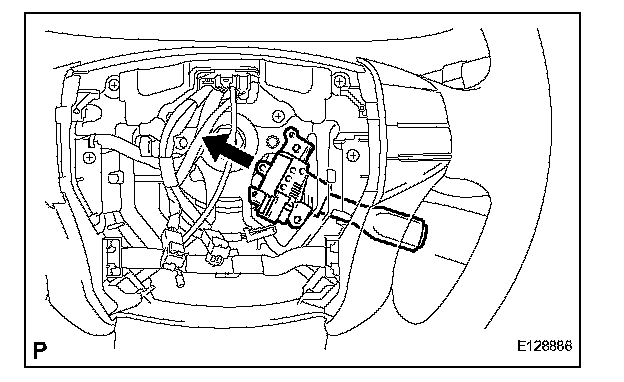

c. Pull out the cruise control main switch assembly in the direction shown by the arrow in the illustration.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH
a. Install the cruise control main switch assembly with the 2 screws.

Torque: 2.35 N.m (24 kgf.cm, 21 in.lbf)

b. Connect the connector.

2. INSTALL STEERING PAD
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION

NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.

5. INSPECT STEERING PAD
6. INSPECT SRS WARNING LIGHT
