Programming and Relearning

CUSTOMIZE PARAMETERS

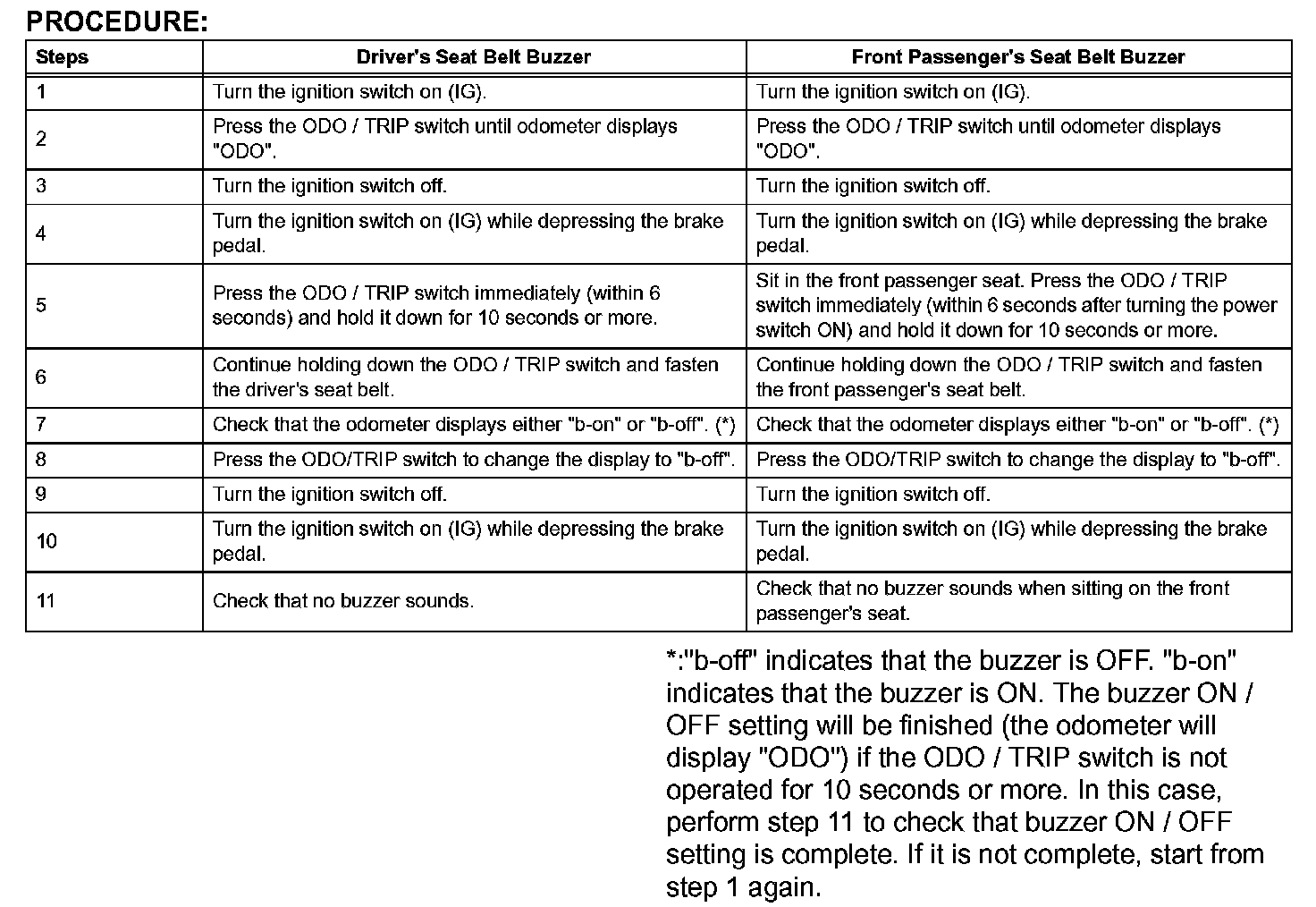

1. BUZZER ON / OFF SETTING




a. The buzzer ON / OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver's seat belt buzzer and front passenger's seat belt buzzer.

NOTE: Basically, these buzzers should be set on for safe driving. However, perform the given procedures only if it is necessary to set the buzzer off.

NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.

2. CUSTOMIZE PARAMETER (Using a intelligent tester)




a. The given items can the possible items to be customized.

NOTE:
- Be sure to record the current value before customizing.
- When performing troubleshooting, be aware that the functions may be set to OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not set to OFF by customizing, then perform the troubleshooting)

3. TIME ZONE SETTING (w/ Navigation system)
