Auxiliary Power Outlet: Service and Repair

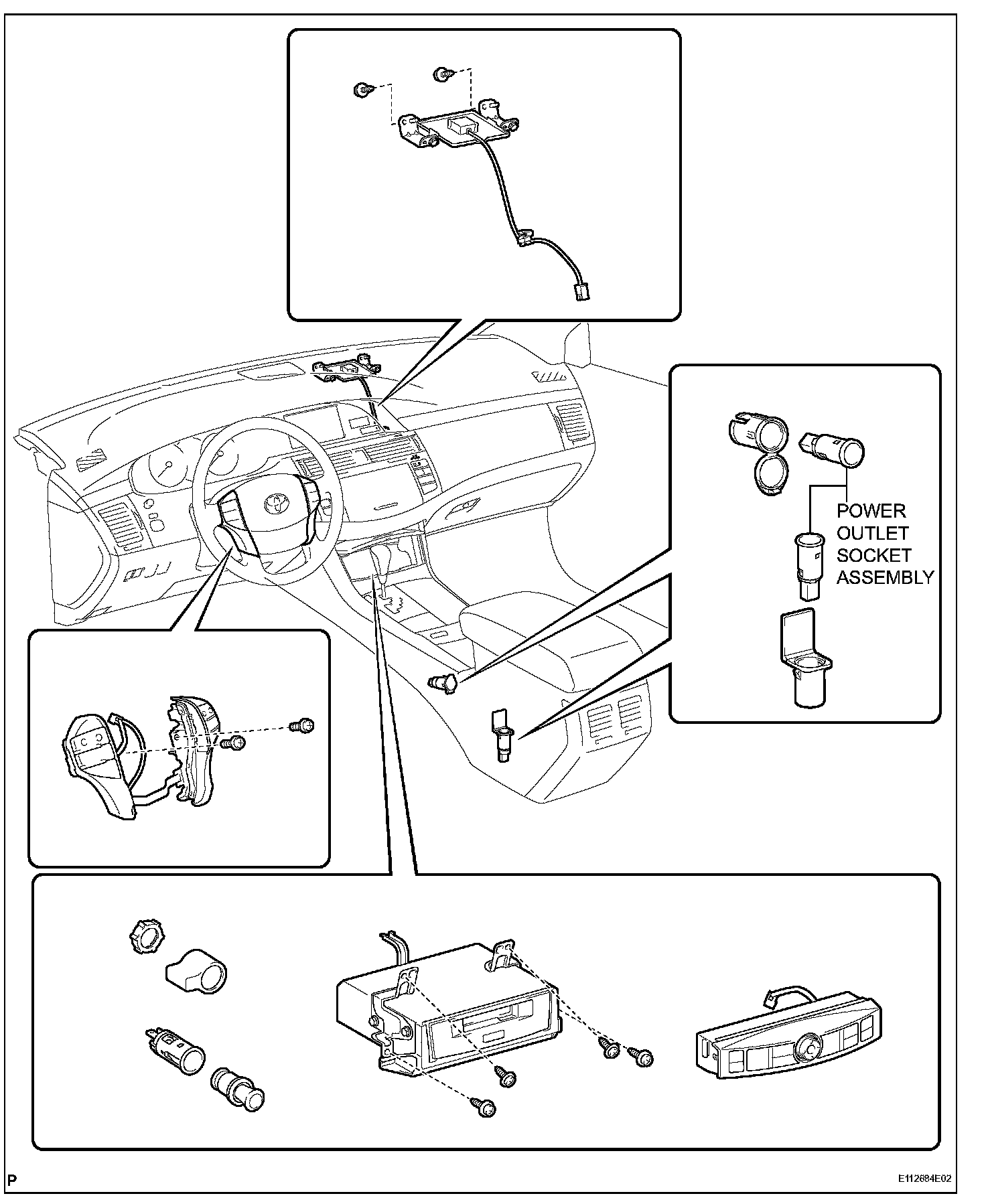

Power Outlet Socket:

Power Outlet Socket:

Power Outlet Socket

REMOVAL

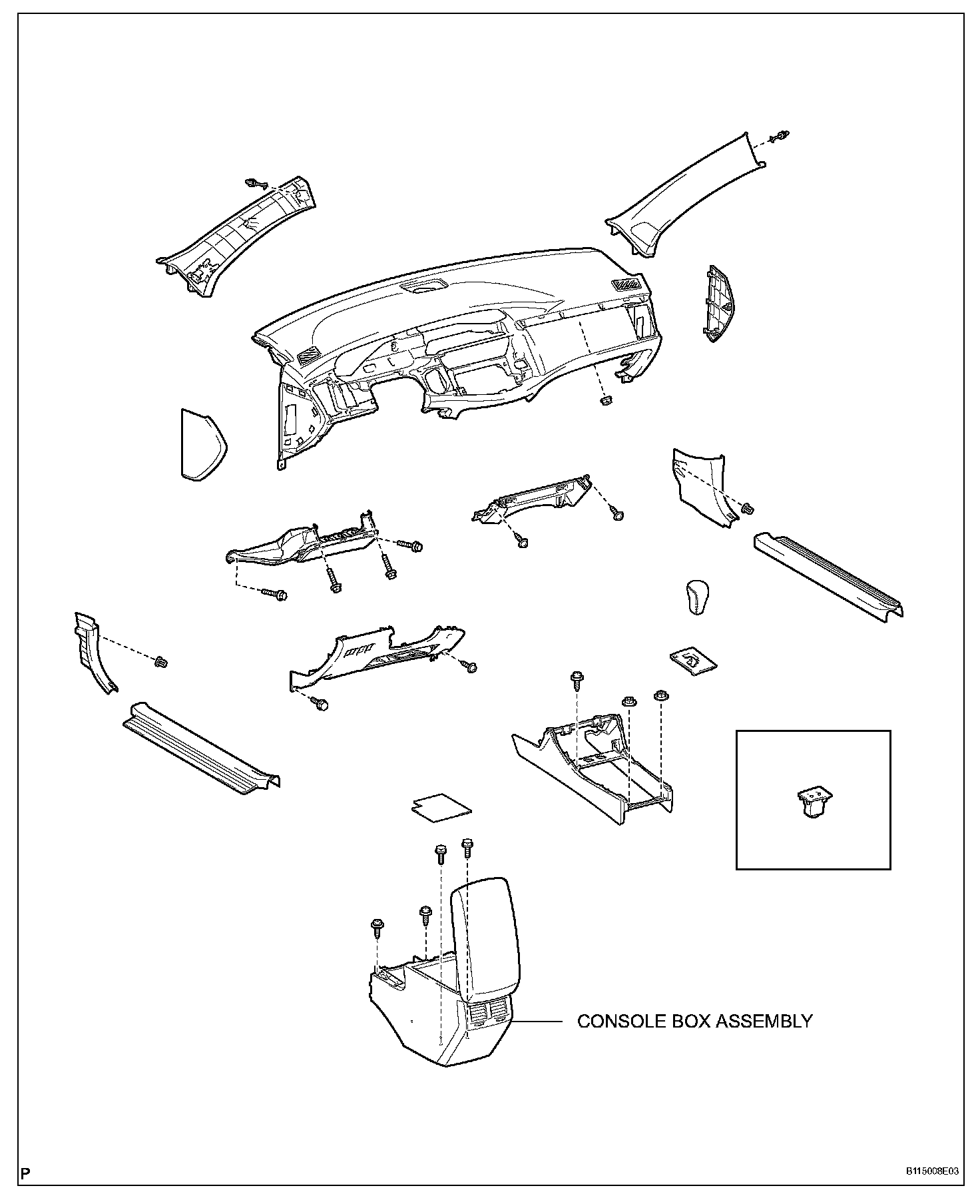

1. REMOVE CONSOLE BOX ASSEMBLY




2. REMOVE POWER OUTLET SOCKET ASSEMBLY
a. Front position:
1. Disengage the claw and remove the power outlet socket assembly as shown in the illustration.




2. Disengage the 2 claws and remove the power outlet socket cover as shown in the illustration.




b. Rear position:
1. Disengage the claw in the direction indicated by the arrow.




2. Release the stopper.
3. Turn in the direction indicated by the arrow and push the power outlet socket assembly.




4. Align the protrusion on the power outlet socket assembly and the recess on the power point socket cover.




5. Release the stopper.
6. Remove the power outlet socket assembly as shown in the illustration.

INSTALLATION

1. INSTALL POWER OUTLET SOCKET ASSEMBLY
2. INSTALL CONSOLE BOX ASSEMBLY
