Check CAN Bus Line For Short to +B
Check CAN Bus Line for Short to +BDESCRIPTION
There may be a short circuit between the CAN bus line and +B when there is resistance between terminals 6 (CANH) and 16 (BAT), or terminals 14 (CANL) and 16 (BAT), of the DLC3.
Wiring Diagram (Part 1):
Wiring Diagram (Part 2):

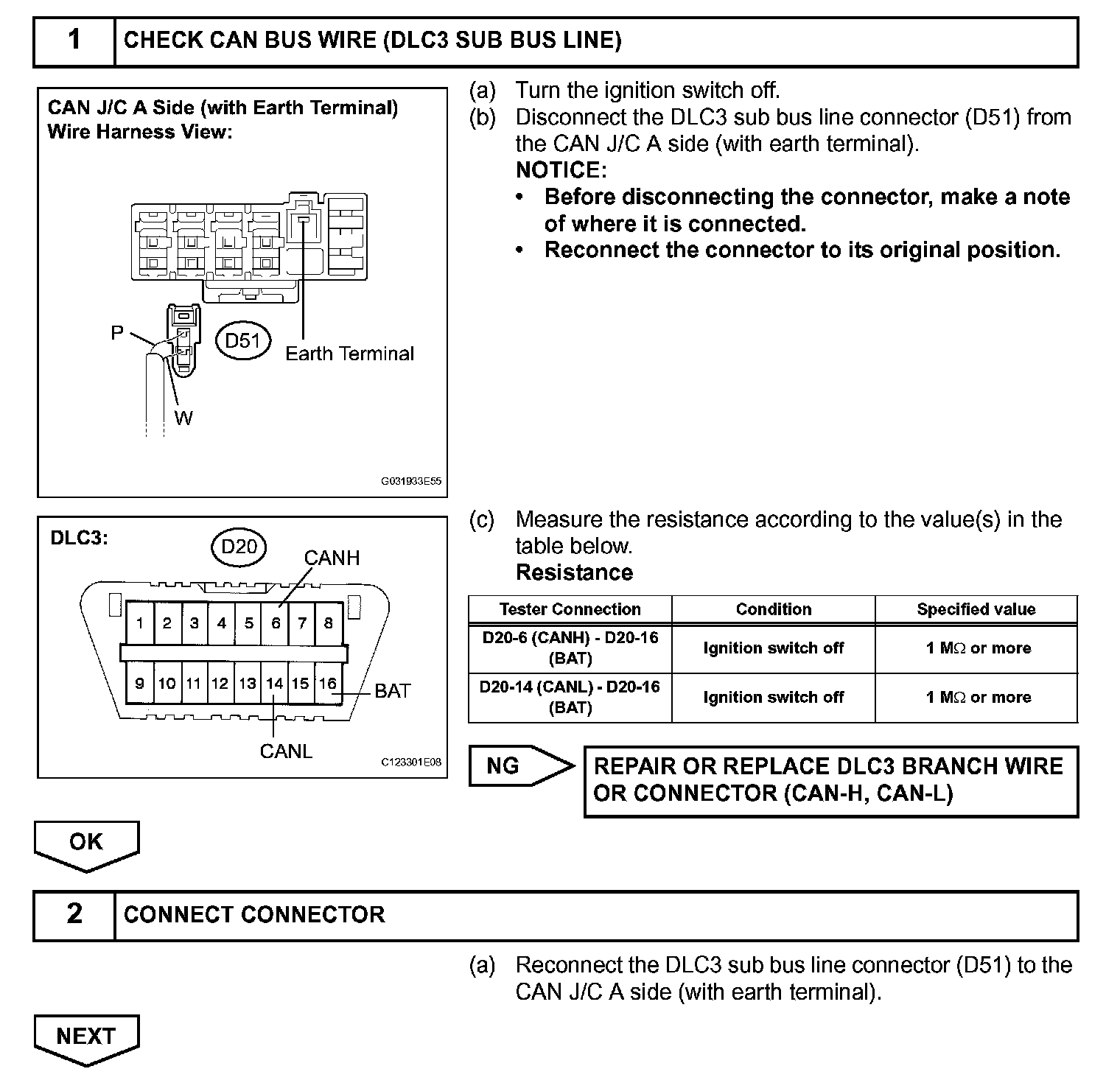

Step 1-2:

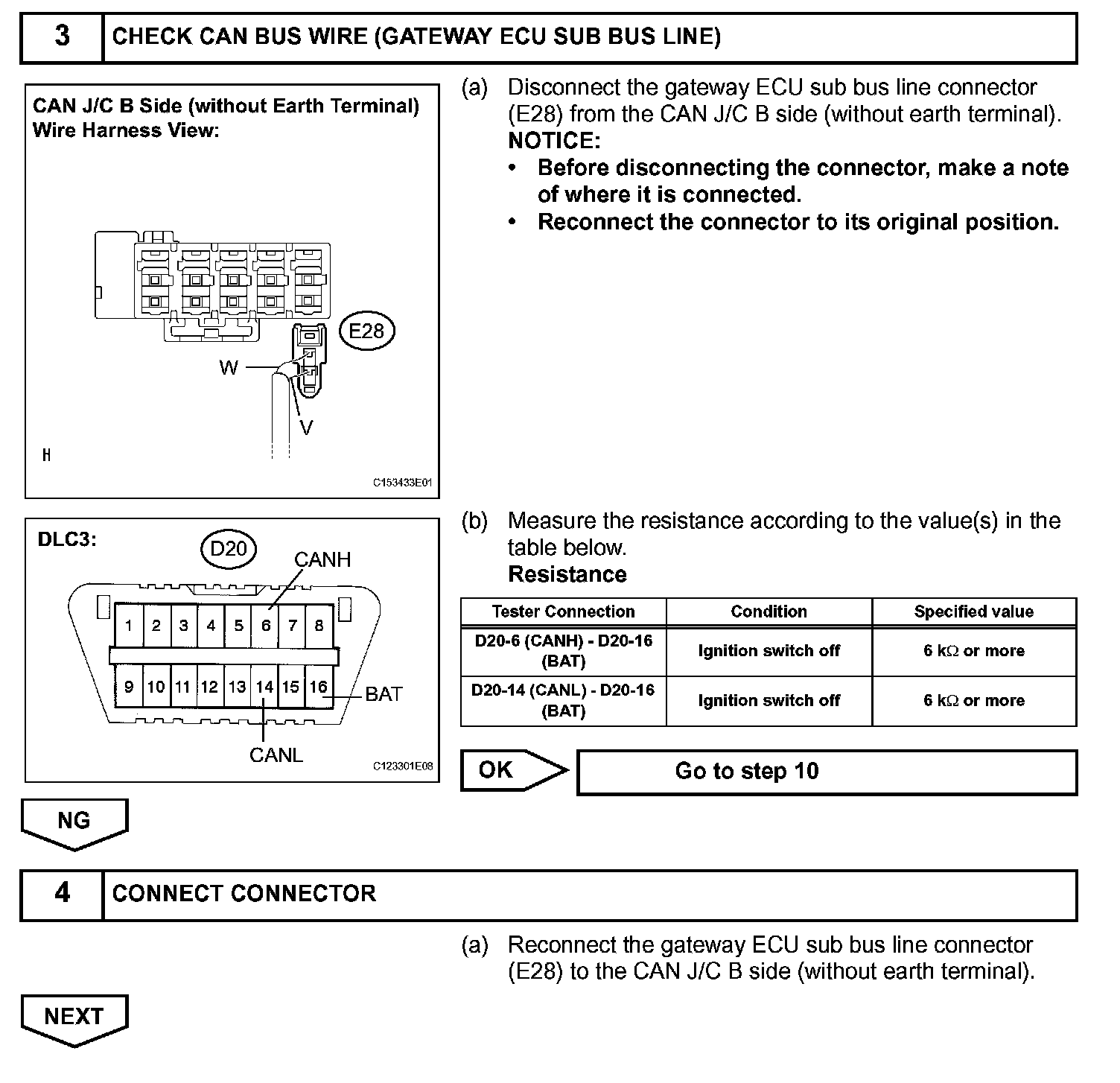

Step 3-4:

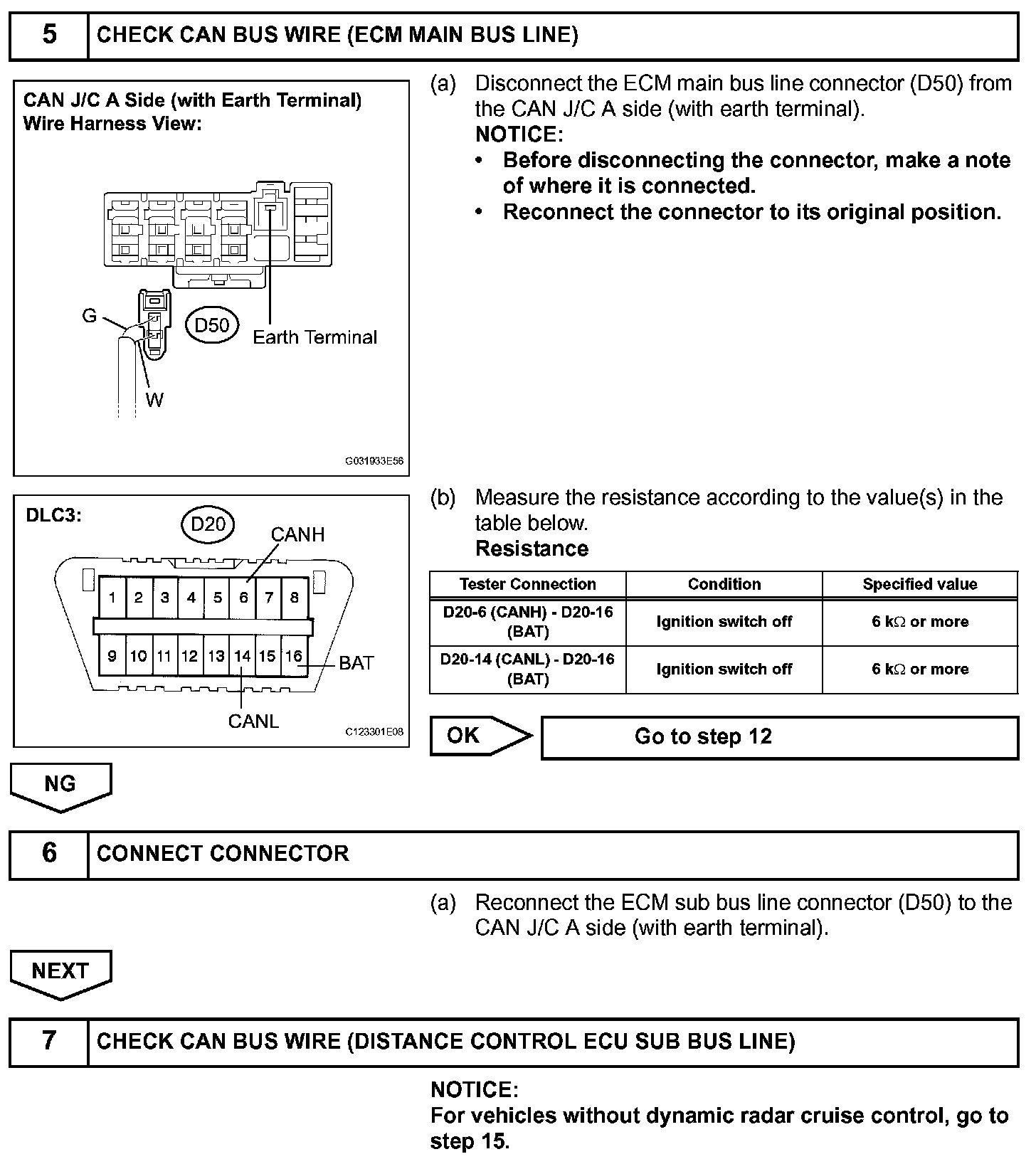

Step 5-7:

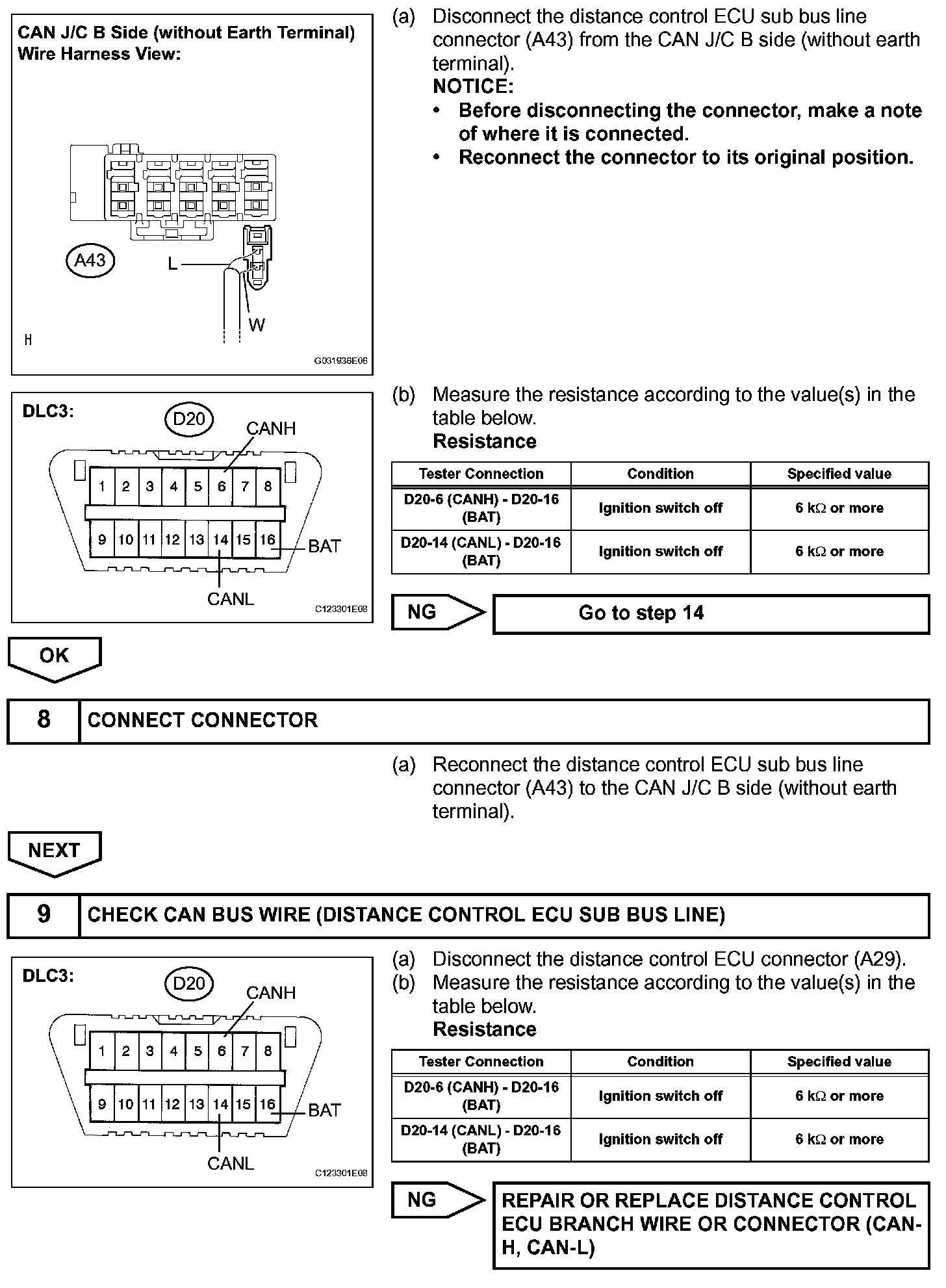

Step 7(Continued)-9:

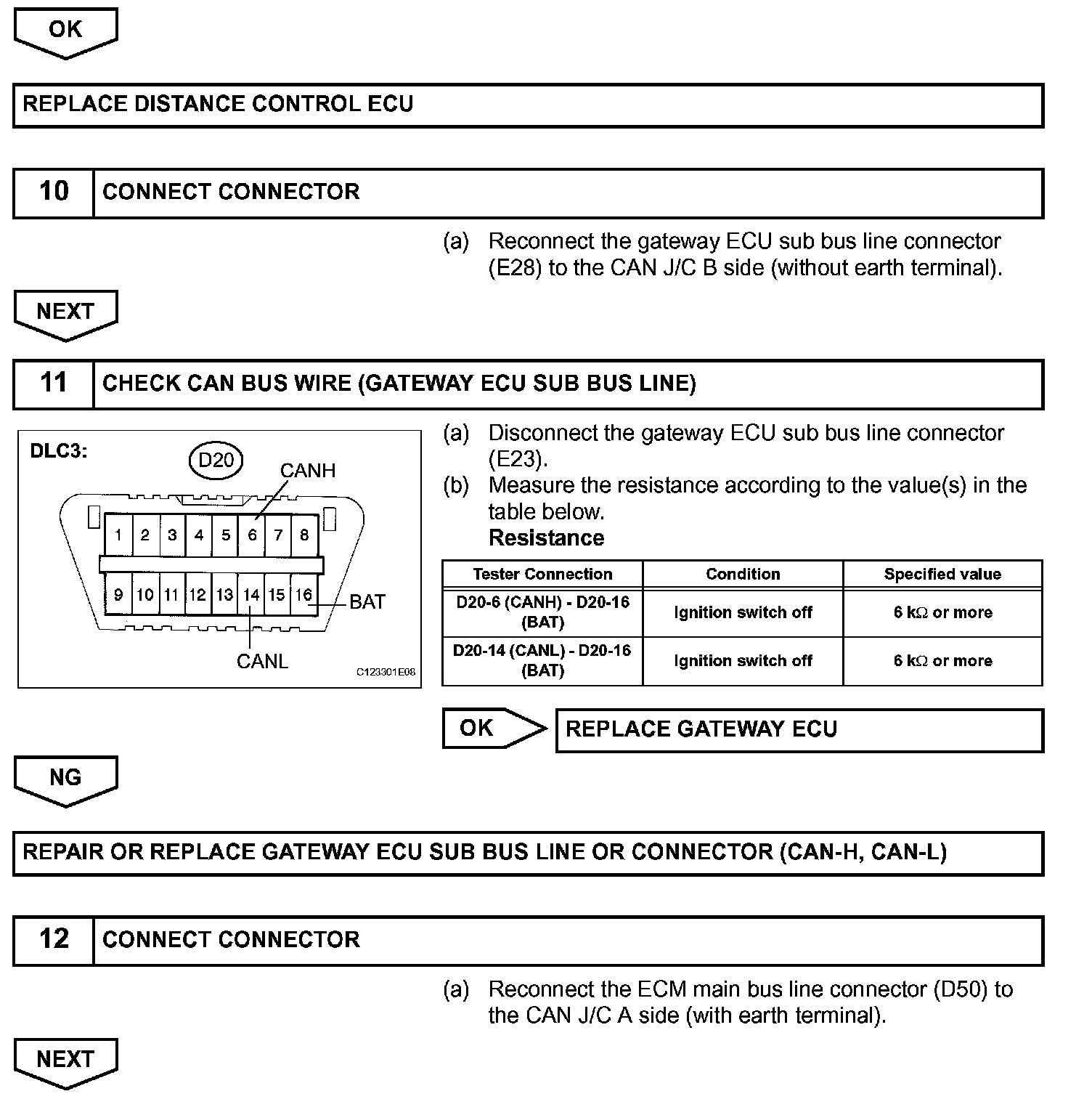

Step 9(Continued)-12:

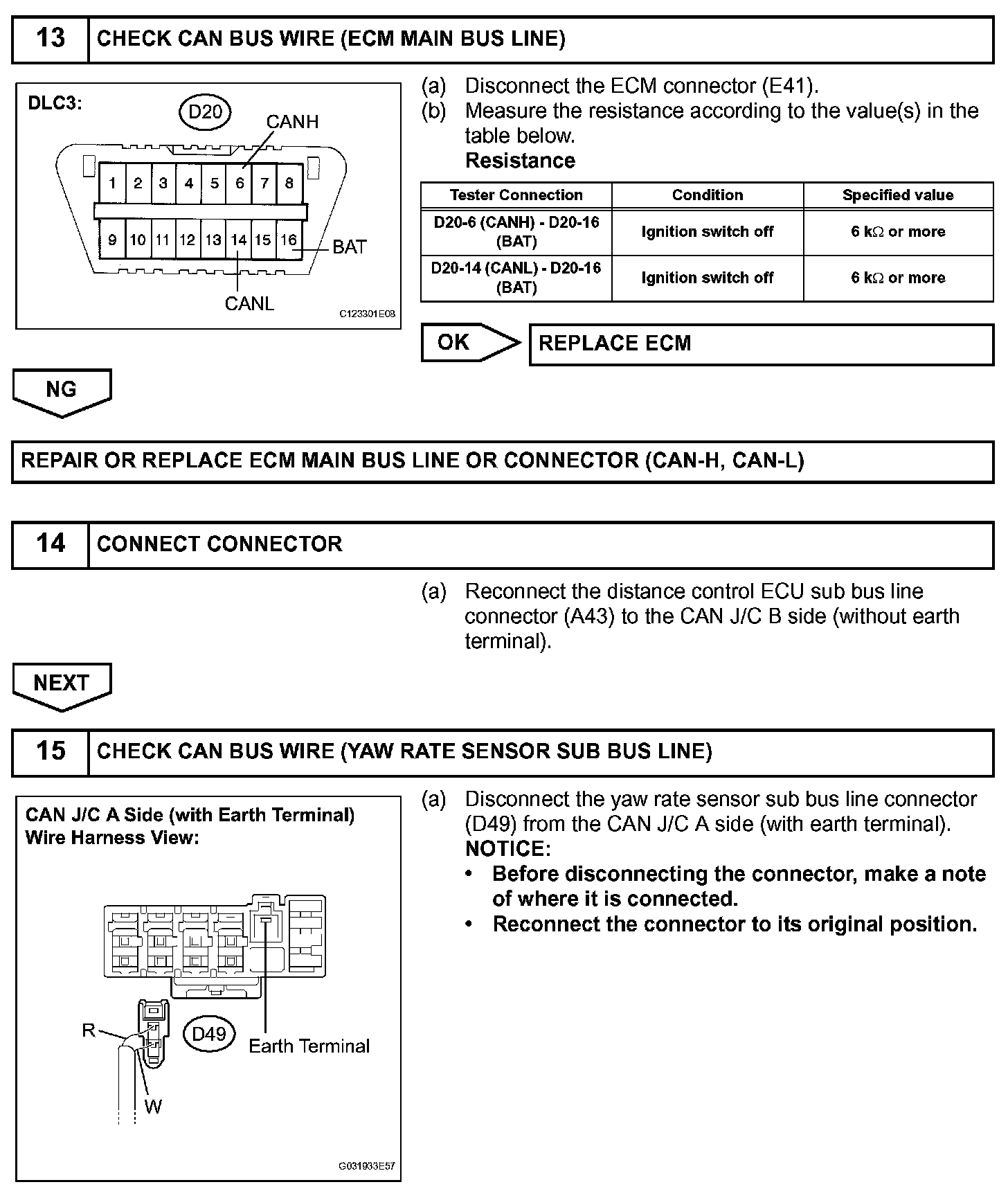

Step 13-15:

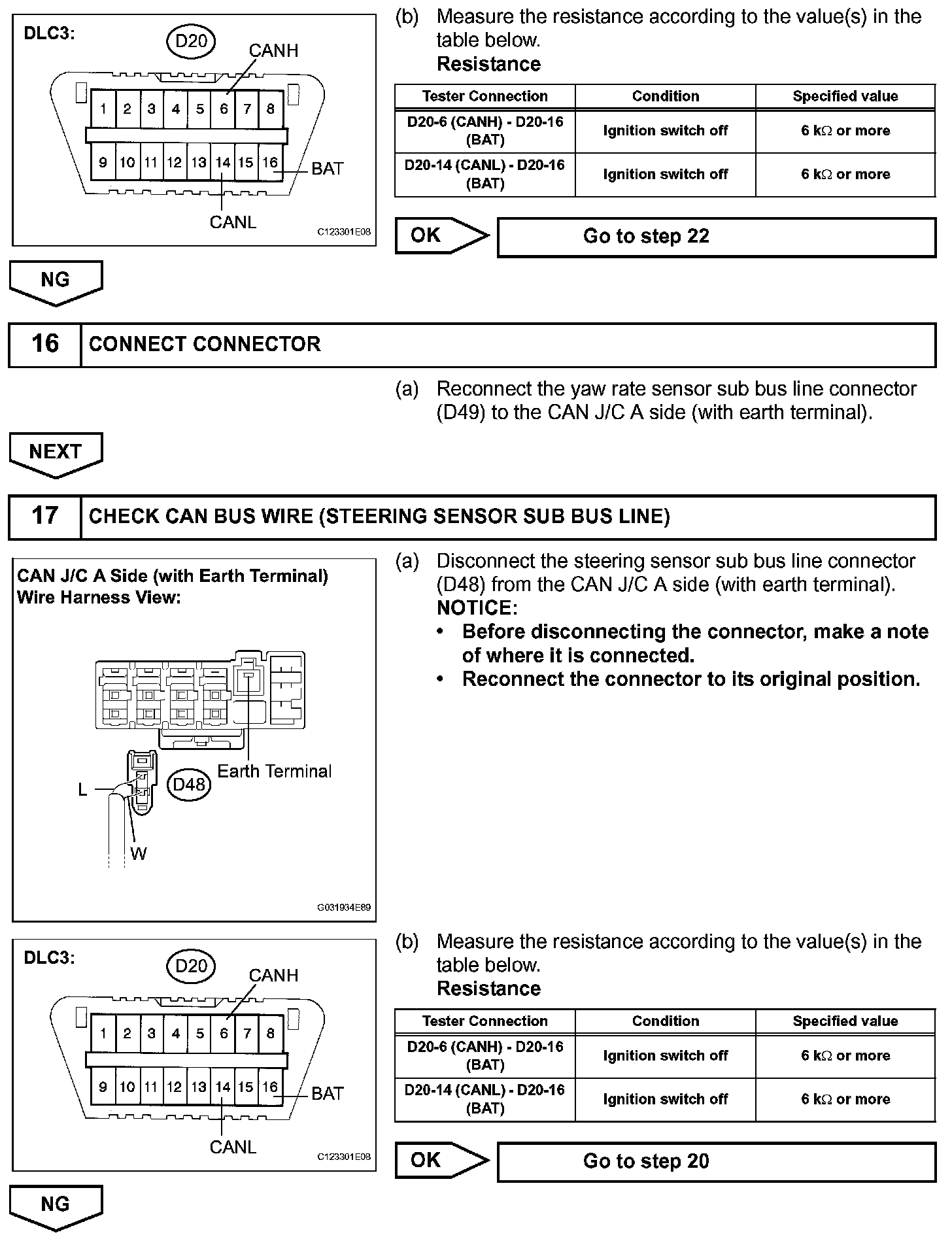

Step 15(Continued)-17:

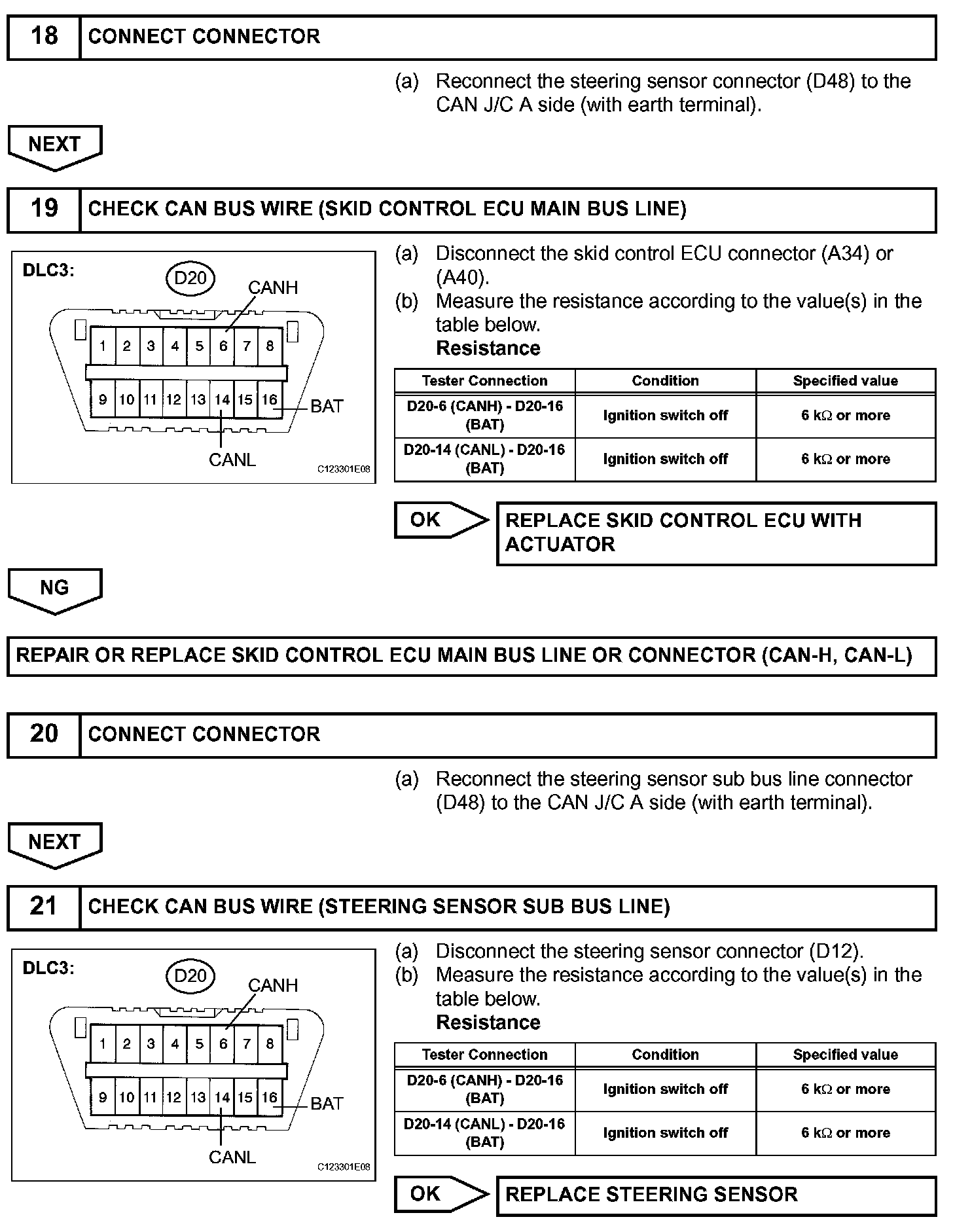

Step 18-21:

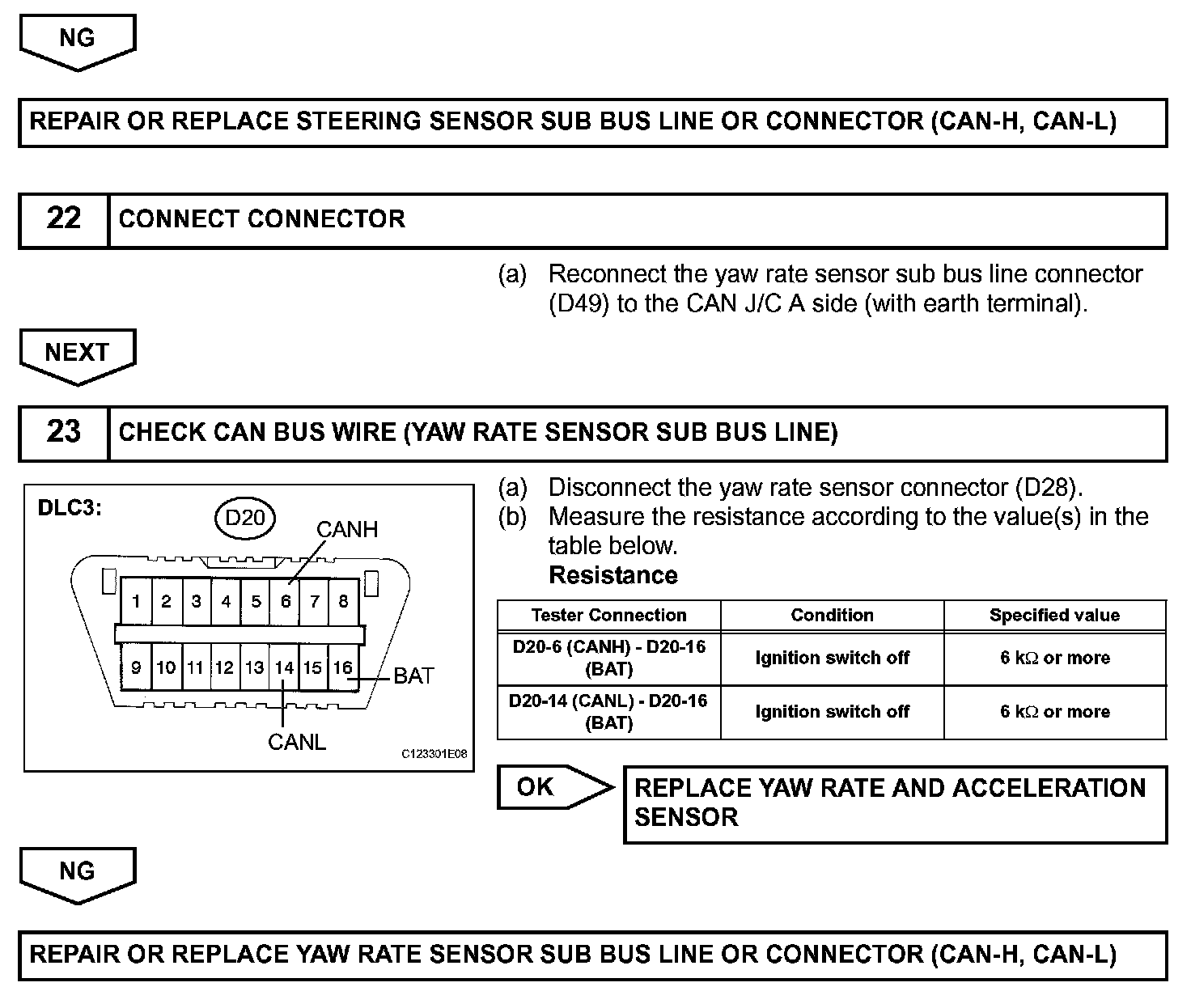

Step 21(Continued)-23:
INSPECTION PROCEDURE
