Check CAN Bus Lines For Short Circuit

Check CAN Bus Lines for Short Circuit

DESCRIPTION

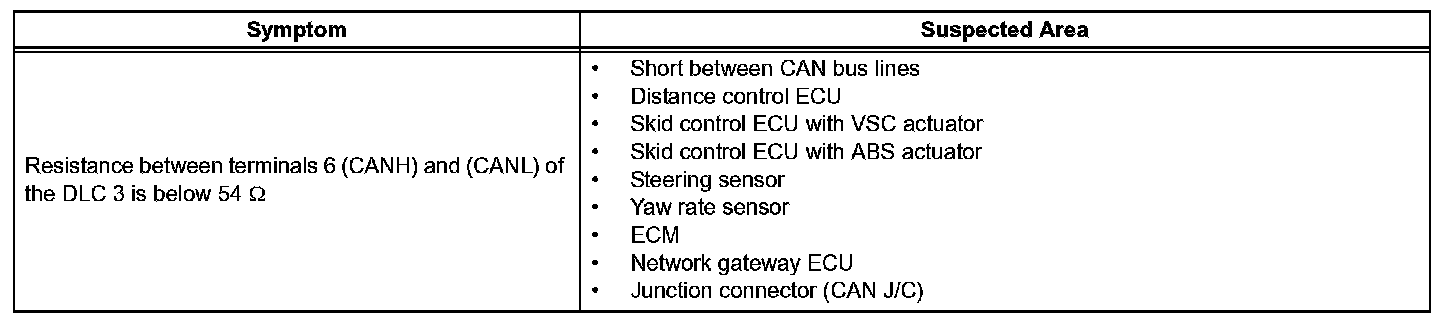

There may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 ohms.

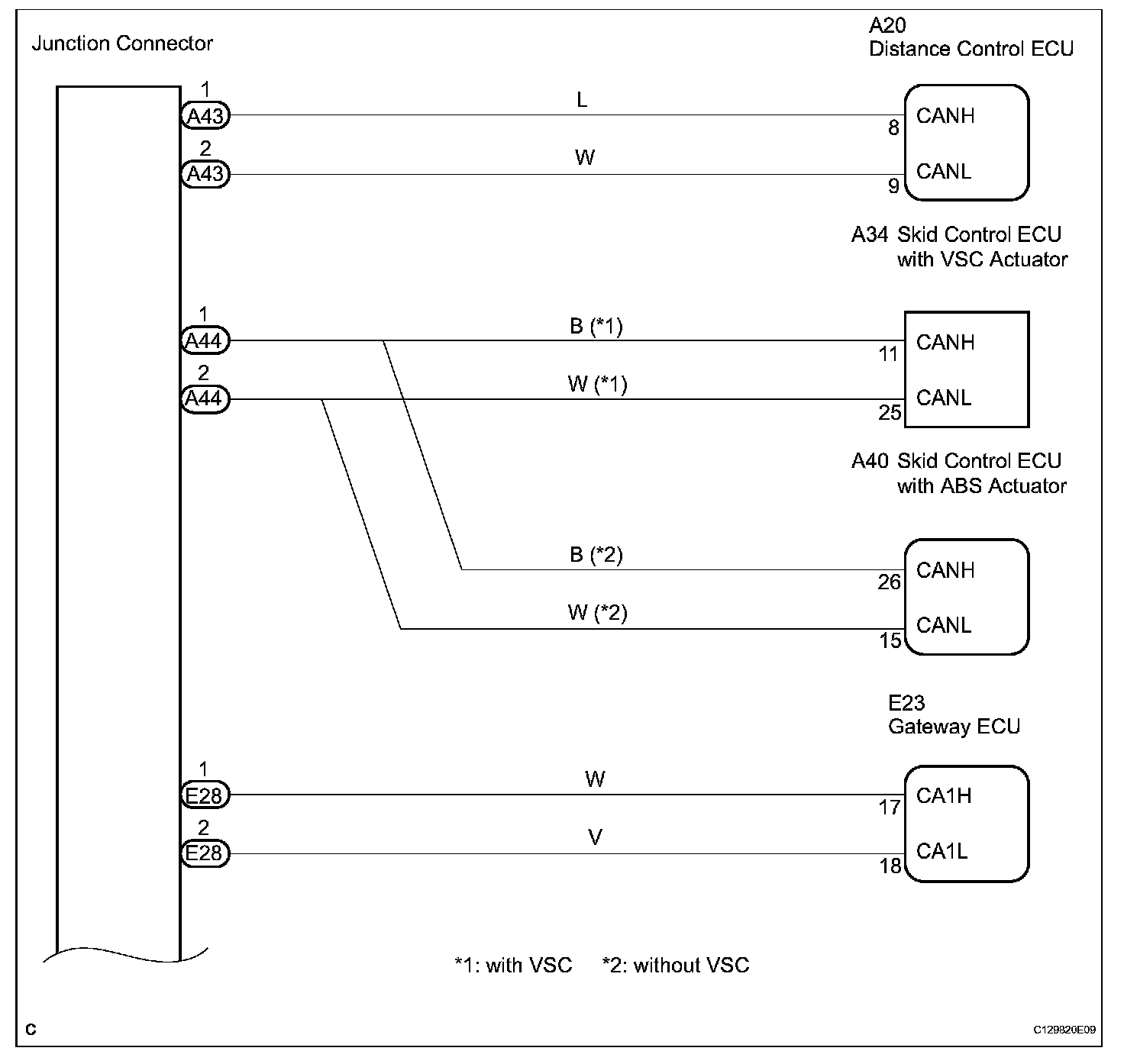

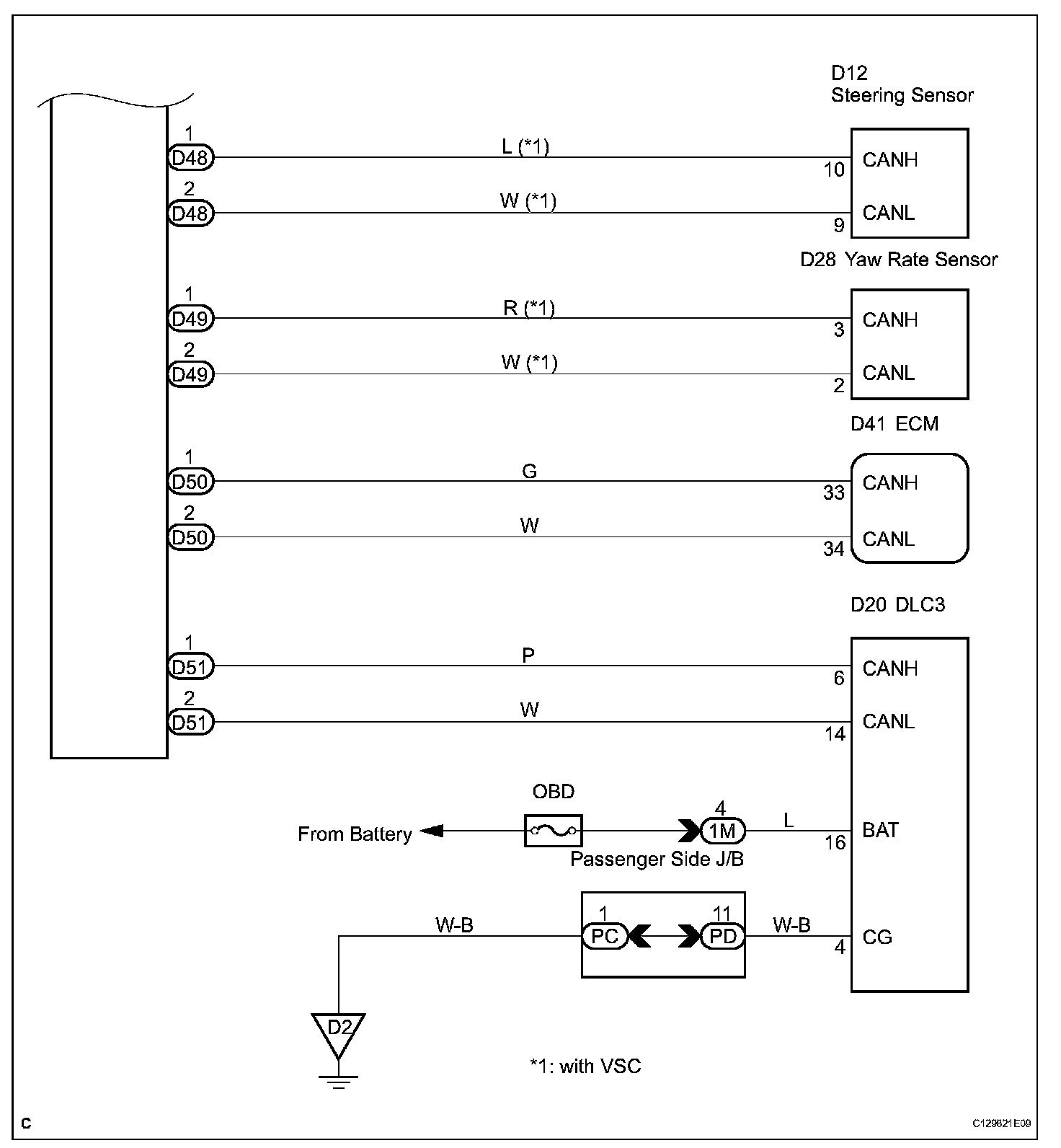

Wiring Diagram (Part 1):




Wiring Diagram (Part 2):

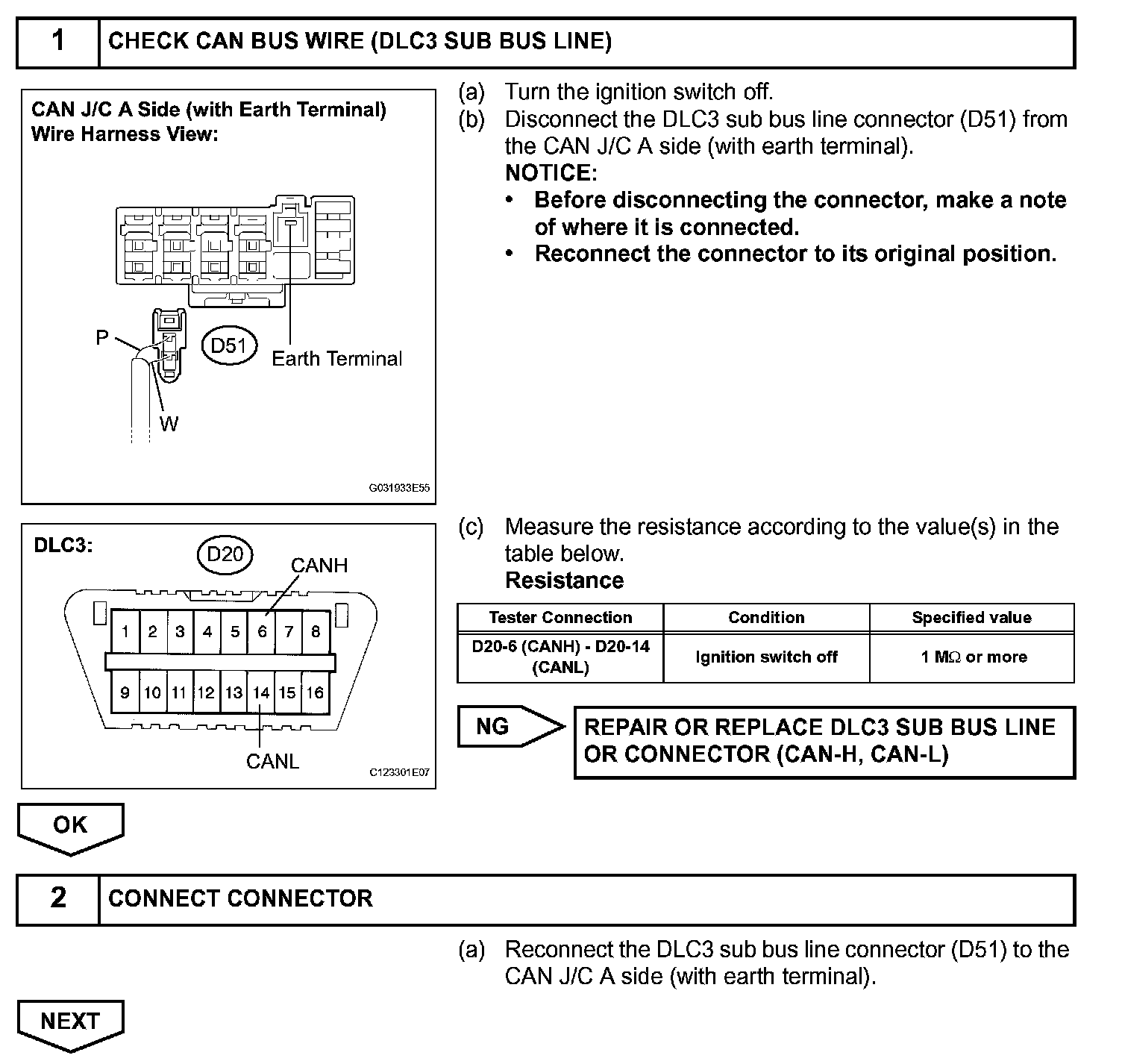

Step 1-2:

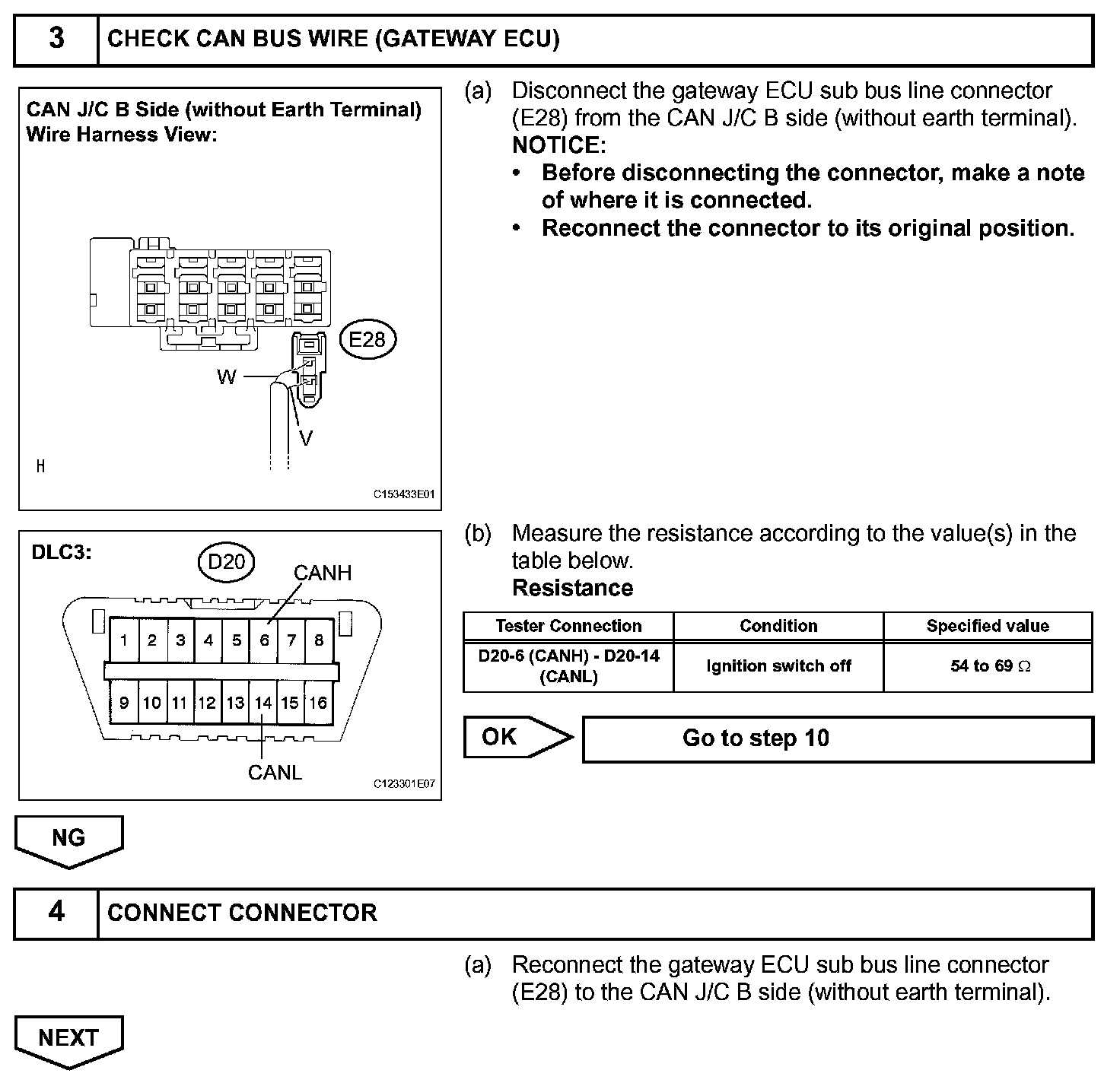

Step 3-4:

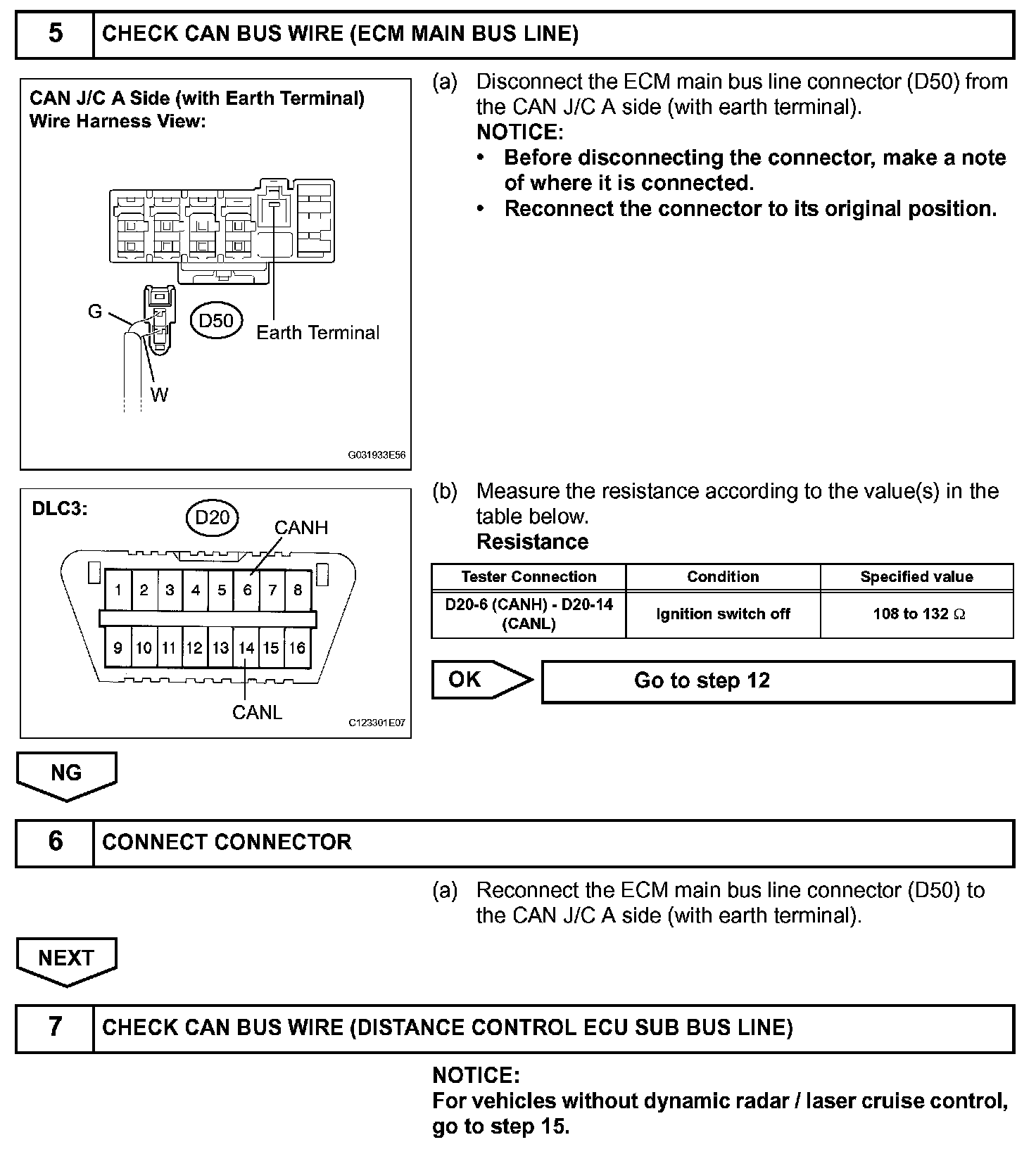

Step 5-7:




Step 7(Continued)-9:

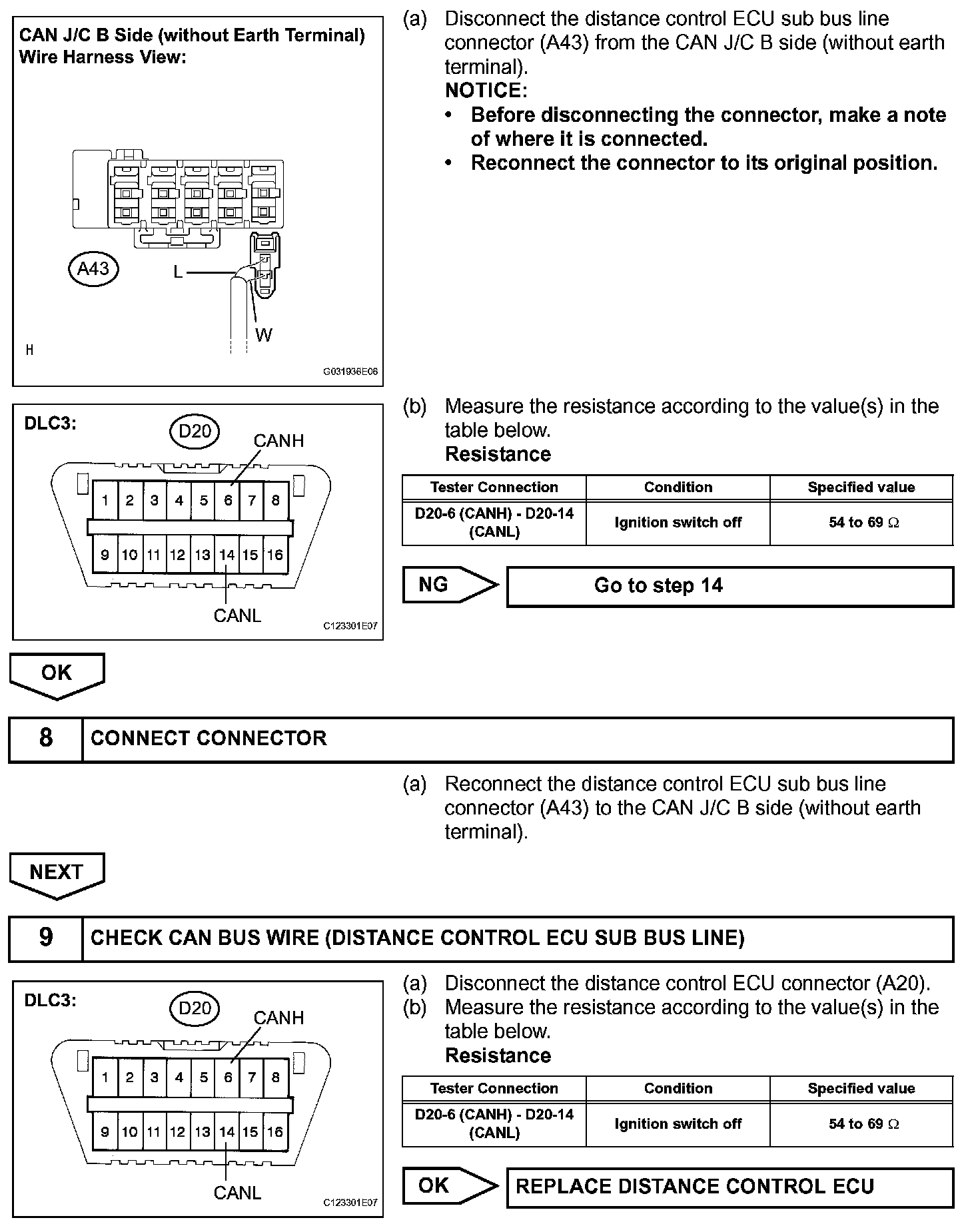

Step 9(Continued)-12:

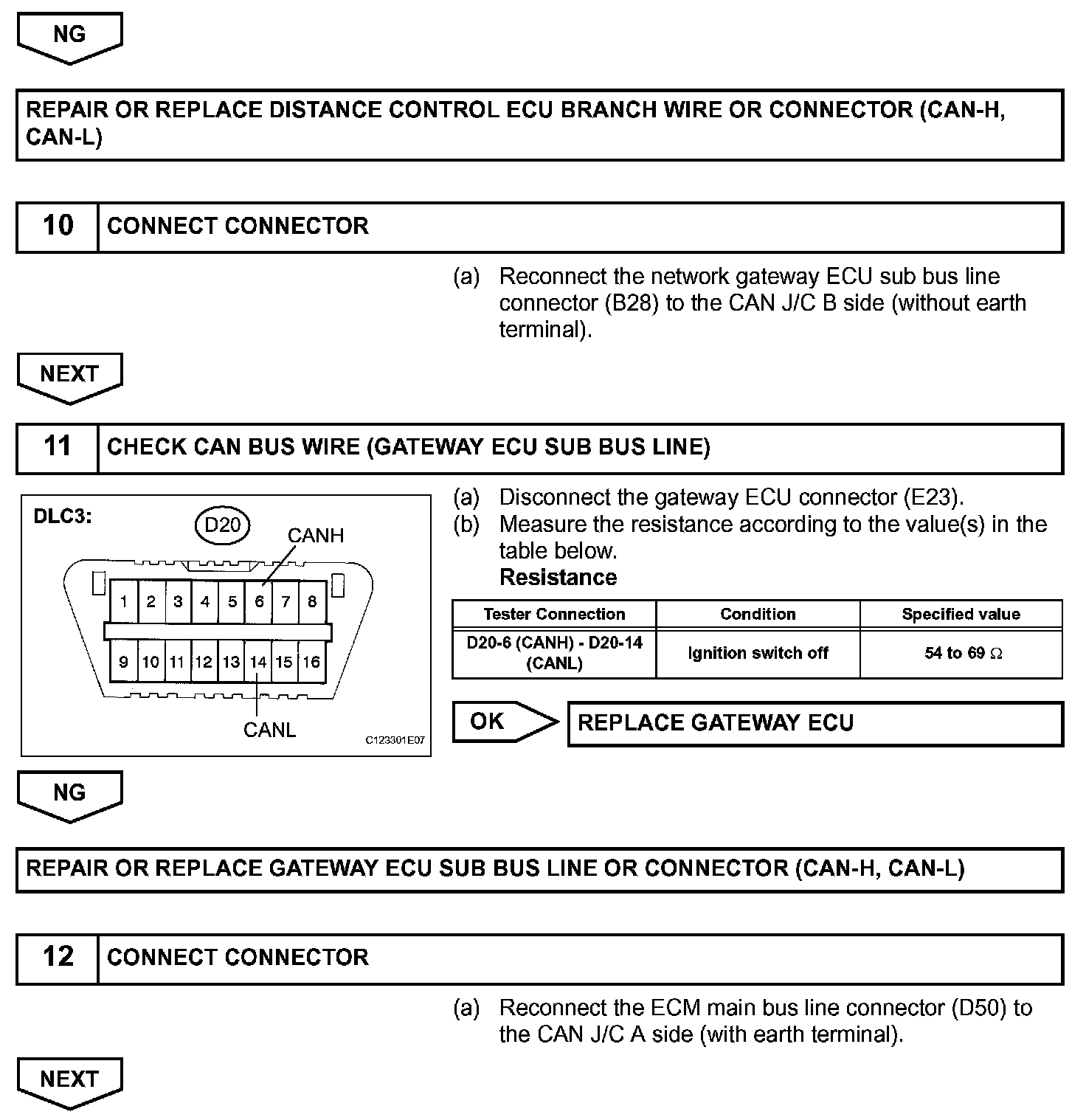

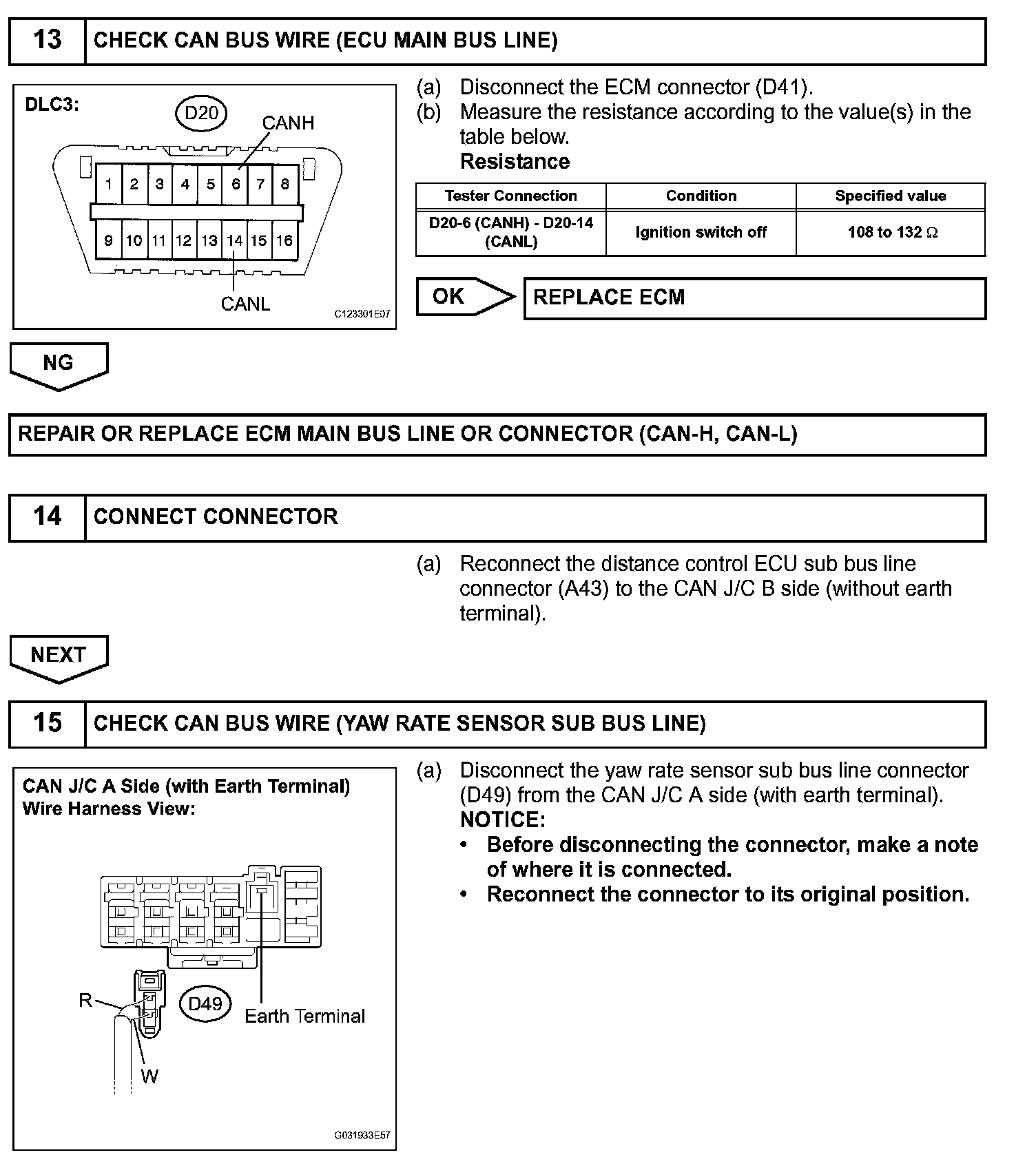

Step 13-15:

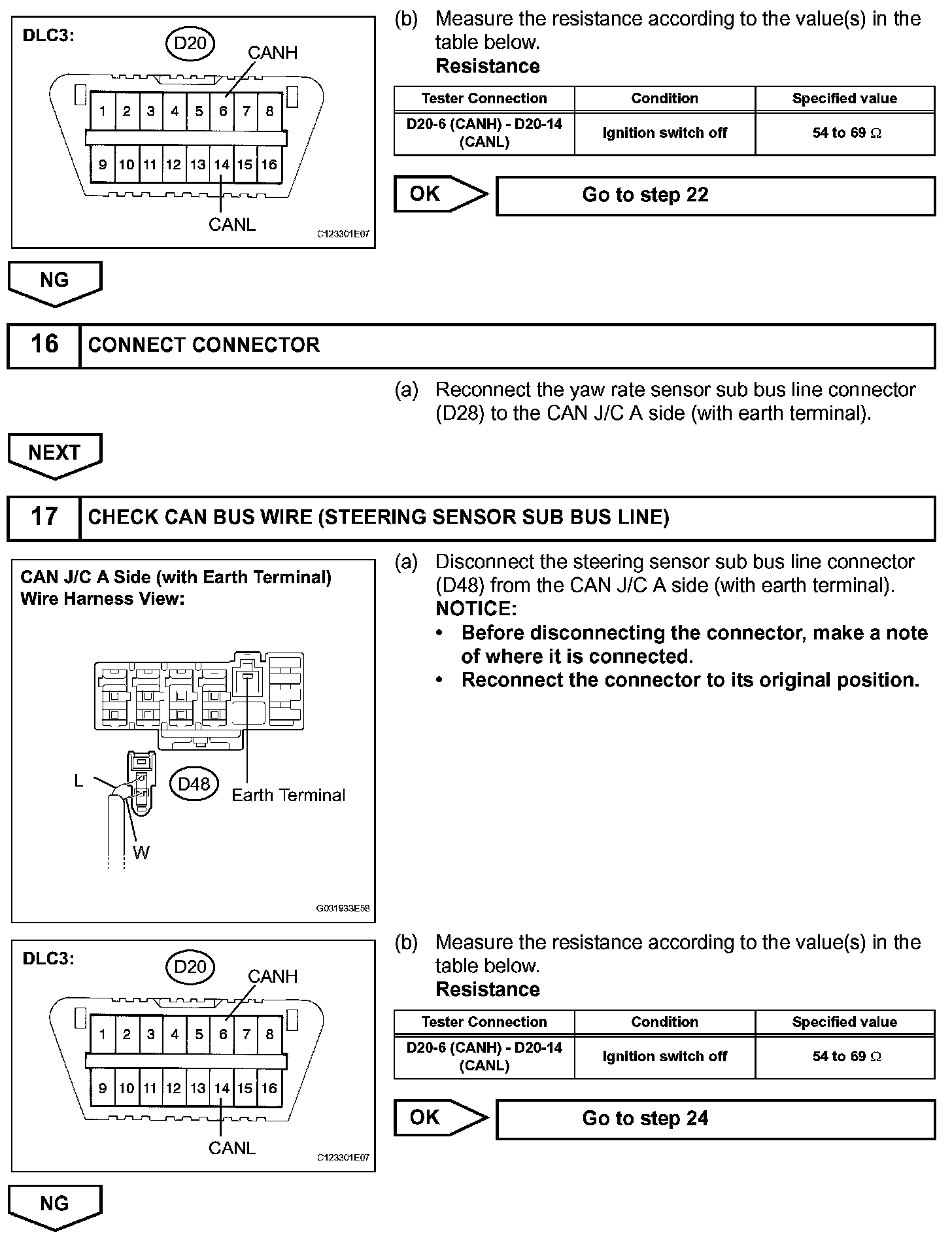

Step 15(Continued)-17:

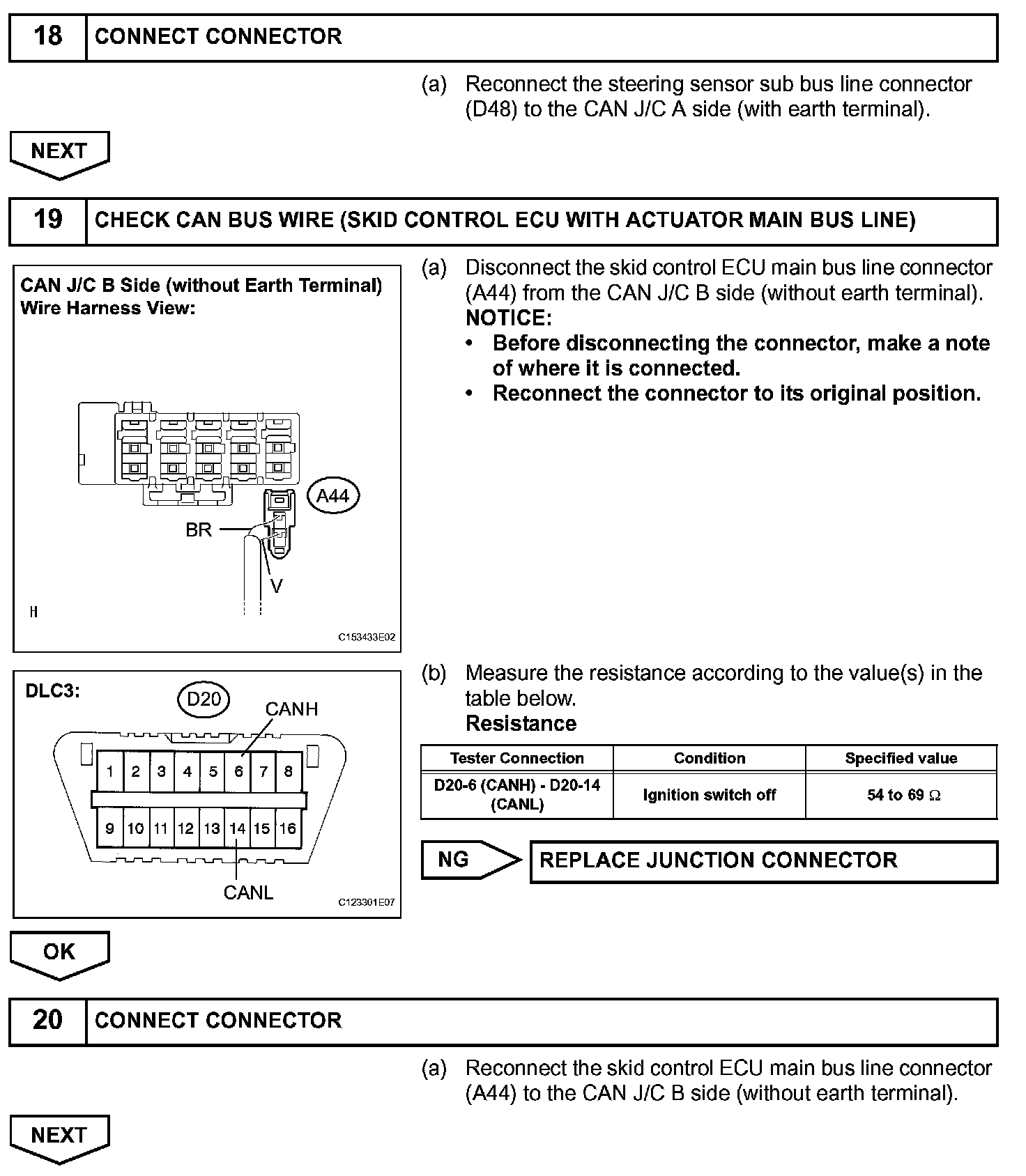

Step 18-20:

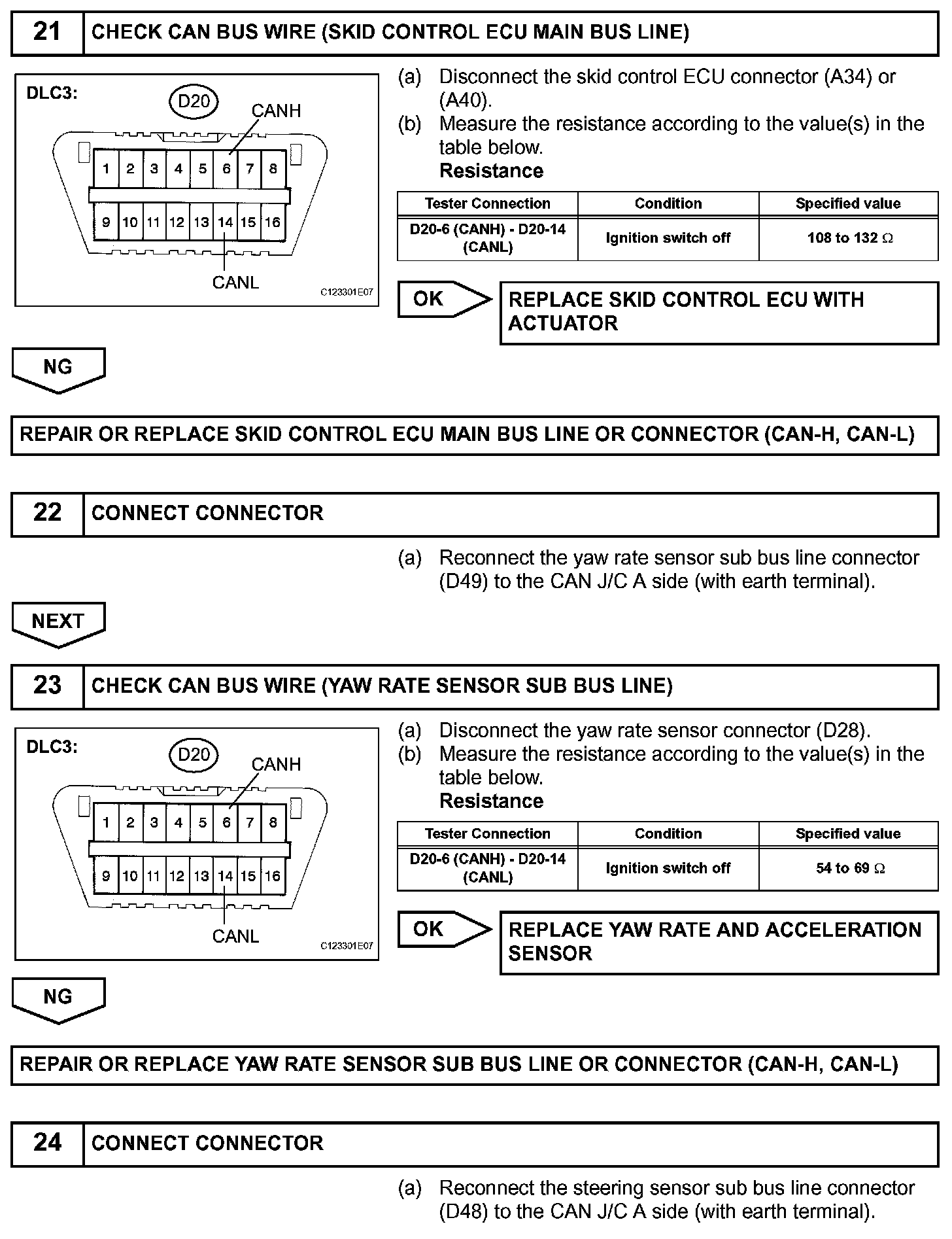

Step 21-24:

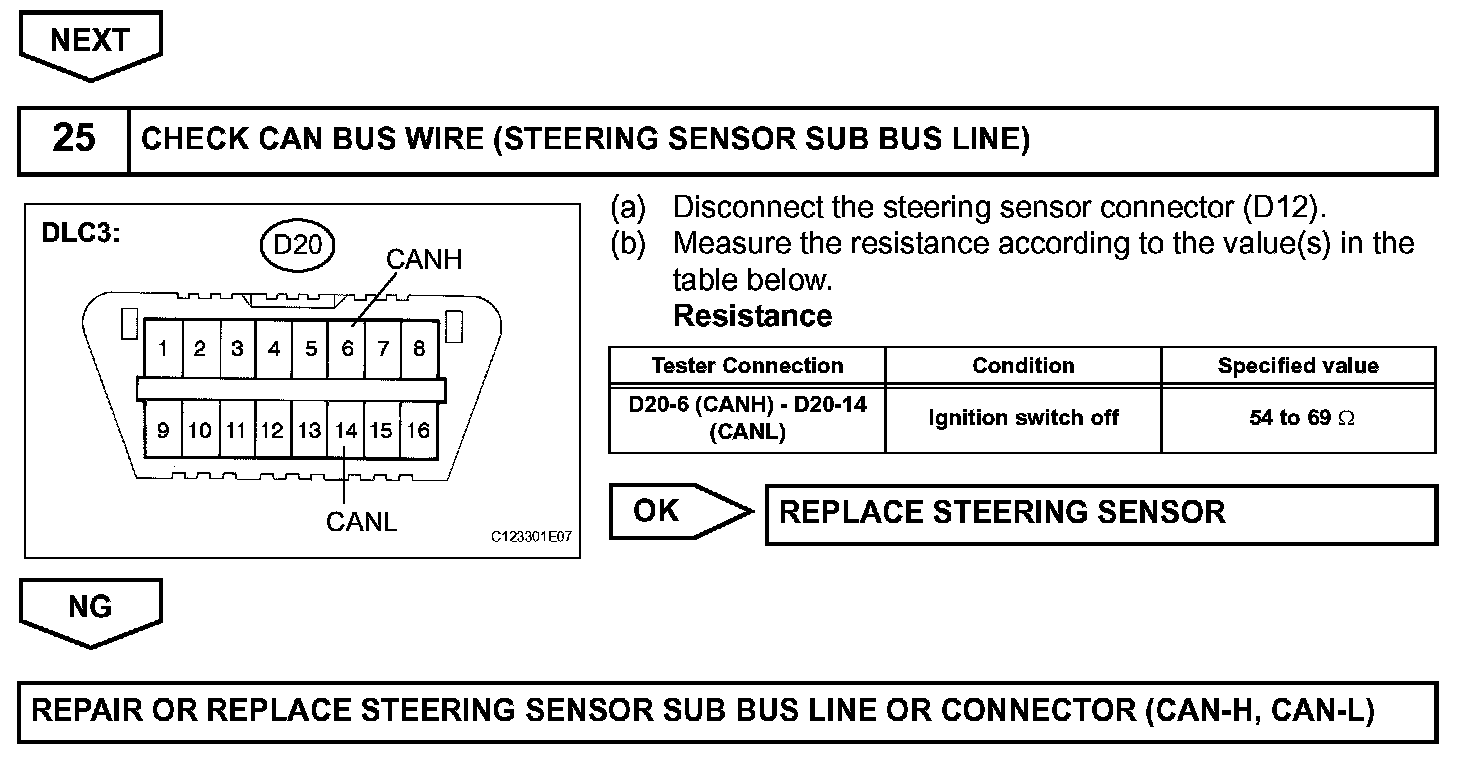

Step 24(Continued)-25:
