Transmission Control Switch Circuit

Transmission Control Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (first range) and "5" (fifth range).

Shifting up "+" once raises one shift range position, and shifting down "2 lowers one shift range position.

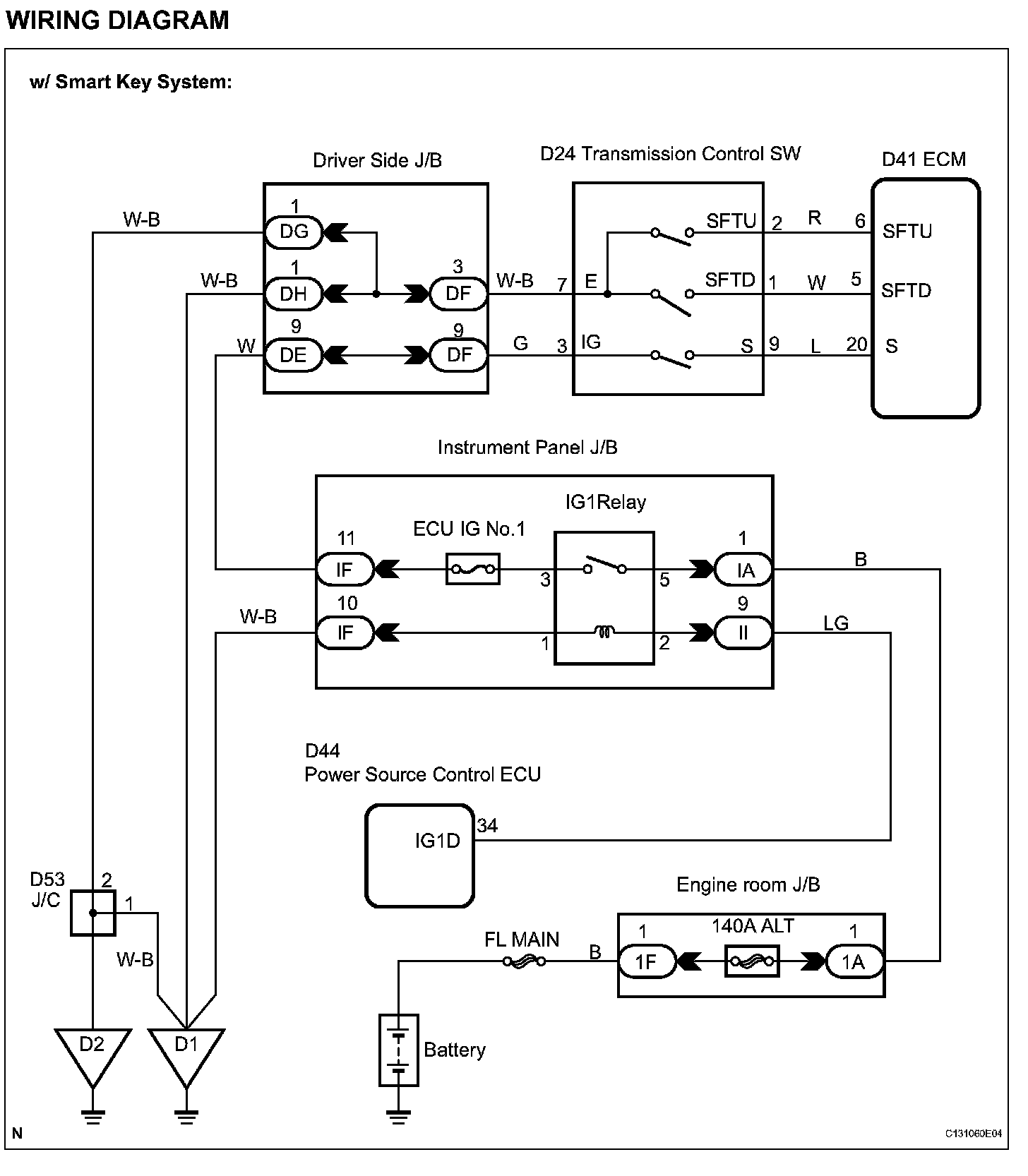

WIRING DIAGRAM (Part 1):

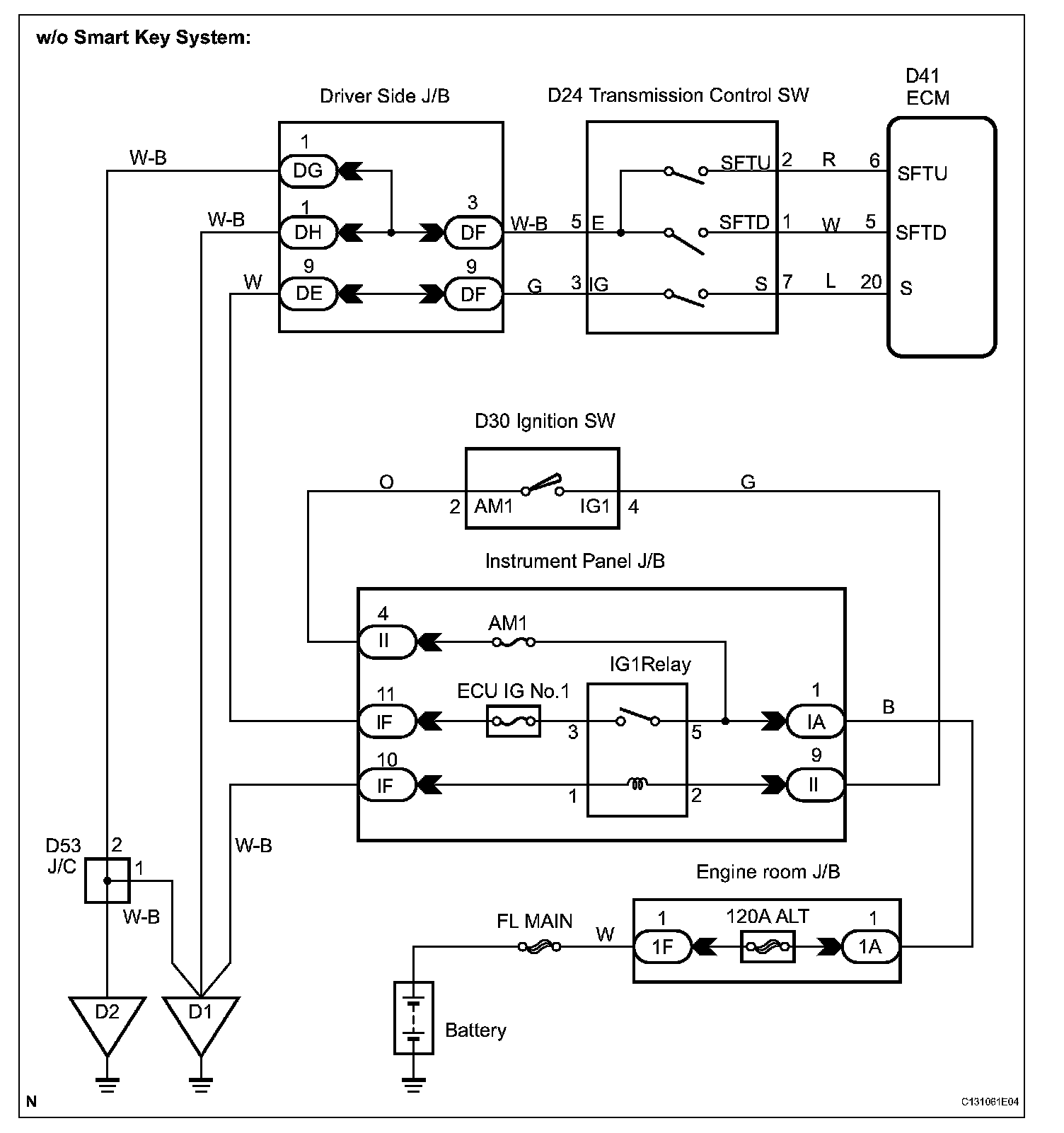

WIRING DIAGRAM (Part 2):

INSPECTION PROCEDURE

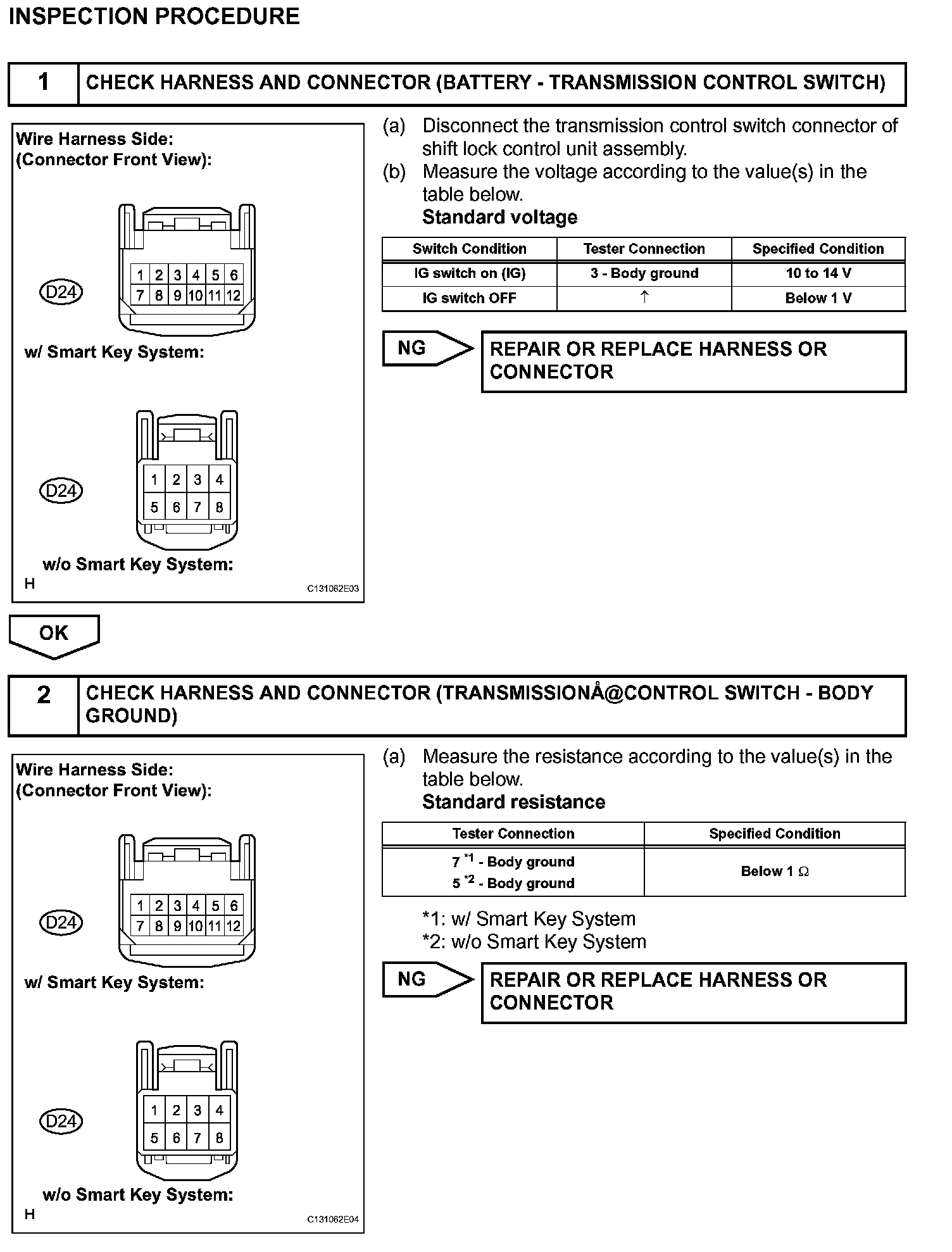

Steps 1-2(Part 1):

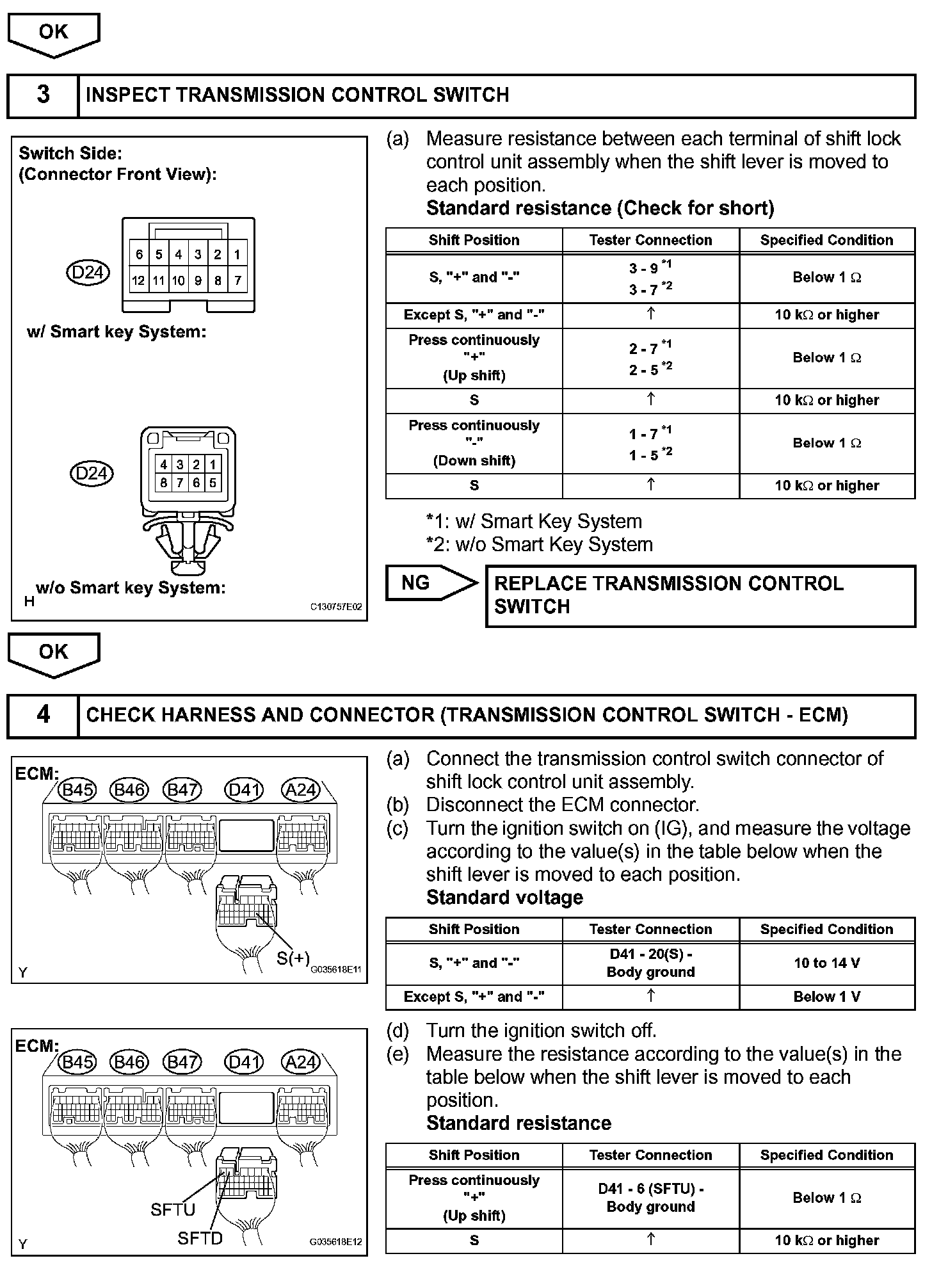

Steps 2(Part 2)-4(Part 1):

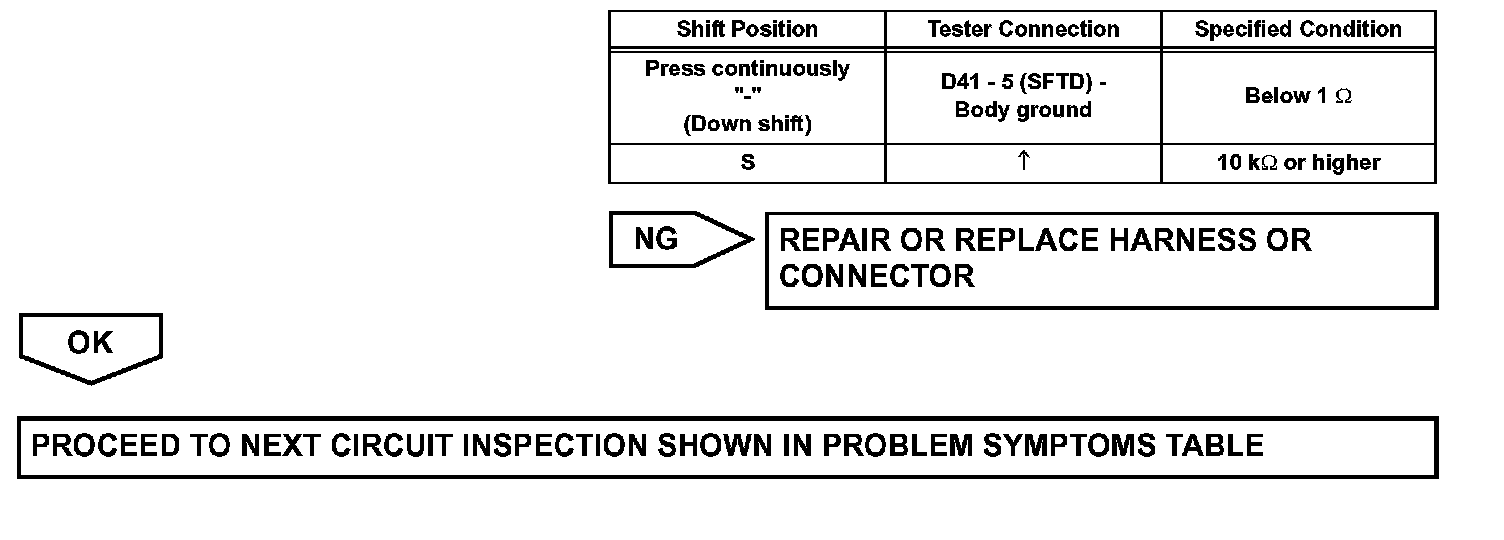

Step 4(Part 2):
