Scan Tool Testing and Procedures

DATA LIST / ACTIVE TEST

HINT: By accessing the DATA LIST displayed by the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to shorten labor time.

1. DATA LIST FOR AIRBAG SENSOR ASSEMBLY CENTER
a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch on (IG).
c. Turn the tester on.
d. Enter the following menus: DIAGNOSIS / OBD / MOBD / SRS AIRBAG / DATA LIST.

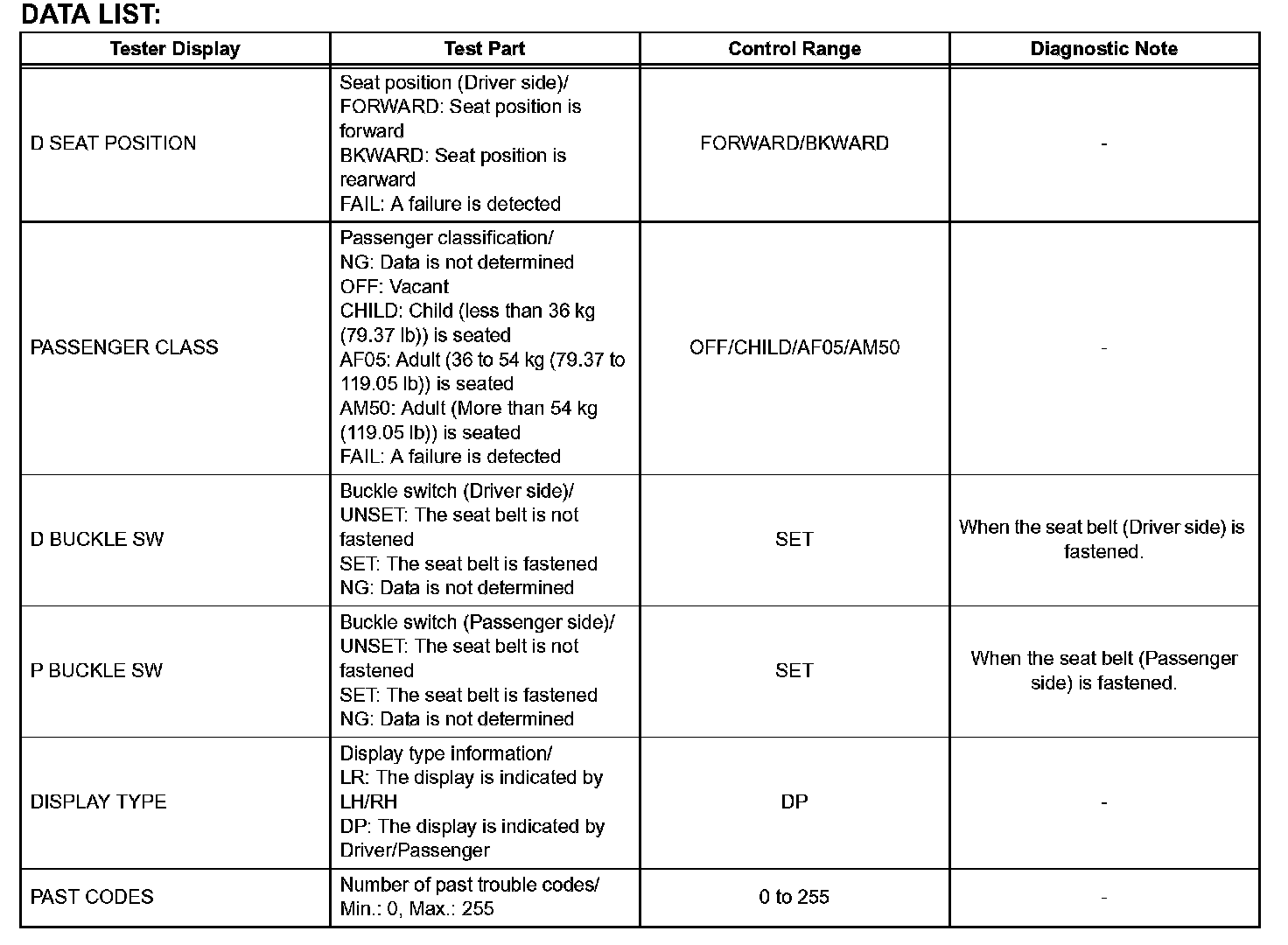

e. Check the values by referring to the table.
