Ignition Switch: Service and Repair

Engine Switch (w/ Smart Key System):




Engine Switch (w/ Smart Key System):

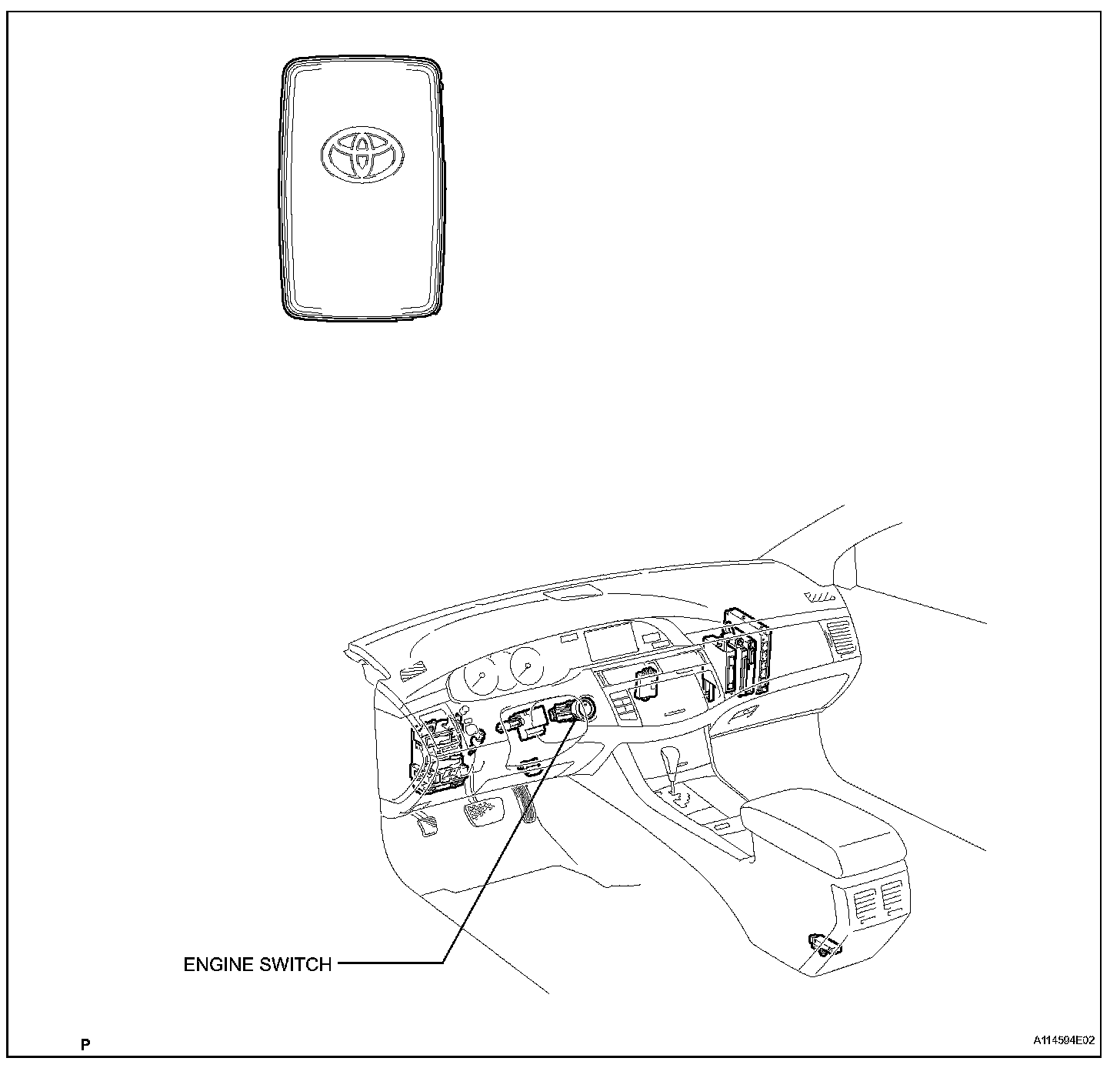

ENGINE SWITCH (w/ Smart Key System)

REMOVAL

1. PRECAUTION
Refer to Restraint Systems; Service Precautions.
2. DISCONNECT BATTERY NEGATIVE TERMINAL

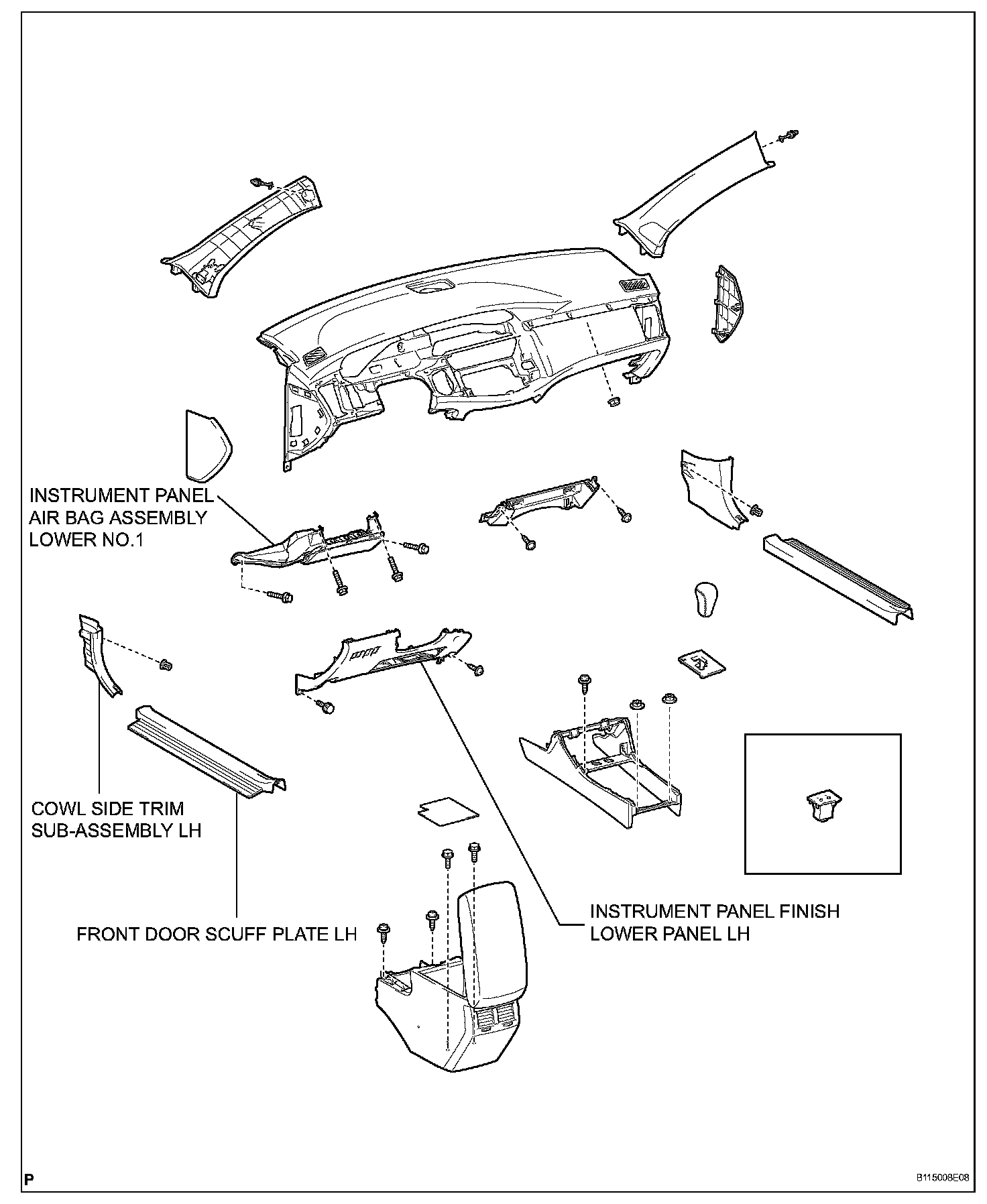

3. REMOVE FRONT DOOR SCUFF PLATE LH
4. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
6. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1

7. REMOVE ENGINE SWITCH
a. Disconnect the engine switch connector.

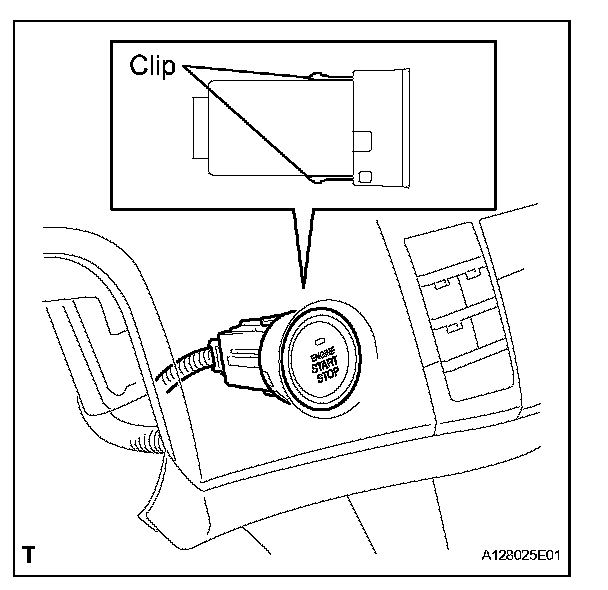

b. Disengage the 2 clips and remove the switch.

INSTALLATION

1. INSTALL ENGINE SWITCH
a. Install the engine switch.
b. Connect the engine switch connector.

2. INSTALL INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
3. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
5. INSTALL FRONT DOOR SCUFF PLATE LH
6. CONNECT BATTERY NEGATIVE TERMINAL
7. INSPECT SRS WARNING LIGHT

8. PERFORM INITIALIZATION
a. Some systems need initialization when disconnecting the battery terminal.
