Certification ECU Power Source Circuit

Certification ECU Power Source Circuit

DESCRIPTION
This is the power source circuit of the certification ECU.

The certification ECU controls the following:
- Key verification confirmation
- Cabin and door oscillator control
- Entry door LOCK / UNLOCK request to the body ECU
- Steering LOCK / UNLOCK request
- Immobilizer SET / UNSET request to the ID code box

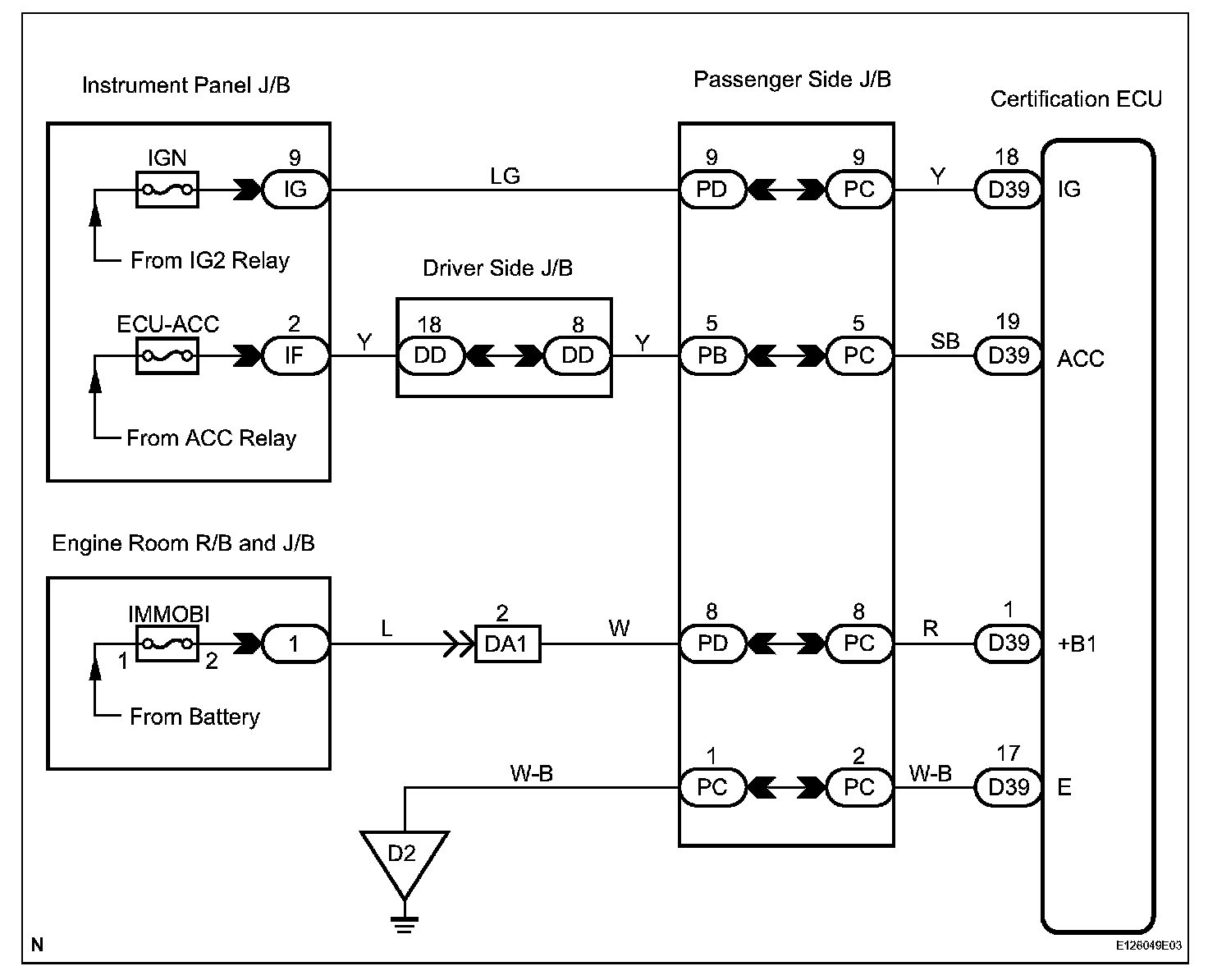

Wiring Diagram:





INSPECTION PROCEDURE

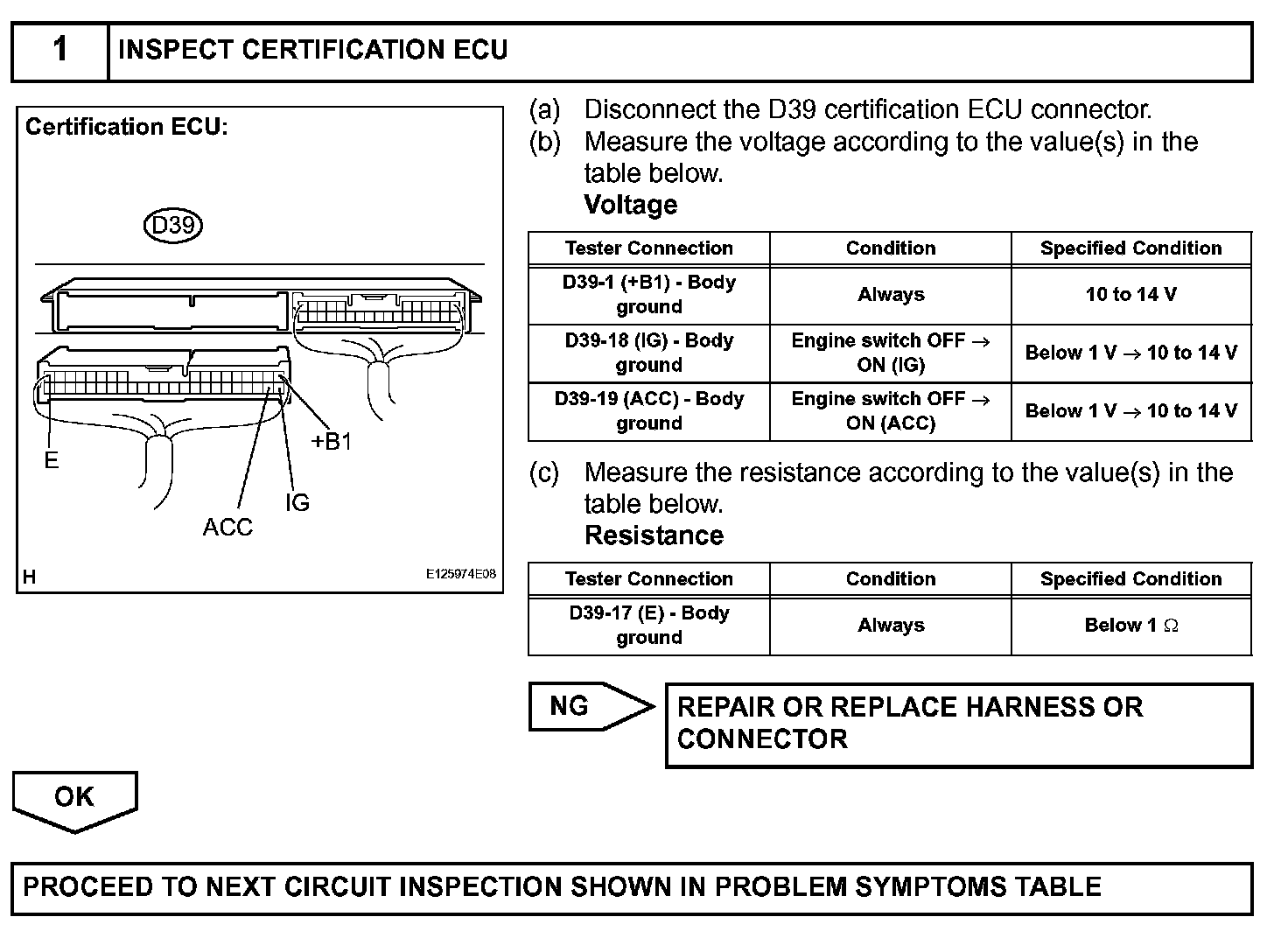

Step 1:
