Lock Switch Circuit
Lock Switch Circuit DESCRIPTION Lock switches (trigger switch) are built into the outside handles of each door. The certification ECU detects the conditions of the each lock switch.

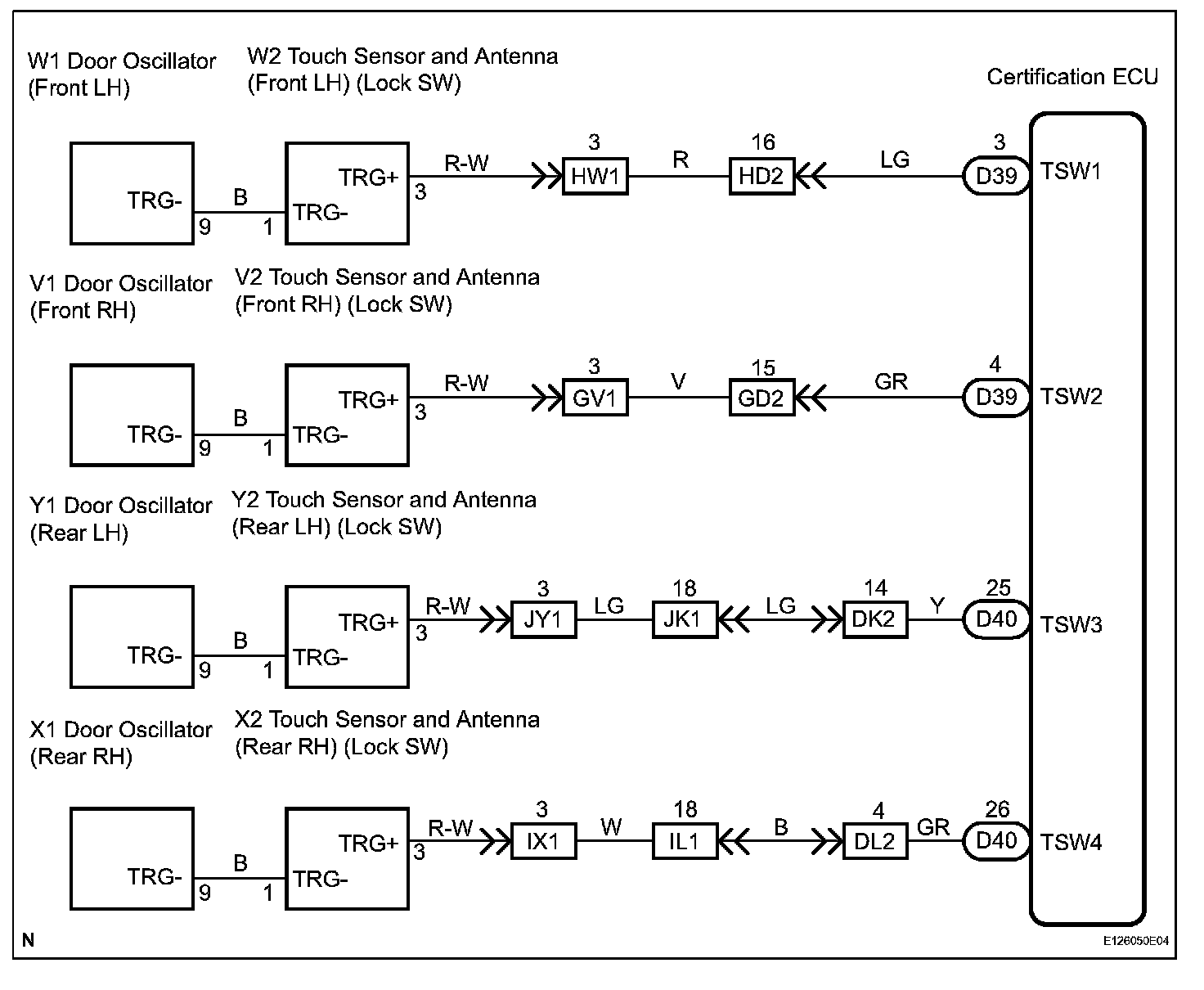

Wiring Diagram:

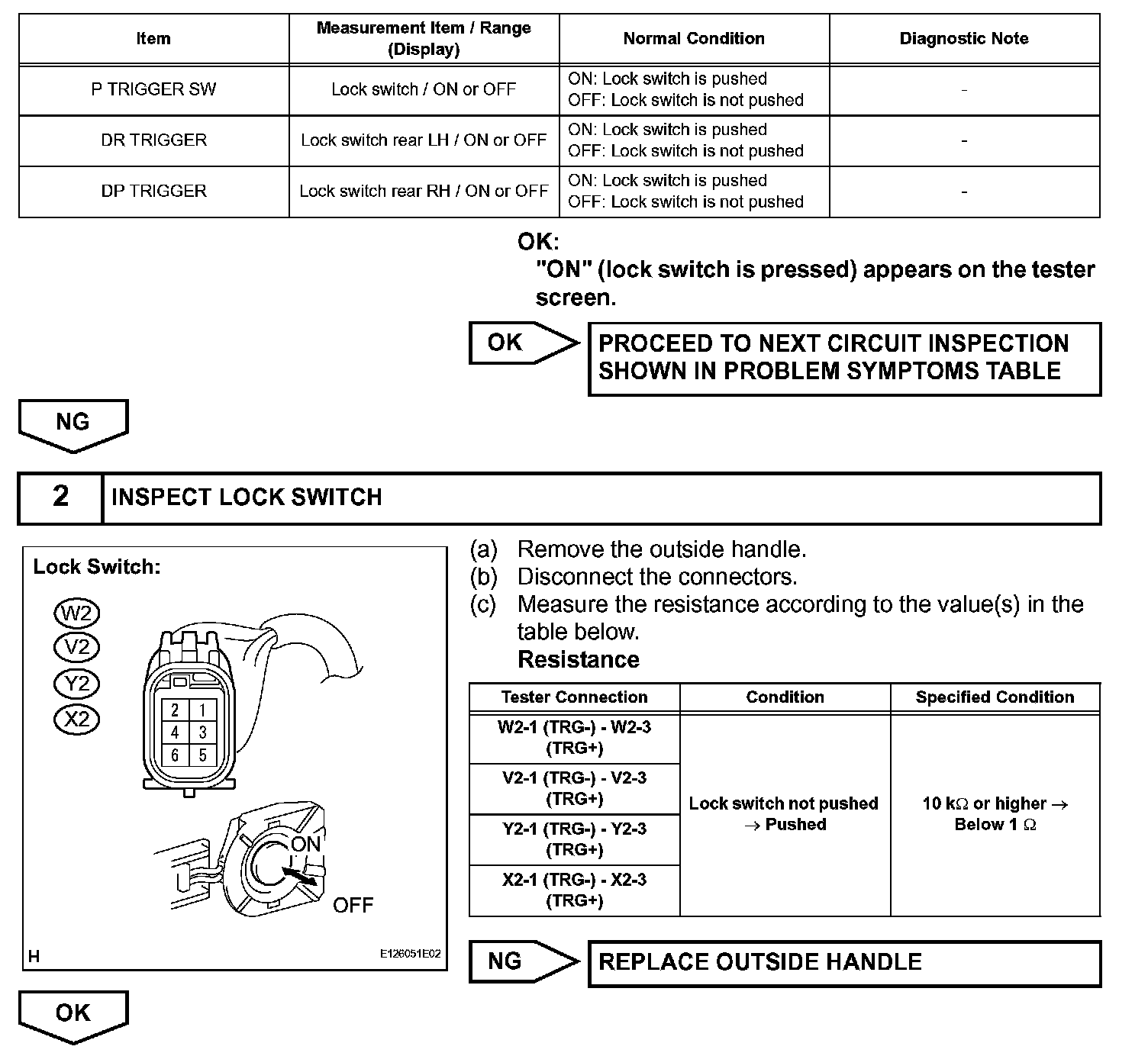

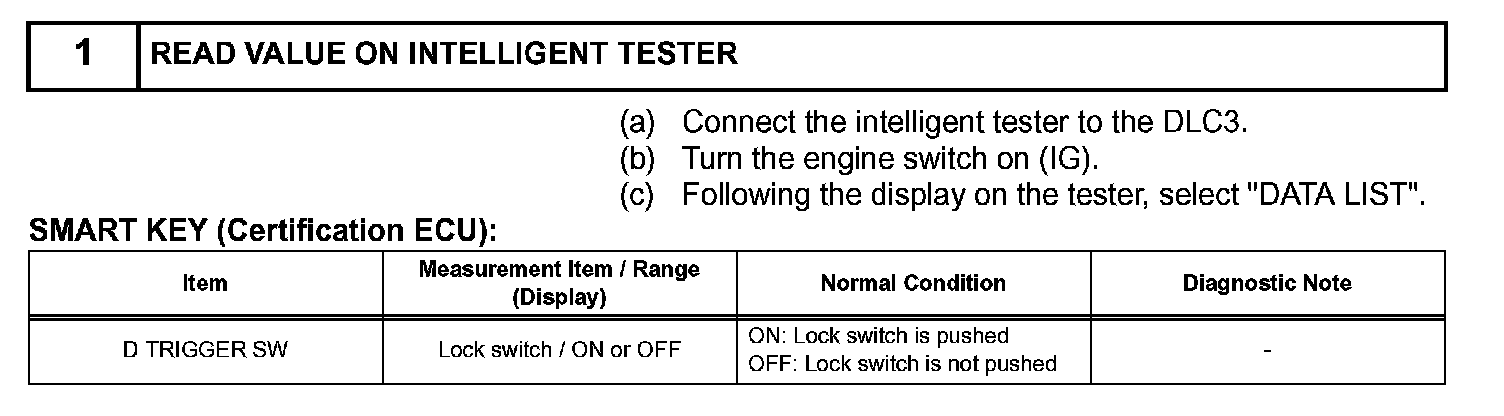

INSPECTION PROCEDUREStep 1:
Step 1(Continued)-2:

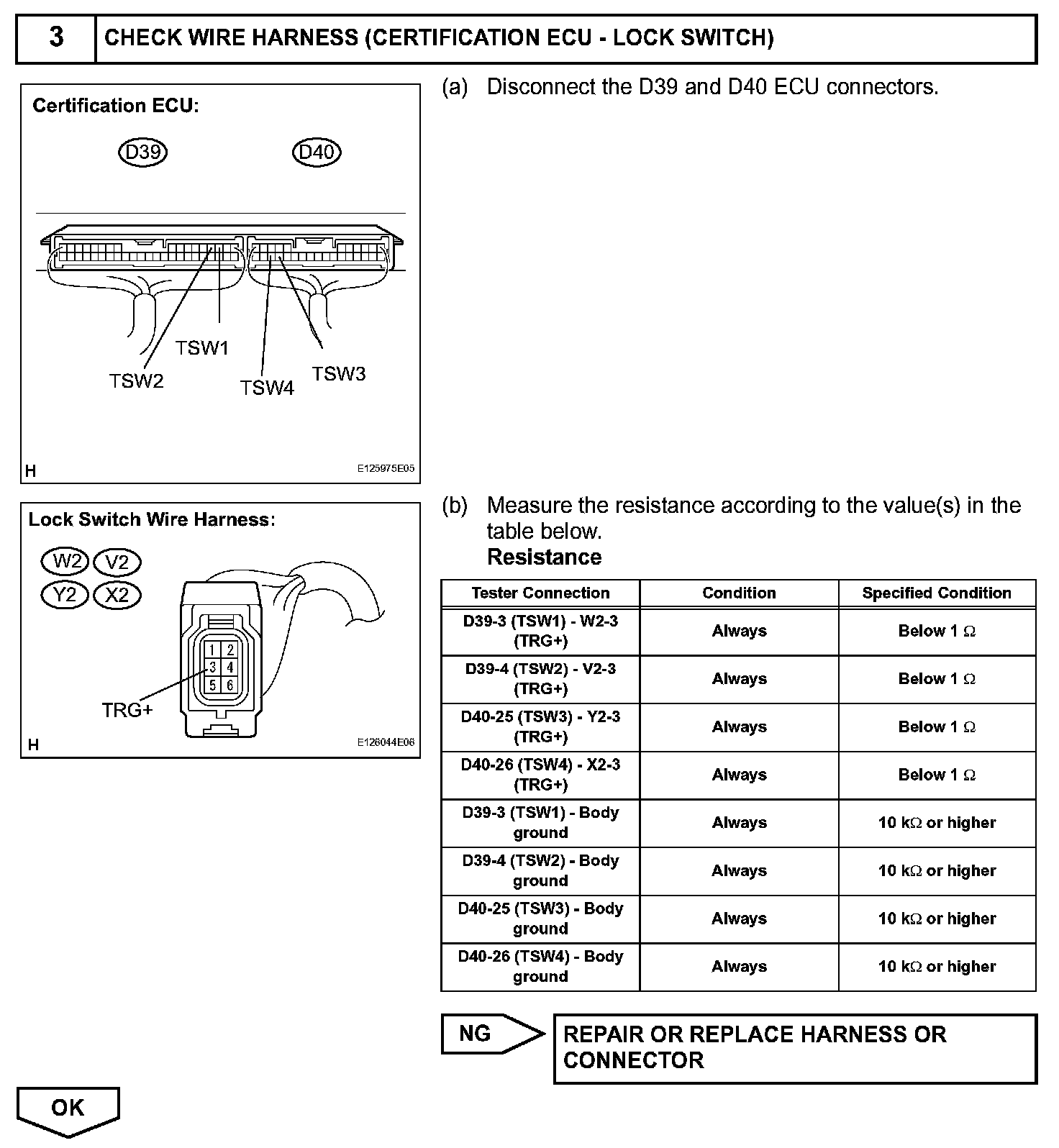

Step 3:

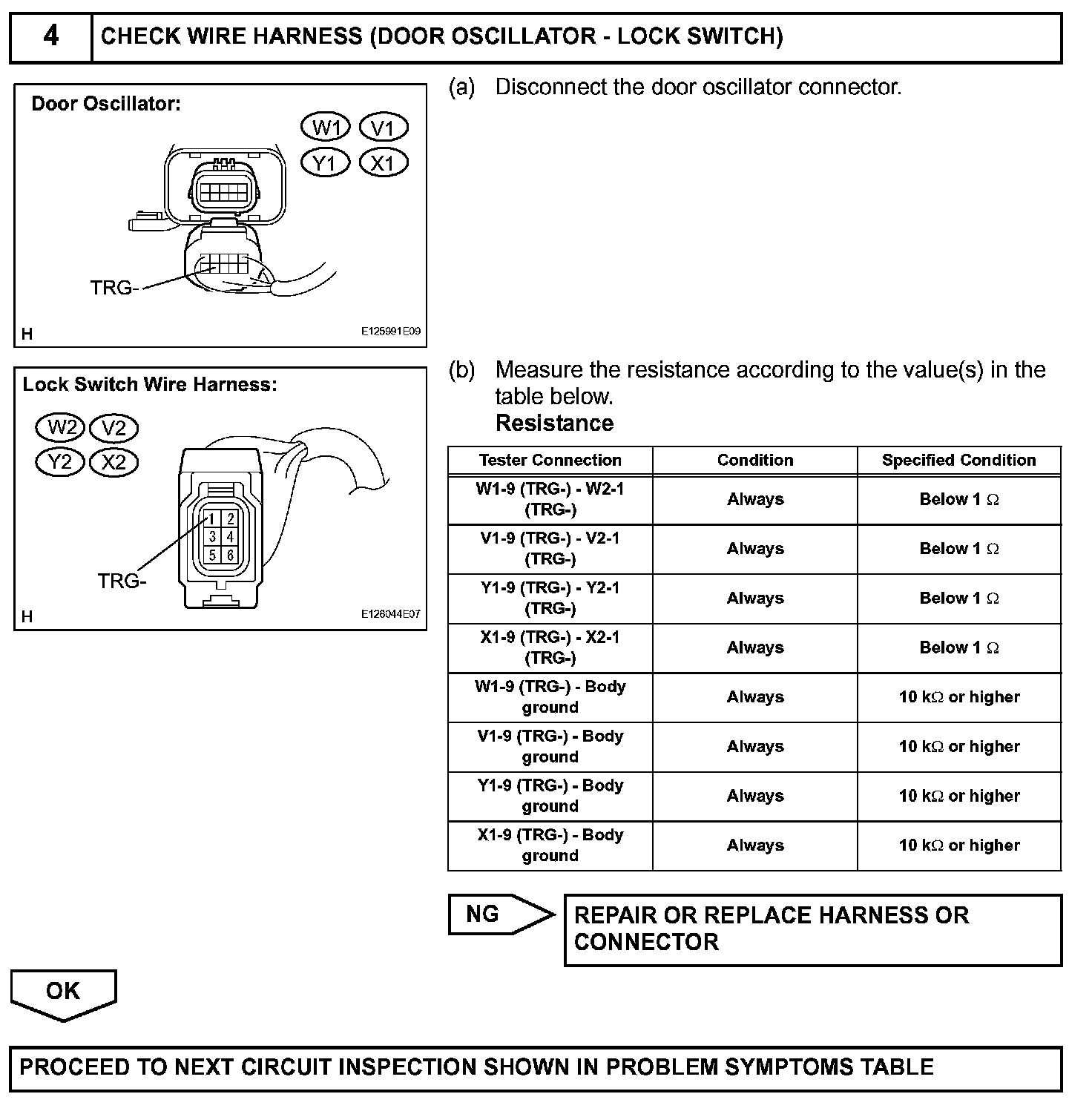

Step 4:
