Data List

DATA LIST

HINT: By accessing the DATA LIST displayed on the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST is the first step of troubleshooting and is one method to shorten labor time.

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Following the display on the tester, select "DATA LIST".

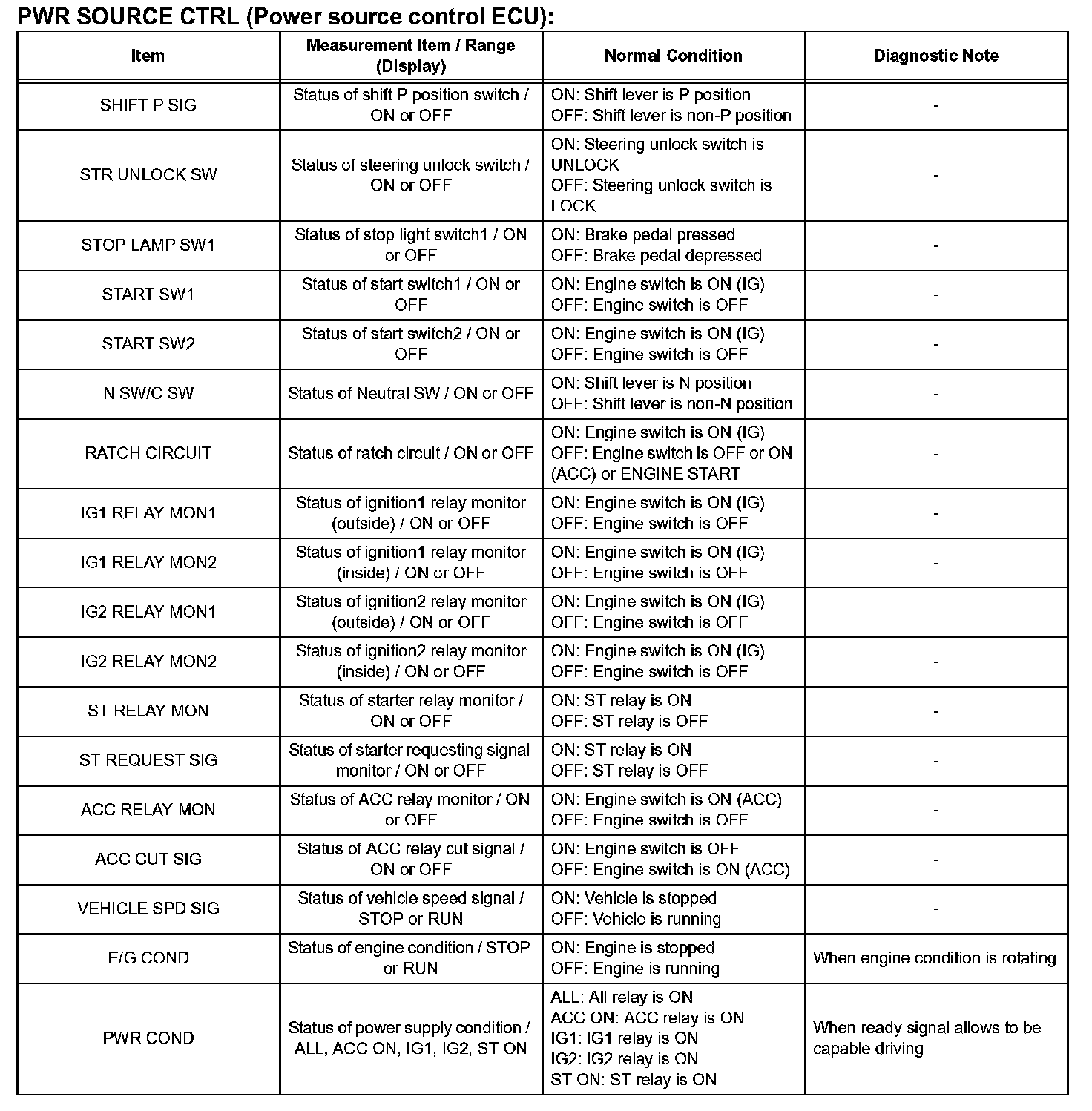

Power Source Control ECU Data List (Part 1):

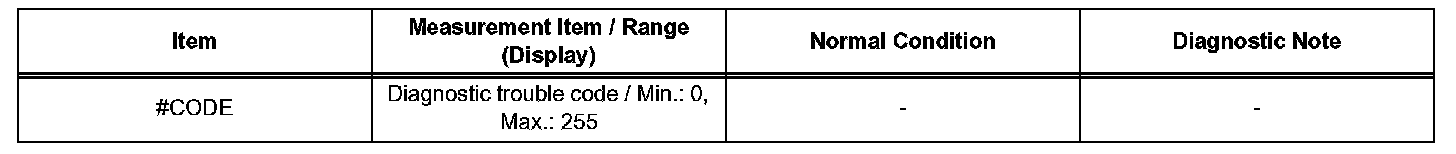

Power Source Control ECU Data List (Part 2):

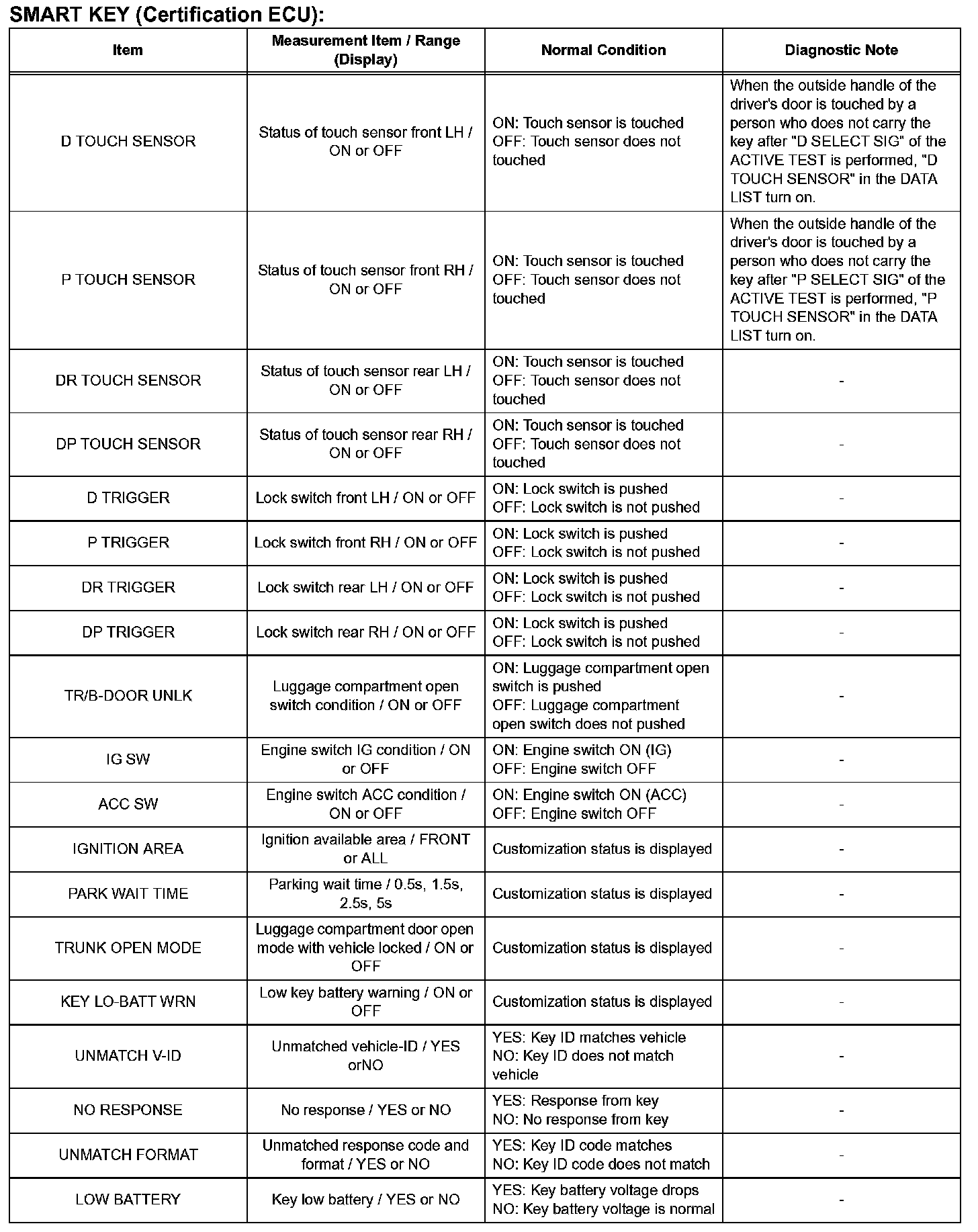

Certification ECU Data List (Part 1):

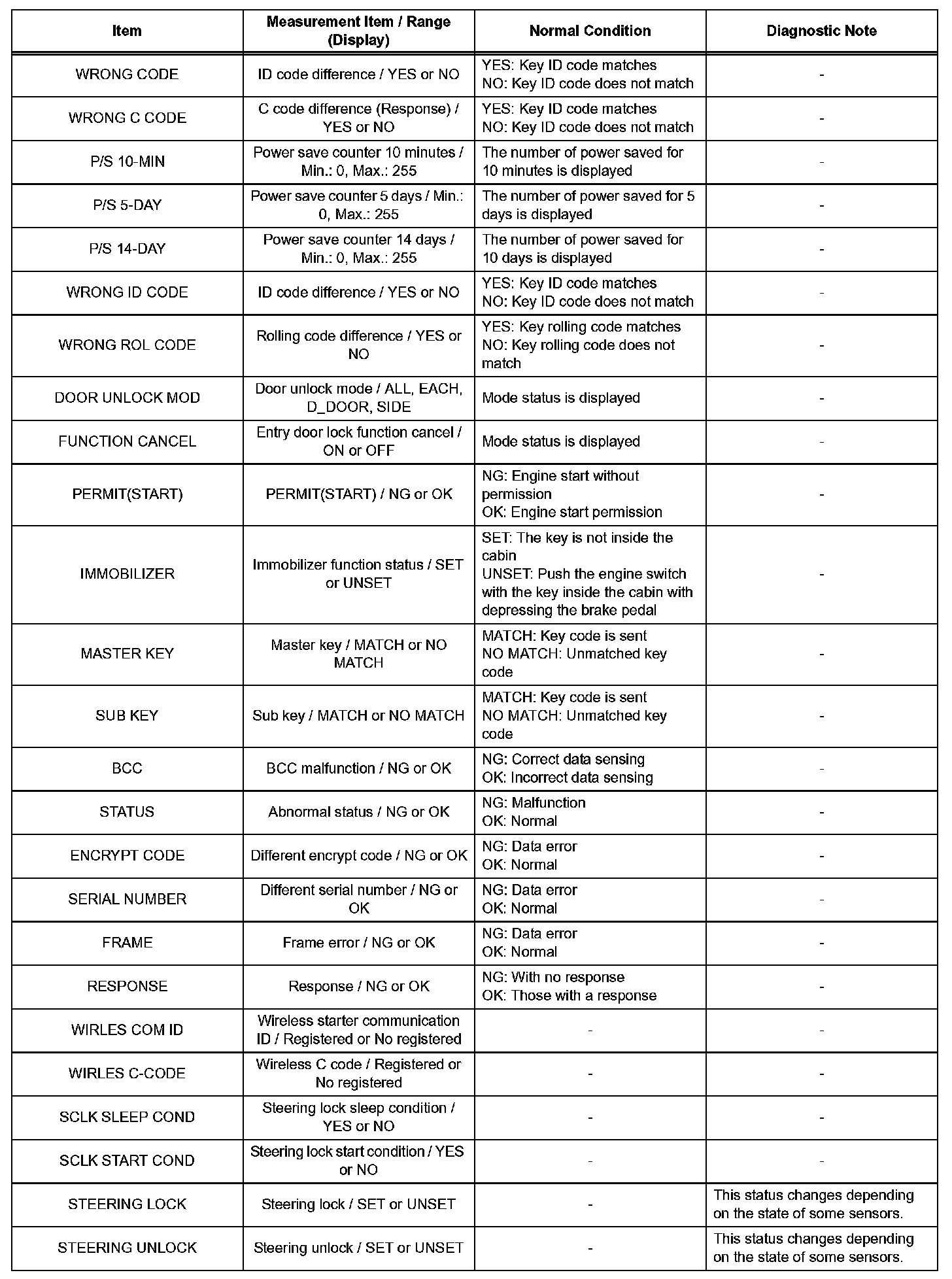

Certification ECU Data List (Part 2):




Certification Data List (Part 3):

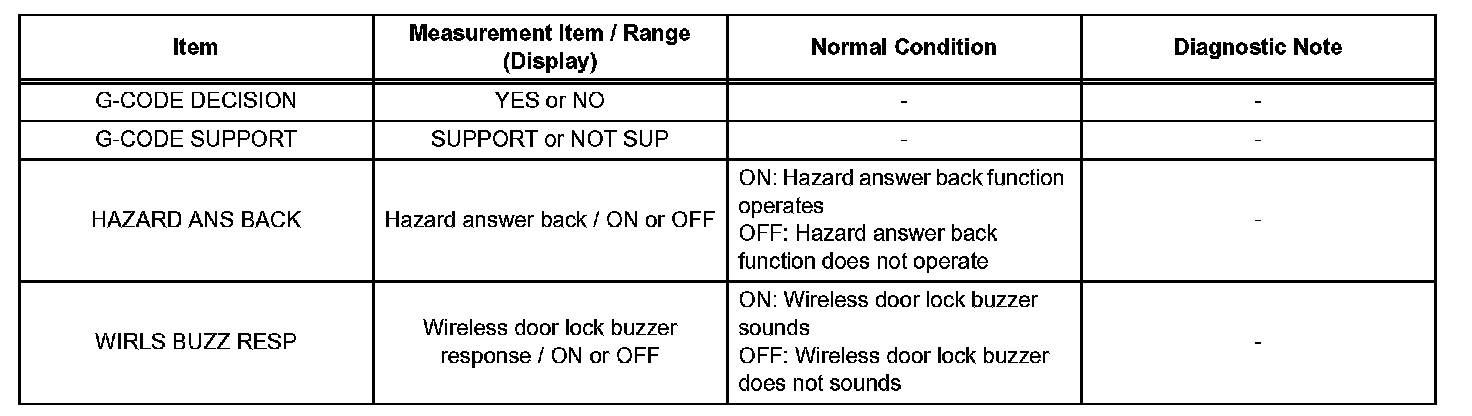

Certification ECU Data List (Part 4):

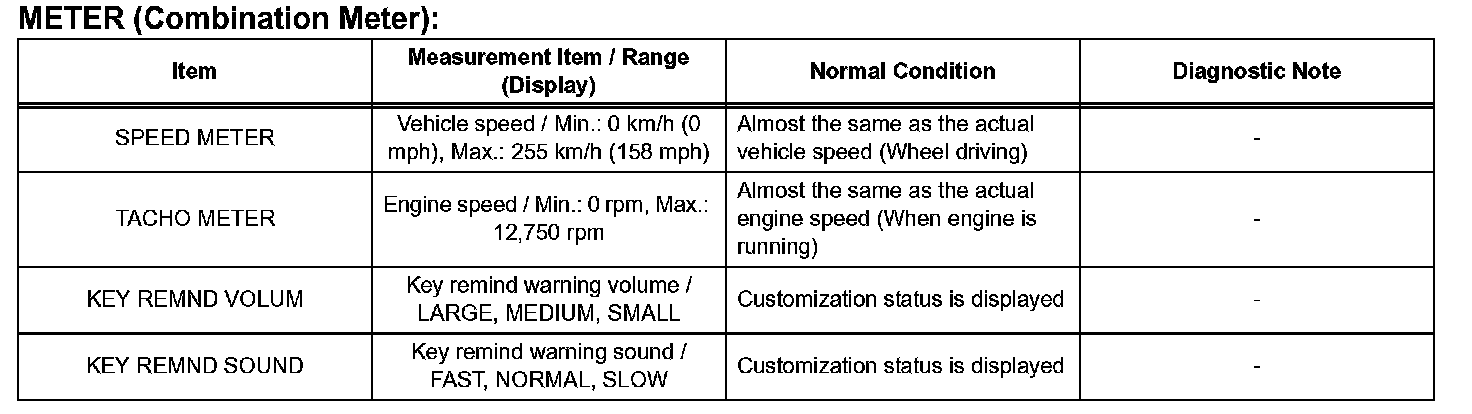

Combination Meter Data List:

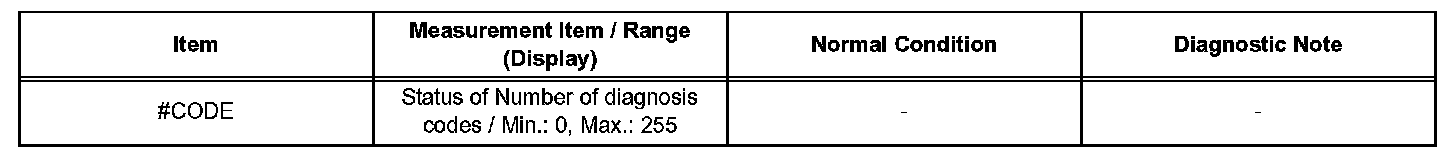

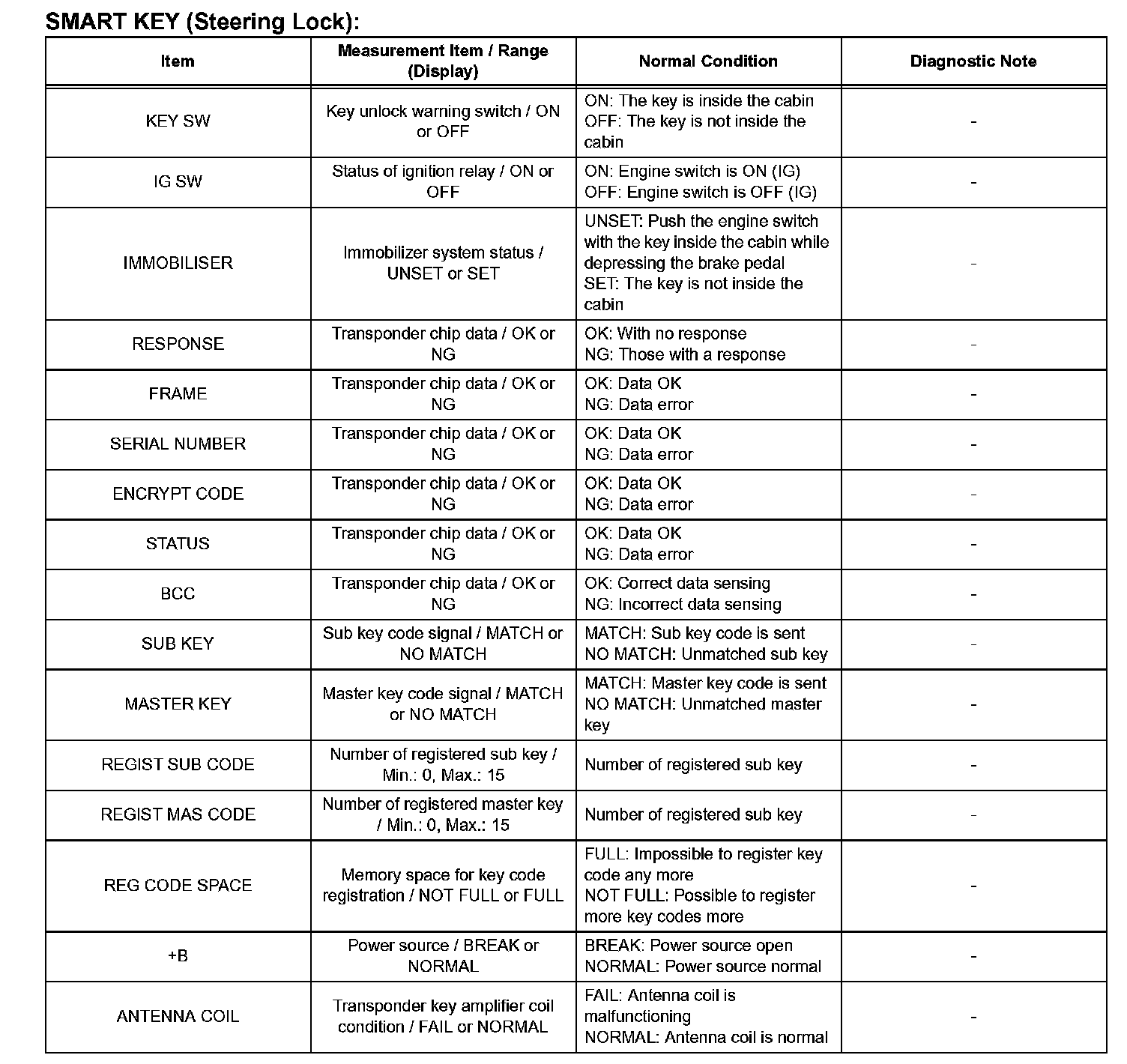

Steering Lock Data List (Part 1):

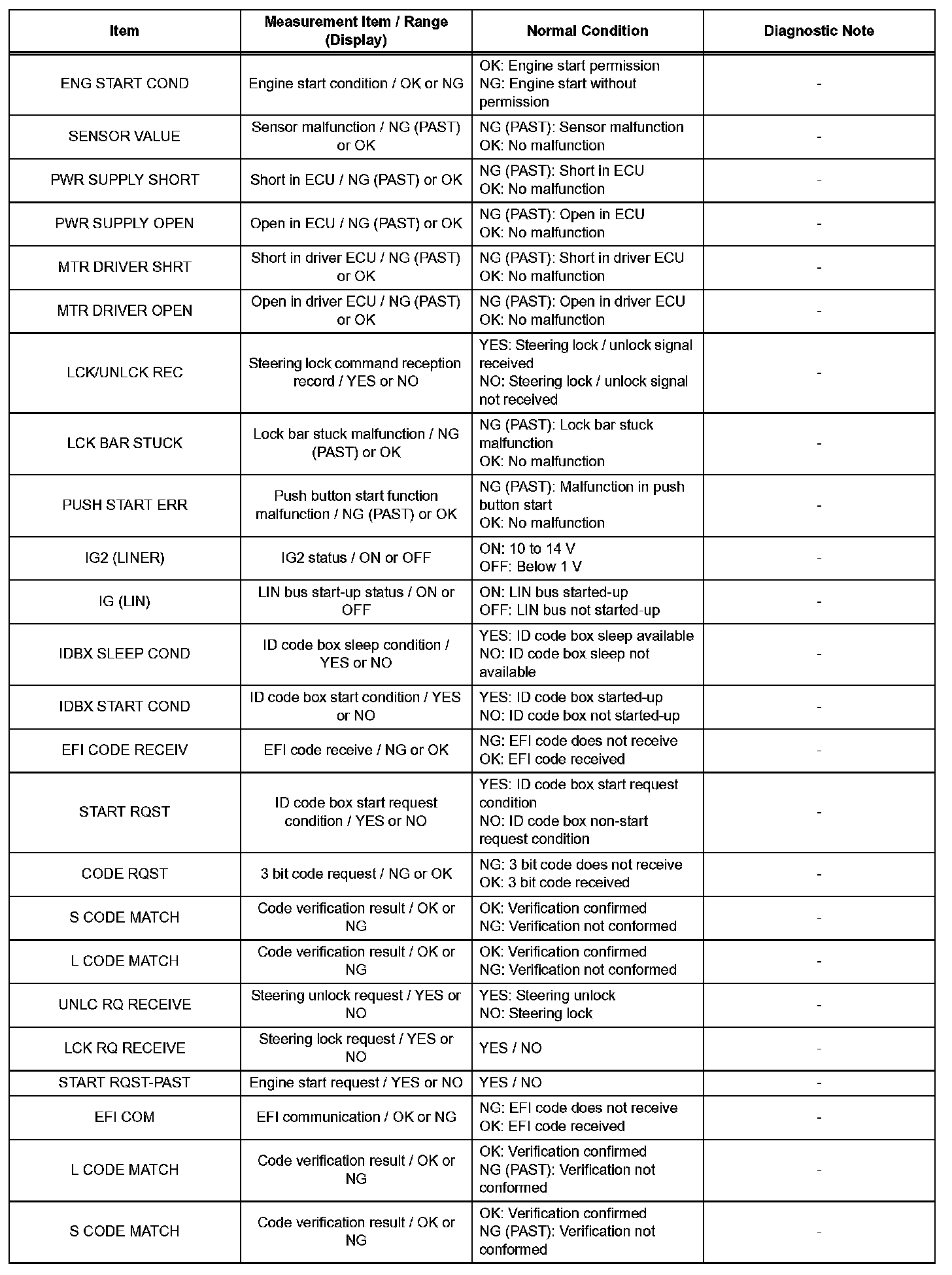

Steering Lock Data List (Part 2):
