Wiper Switch: Service and Repair

Wiper Switch:

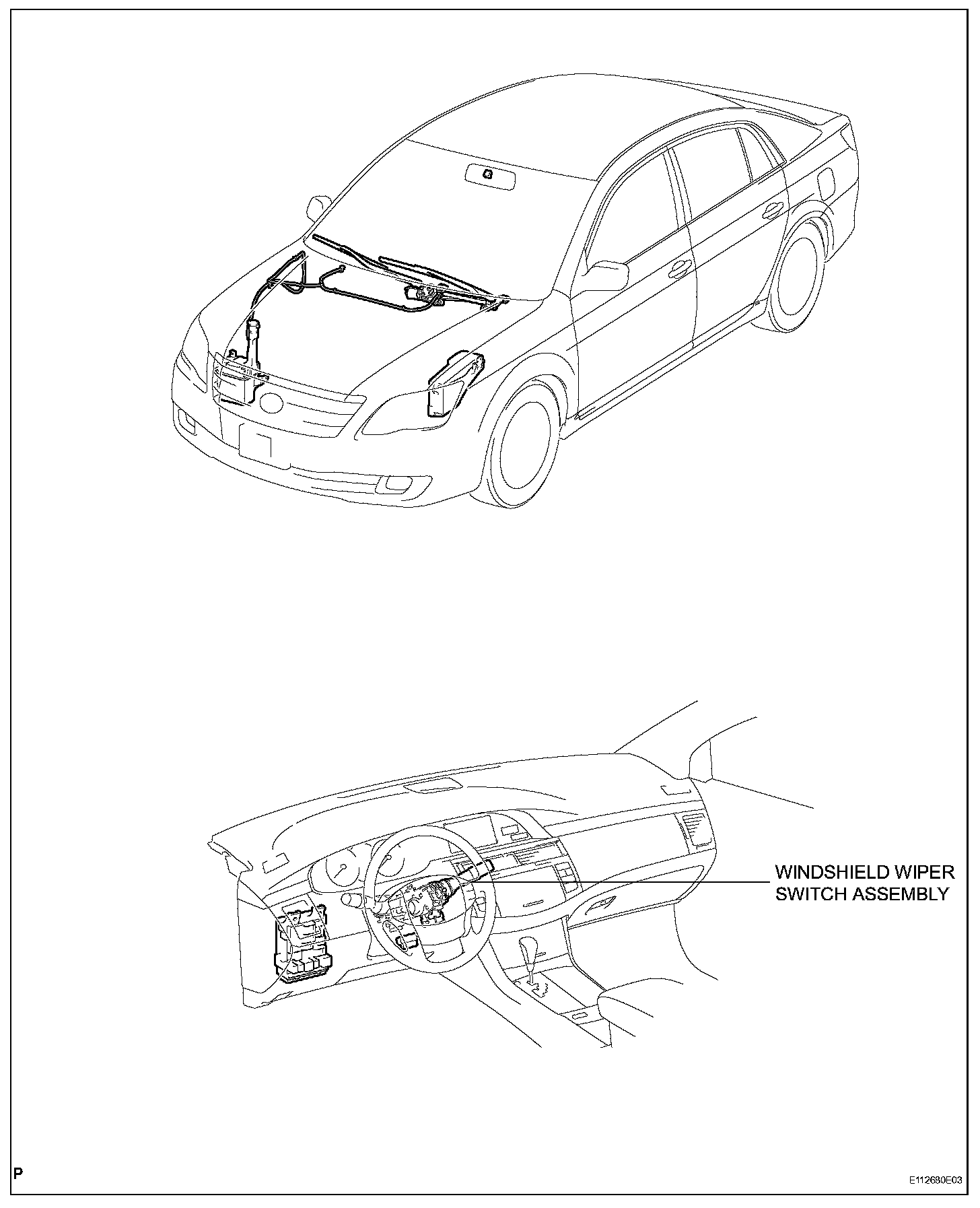

Wiper Switch

REMOVAL

1. PRECAUTION
Refer to Restraint Systems; Service Precautions.
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE STEERING WHEEL COVER LOWER NO.2
6. REMOVE HORN BUTTON ASSEMBLY
7. REMOVE STEERING WHEEL ASSEMBLY
8. REMOVE STEERING COLUMN COVER LWR
9. REMOVE STEERING COLUMN COVER




10. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
a. Disconnect the connector.
b. Disengage the claw, and remove the windshield wiper switch assembly.

NOTE: If the claw is pushed with excessive force, it may be broken.

INSTALLATION

1. INSTALL STEERING COLUMN COVER
2. INSTALL STEERING COLUMN COVER LWR
3. INSTALL STEERING WHEEL ASSEMBLY
4. INSPECT STEERING WHEEL CENTER POINT
5. INSTALL HORN BUTTON ASSEMBLY
6. INSTALL STEERING WHEEL COVER LOWER NO.2
7. REMOVE STEERING WHEEL COVER LOWER NO.3
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT HORN BUTTON ASSEMBLY
10. PERFORM INITIALIZATION
11. INSPECT SRS WARNING LIGHT
