ECU Power Source Circuit
ECU Power Source Circuit DESCRIPTION When the
ignition switch is turned on (IG), voltage from the ECM's MREL terminal is applied to the EFI relay. This causes the contacts of the EFI relay to close, which supplies power to terminal +B of the
TCM.

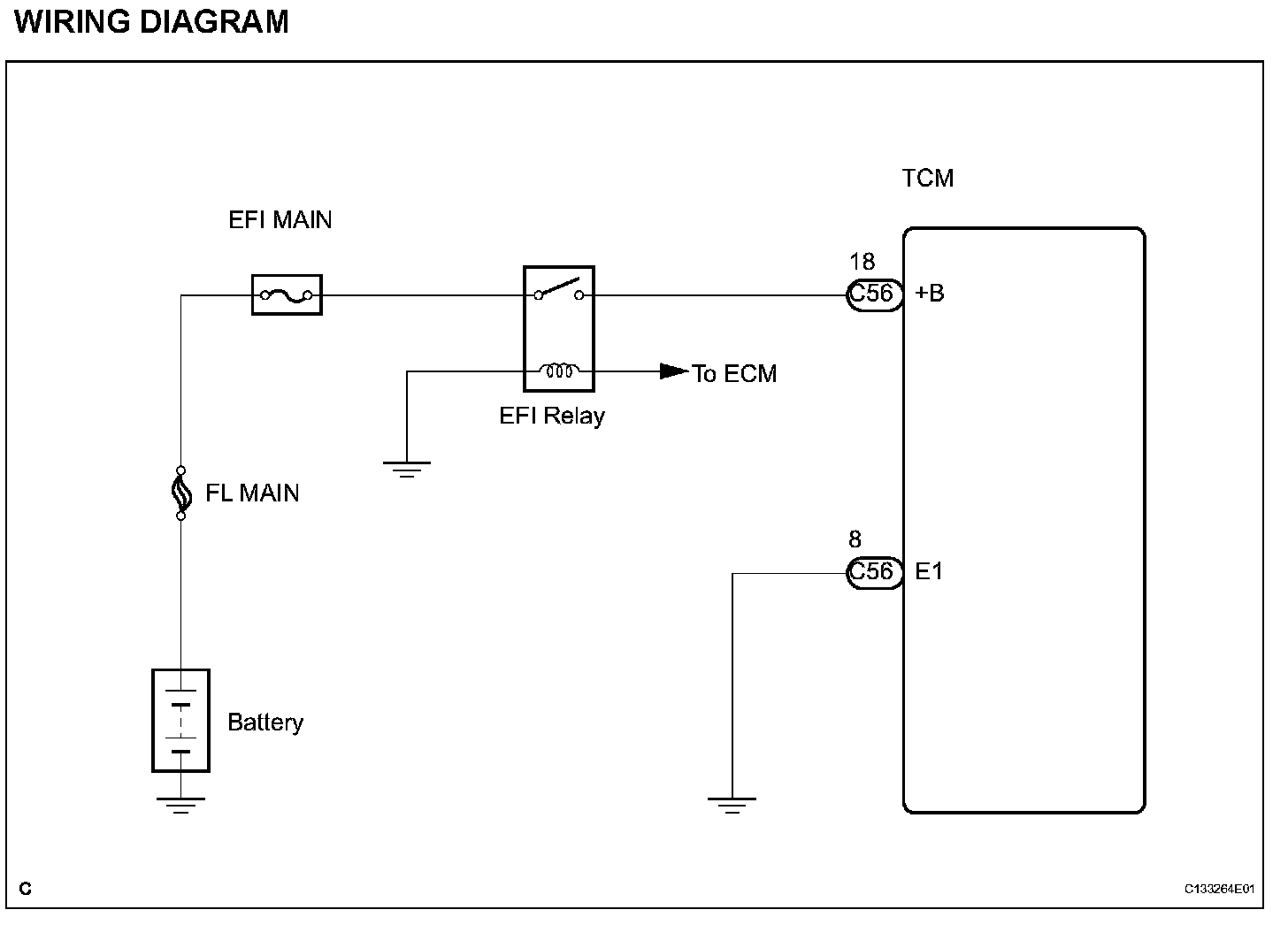

WIRING DIAGRAM:
INSPECTION PROCEDURE Step 1:

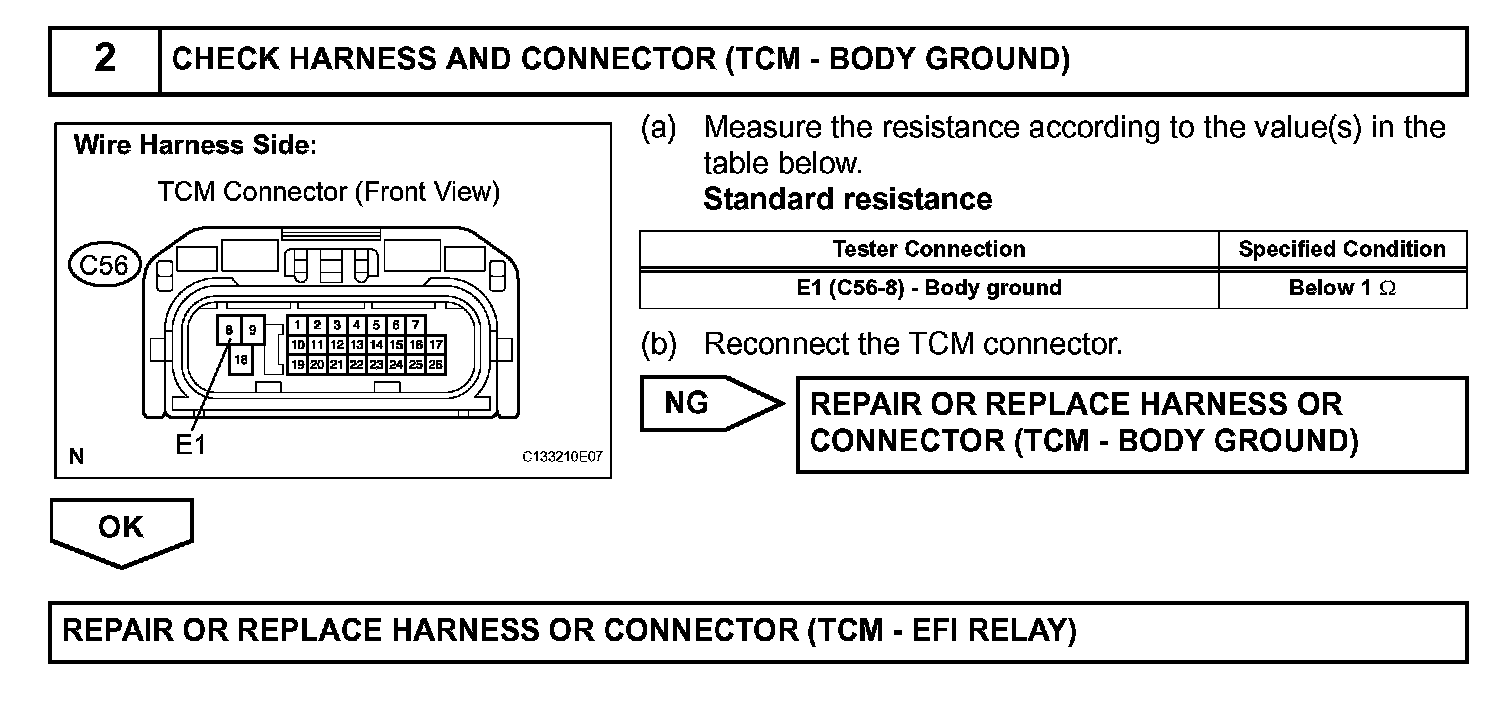

Step 2:
