Fail-Safe Chart
FAIL-SAFE CHART 1.
Fail-safe
This function minimizes the loss of operation when any abnormality occurs in a sensor or solenoid.

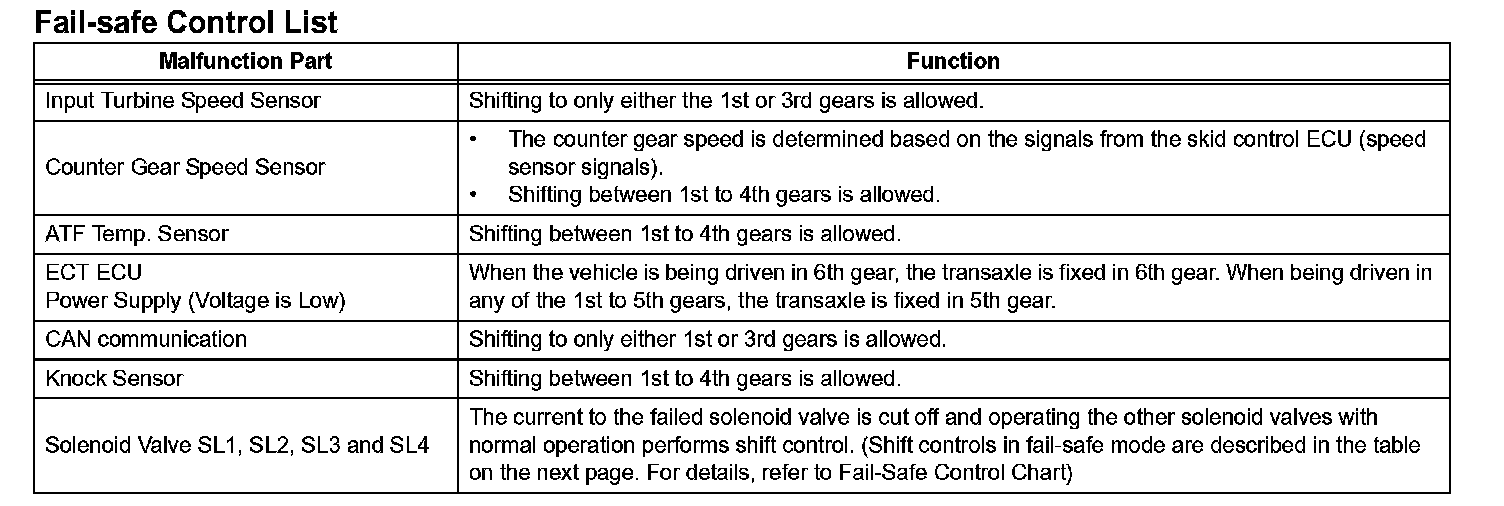

Fail-safe Control List:

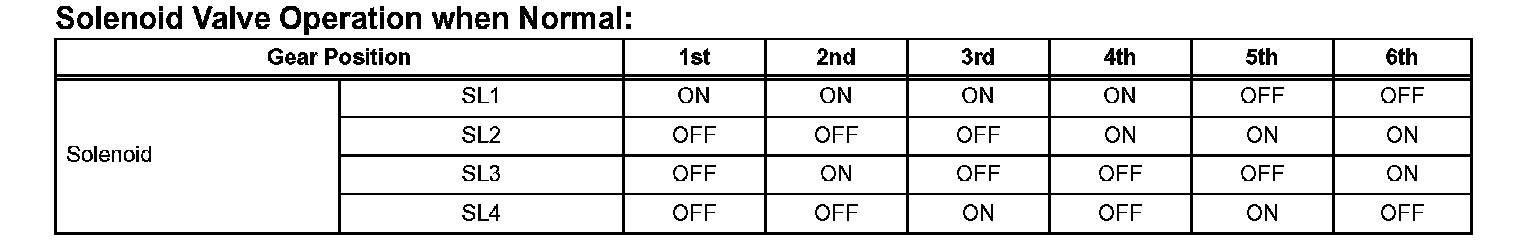

Solenoid Valve Operation when Normal:

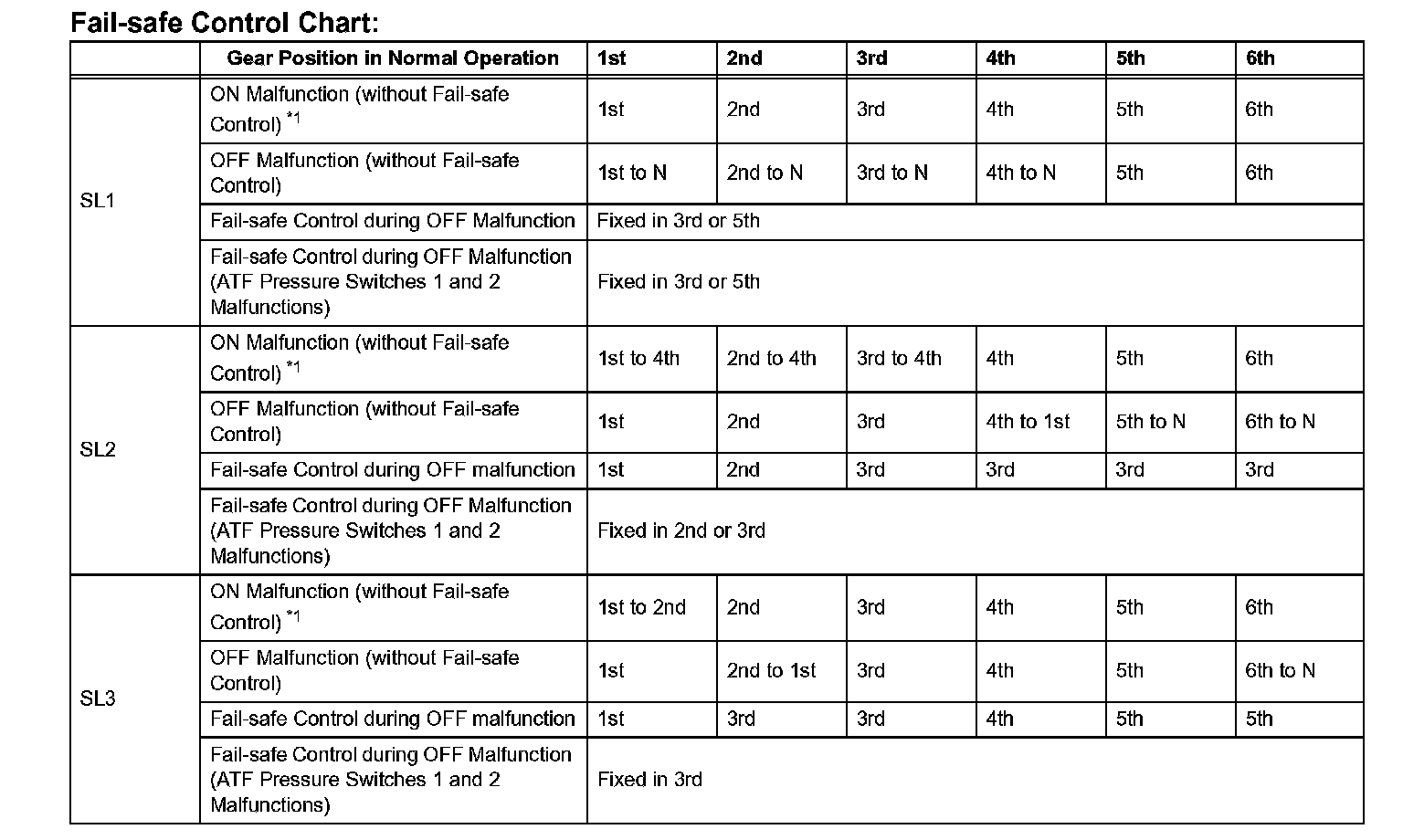

Fail-safe Control Chart (Part 1):
Fail-safe Control Chart (Part 2):
