Cruise Control Switch: Testing and Inspection
Cruise Main Indicator Light Circuit DESCRIPTION The CRUISE main indicator light comes on while the cruise control system is in operation and blinks when there are any problems with the system.
DTCs can be read by counting the number of times the CRUISE main indicator light blinks.

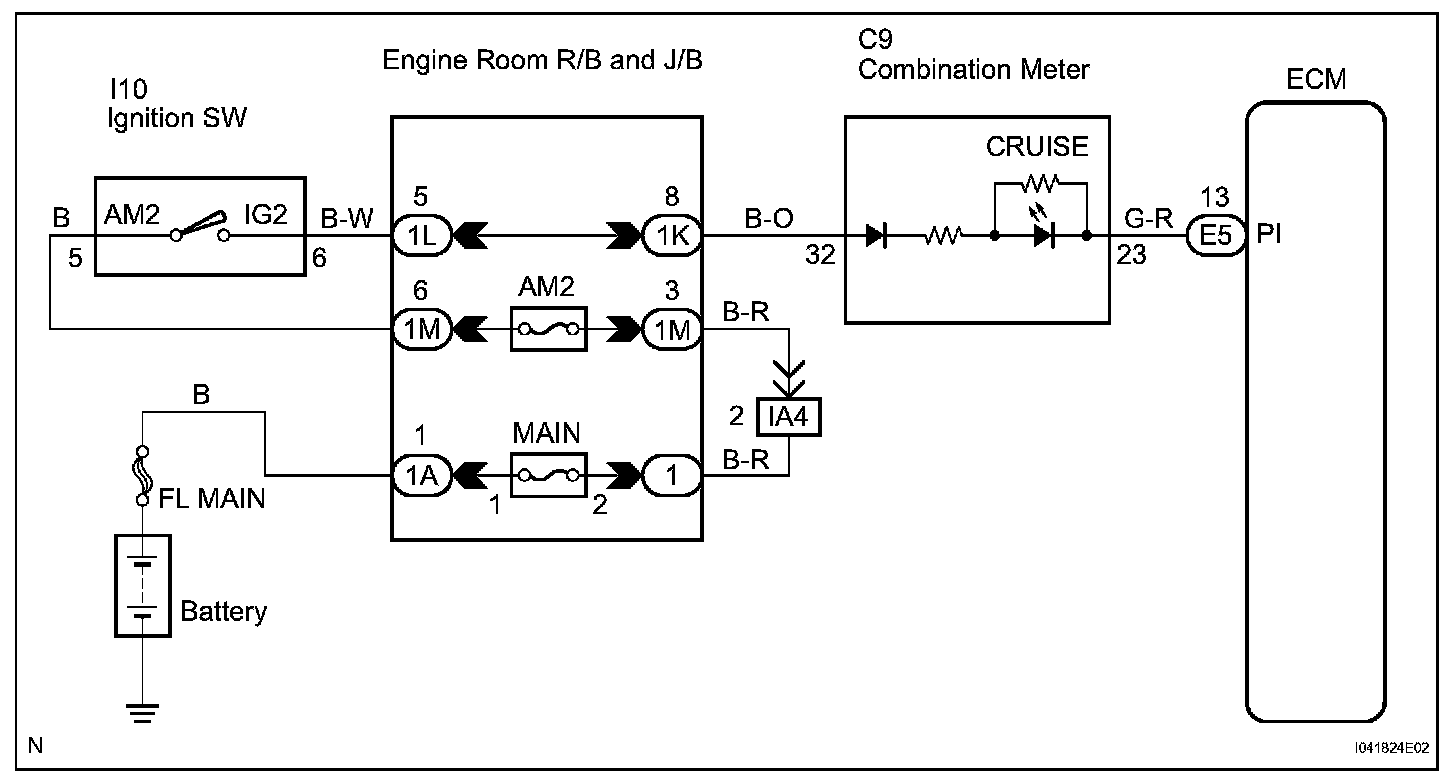

Wiring Diagram:

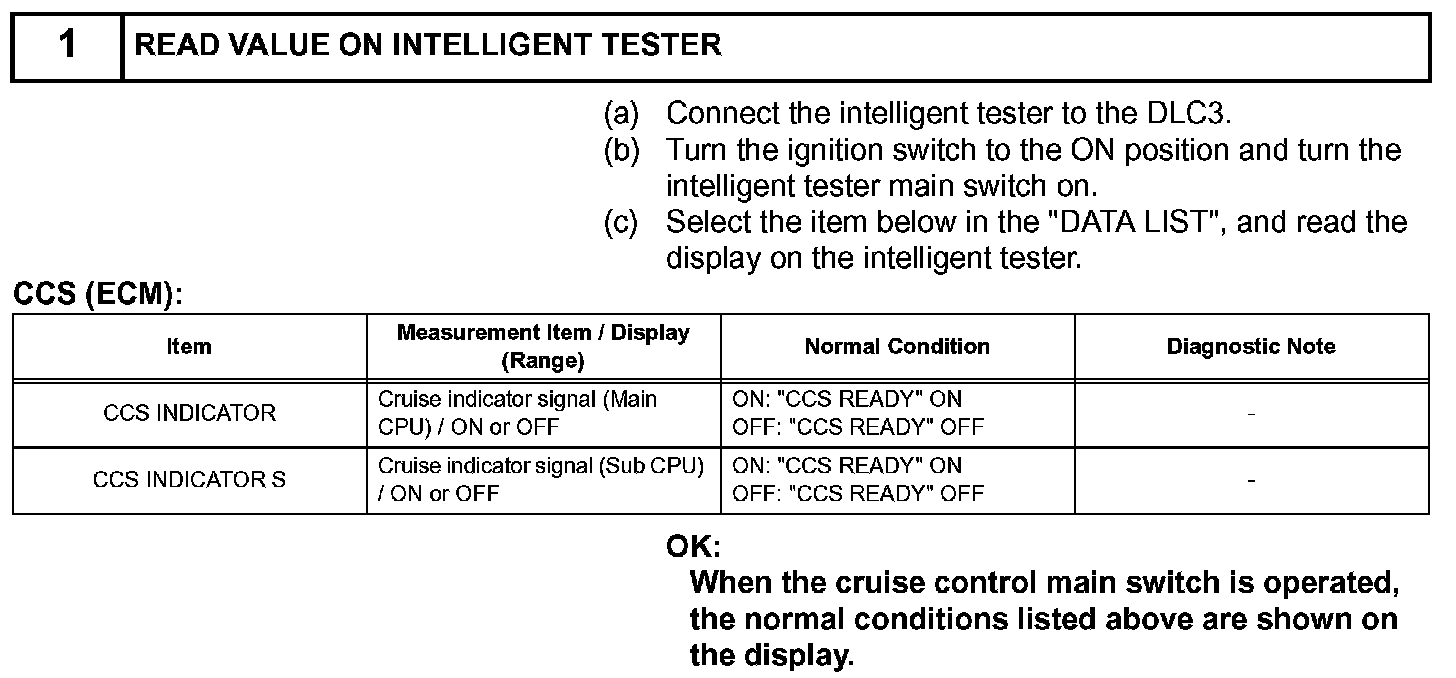

INSPECTION PROCEDUREStep 1:
Step 1(Continued)-3:

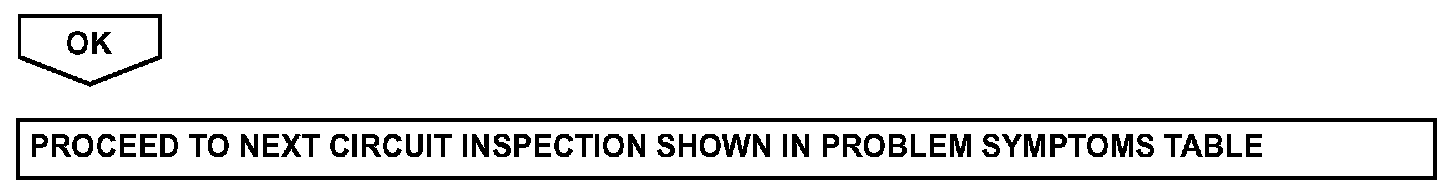

Step 3(Continued):
