REAR POWER OUTLET SOCKET

REMOVAL

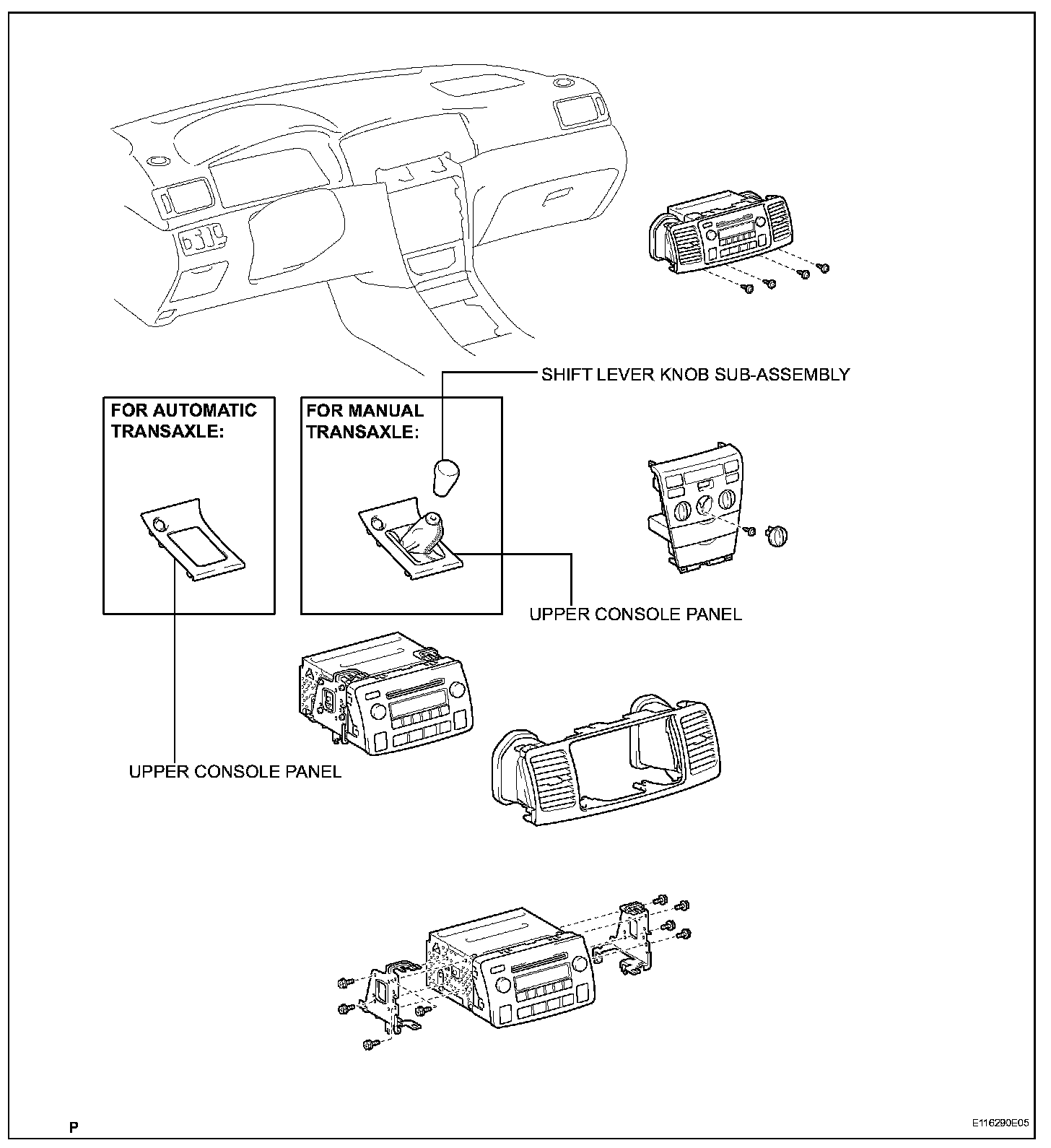

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
2. REMOVE UPPER CONSOLE PANEL

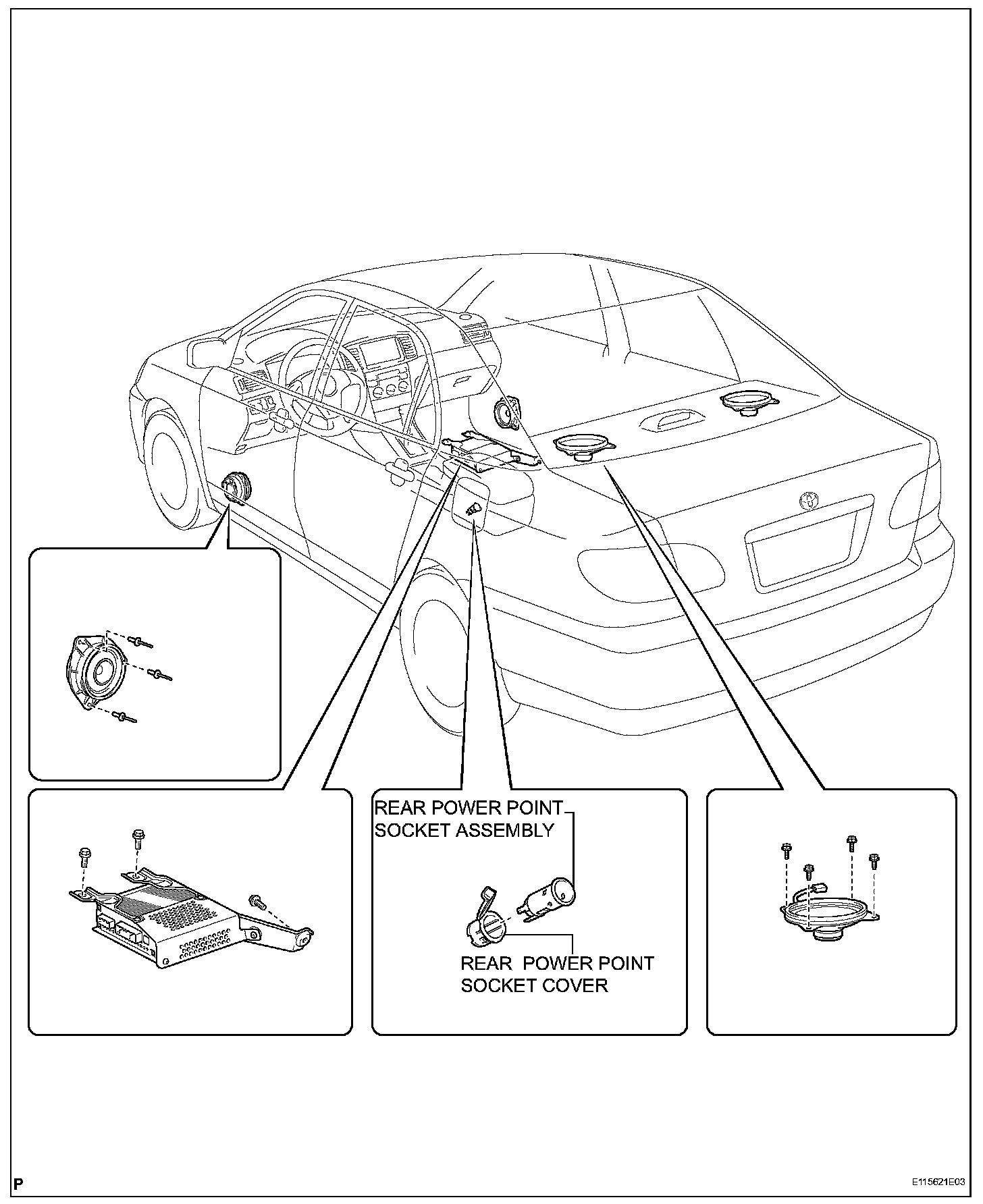

3. REMOVE REAR POWER POINT SOCKET ASSEMBLY




a. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the power point socket cover, and push out the socket to the room side.
b. Align the socket with the notch on the power point socket cover, remove the power point socket assembly to the room side.

INSTALLATION

1. INSTALL REAR POWER POINT SOCKET ASSEMBLY
a. Install the rear power point socket assembly with the 2 fitting claws.

2. INSTALL UPPER CONSOLE PANEL
3. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
