On-Vehicle Inspection

ON-VEHICLE INSPECTION

INSPECT ACCELERATOR PEDAL ASSEMBLY

Inspect the voltage.

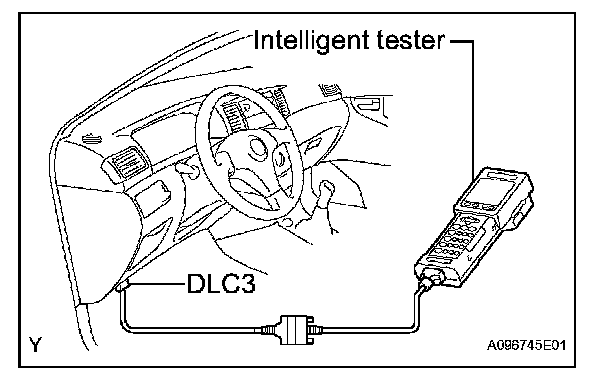

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the intelligent tester ON.
4. Select the menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / ACCEL POS #1, ACCEL POS #2.

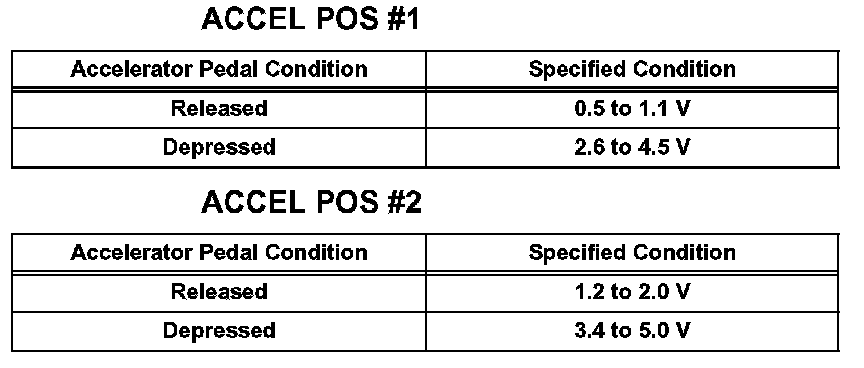

5. Operate the accelerator pedal, then check that of the ACCEL POS #1 and ACCEL POS #2 values are within the specified values.

If the result is not as specified, check the accelerator pedal, wire harness and ECM.
