Transmission Position Sensor/Switch: Testing and Inspection
INSPECTION 1.
INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a)
Jack up the vehicle.
(b)

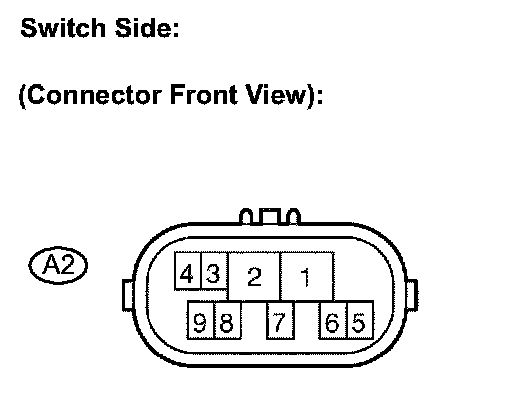

Disconnect the park/neutral position switch connector.
(c)
Measure resistance according to the value(s) in the table when the shift lever is moved to each position.

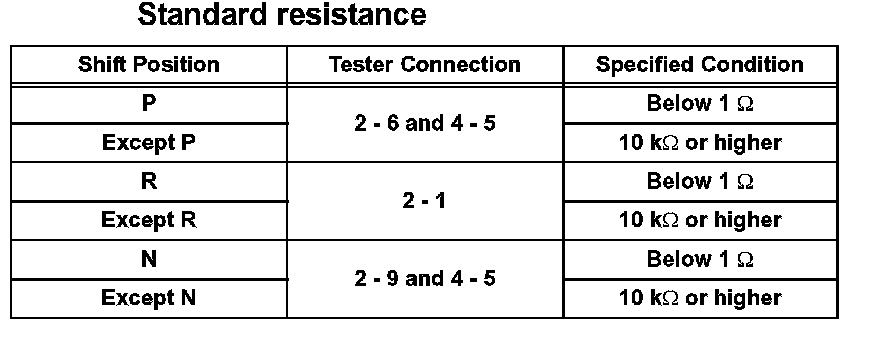

Standard Resistance (Part 1):

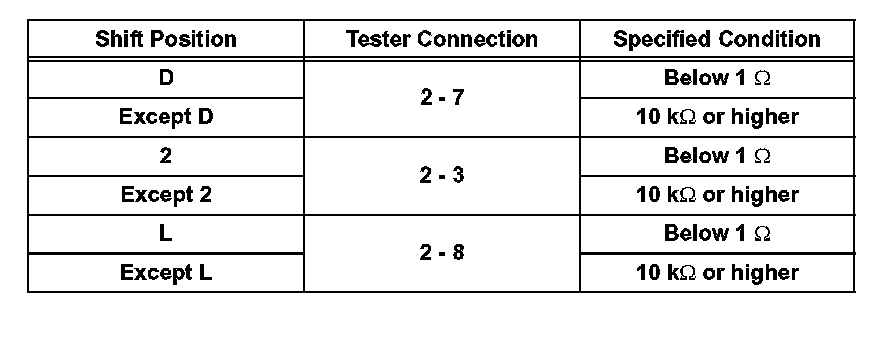

Standard Resistance (Part 2):
