Front

Alignment
FRONT WHEEL ALIGNMENT
VEHICLE HEIGHT

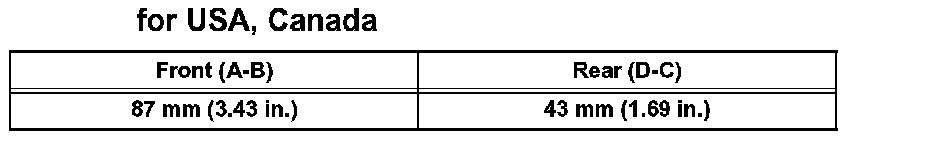

Vehicle Height For USA, Canada:

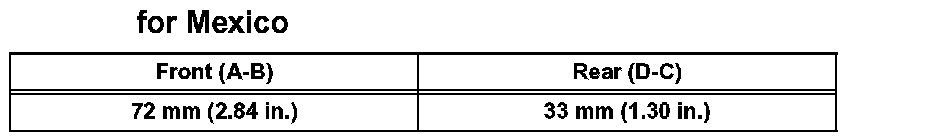

Vehicle Height For Mexico:

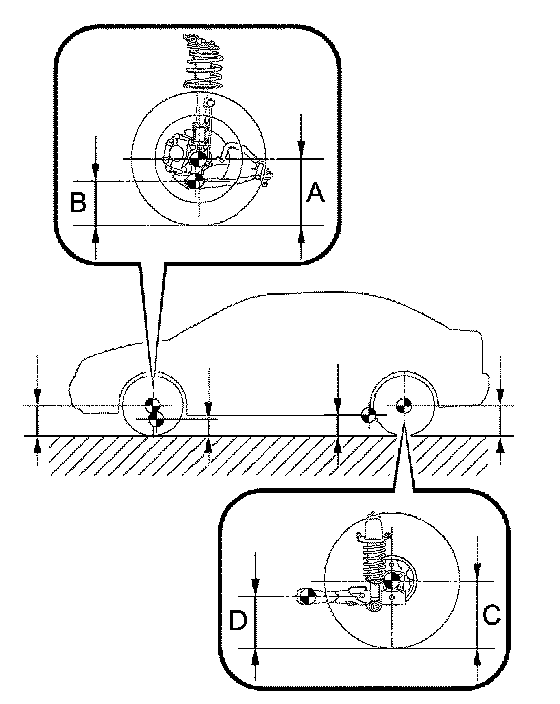

Measuring points:
A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm No. 1 bush front bolt center
C: Ground clearance of axle beam set bolt center
D: Ground clearance of rear wheel center

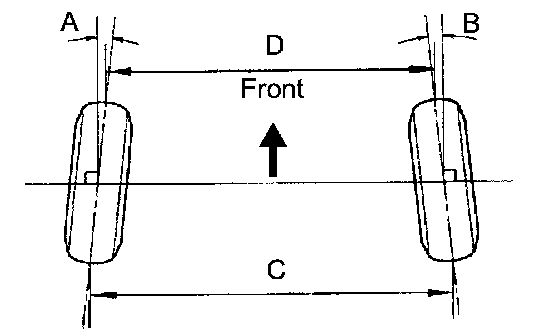

TOE-IN

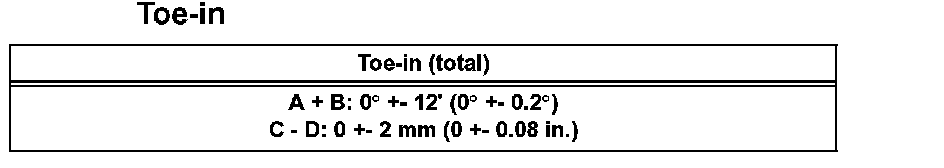

Toe-in:

HINT:
^ Measure "C - D" only when "A + B" can not be measured.
^ If the toe-in is not within the specified value, adjust it at the rack ends.

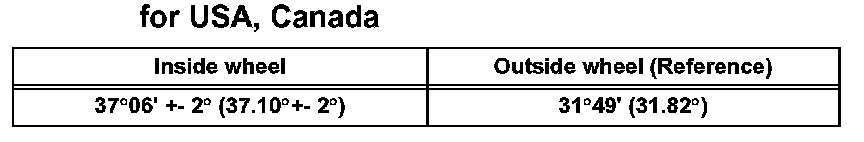

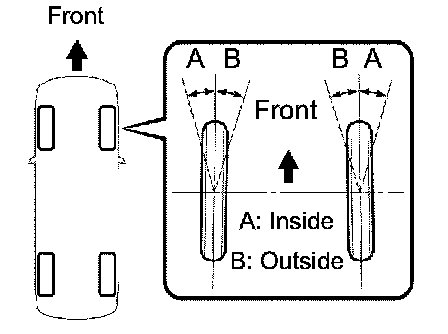

Wheel Turning Angle For USA, Canada:

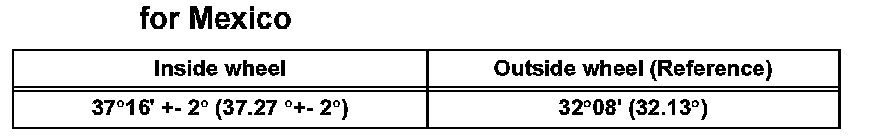

Wheel Turning Angle For Mexico:

WHEEL ANGLE

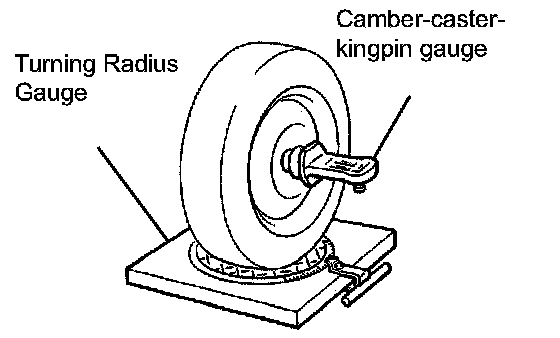

CAMBER, CASTER AND STEERING AXIS INCLINATION

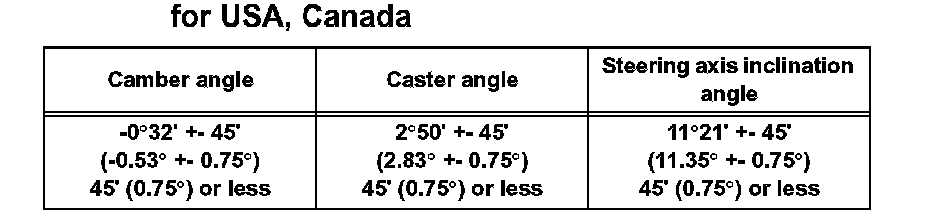

Camber, Caster, And Steering Axis Inclination For USA, Canada:

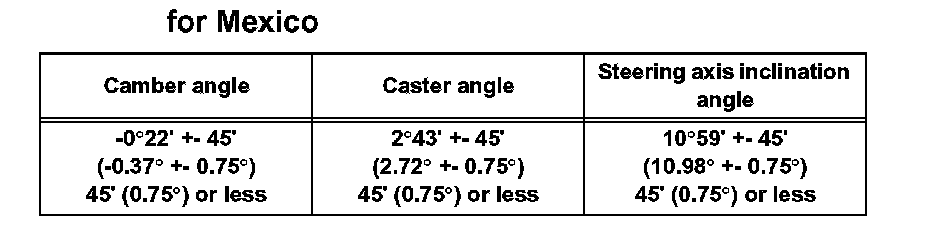

Camber, Caster, And Steering Axis Inclination For Mexico:

NOTICE:
^ Inspect while the vehicle is empty.
^ The maximum tolerance of right and left difference for the camber and caster is 45' (0.75°) or less.
