Rear

Alignment
REAR WHEEL ALIGNMENT
VEHICLE HEIGHT
Specifications

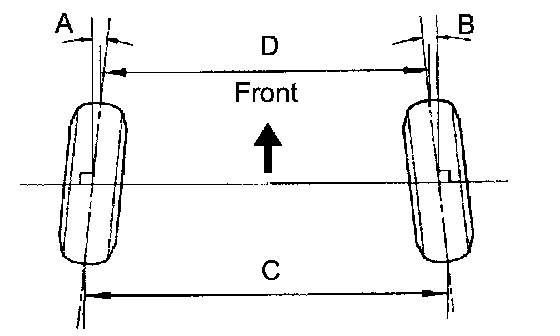

TOE-IN

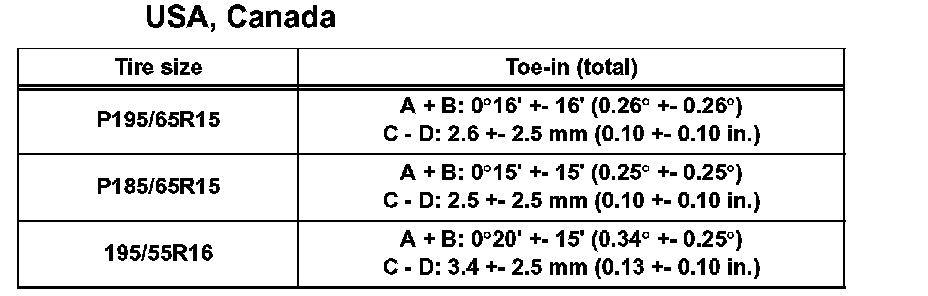

Toe-in: USA, Canada:

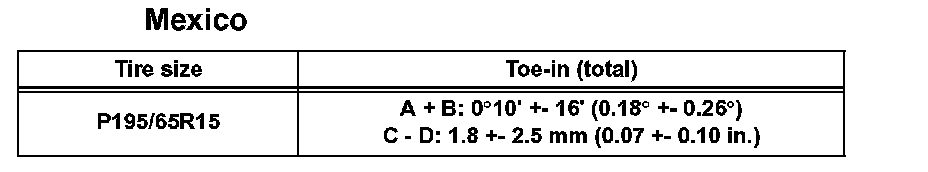

Toe-in: Mexico:

HINT:
^ Measure "C - D" only when "A + B" cannot be measured.
^ If toe-in is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.

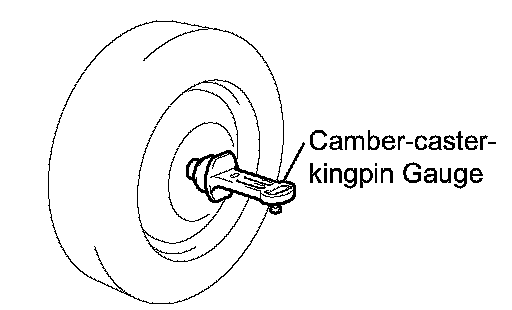

CAMBER

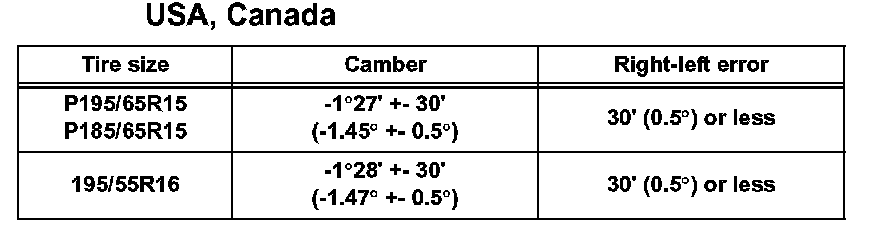

Camber: USA, Canada:

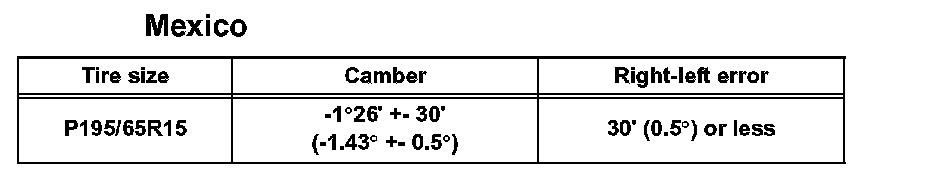

Camber: Mexico:

HINT: Camber is not adjustable. If the measurement is not within the specified range, inspect the suspension parts for damage and/or wear, and replace them if necessary.
