System Specifications
Crankshaft PulleyCrankshaft pulley x Crankshaft 138 Nm (1,407 kgf-cm, 102 ft. lbs.)
Timing Cover
Crankshaft position sensor x Timing chain or belt cover 9.0 Nm (92 kgf-cm, 80 inch lbs.)
Stud bolt x Timing chain cover sub-assembly 5.0 Nm (51 kgf-cm, 44 inch lbs.)
Timing chain or belt cover sub-assembly x Cylinder head sub-assembly 13 Nm (133 kgf-cm, 10 ft. lbs.)

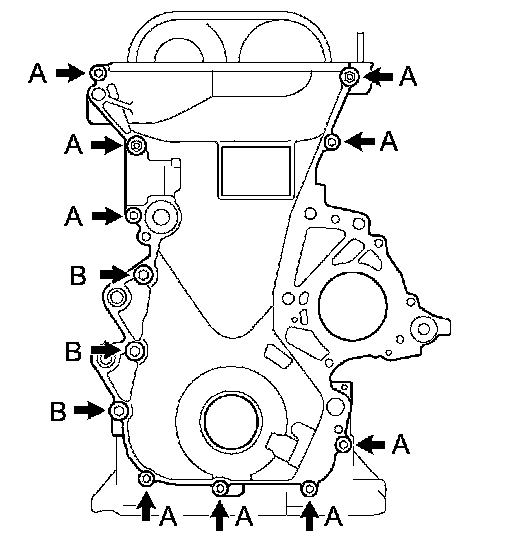

Timing chain or belt cover sub-assembly x Cylinder block sub-assembly
A 13 Nm (133 kgf-cm, 10 ft. lbs.)
B 18.5 Nm (189 kgf-cm, 14 ft. lbs.)
Chain tensioner assembly No. 1 x Timing chain or belt cover sub-assembly 9.0 Nm (92 kgf-cm, 80 inch lbs.)

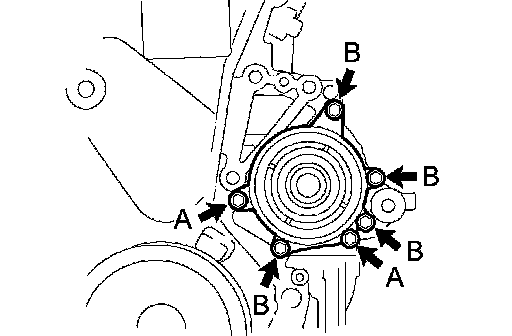

Water pump assembly x Timing chain cover sub-assembly
A 9.0 Nm (92 kgf-cm, 80 inch lbs.)
B 11 Nm (112 kgf-cm, 8 ft. lbs.)
Engine mounting bracket x Timing chain or belt cover sub-assembly 47 Nm (479 kgf-cm, 35 ft. lbs.)
Cylinder head cover sub-assembly x Timing chain or belt cover sub-assembly 11 Nm (112 kgf-cm, 8 ft. lbs.)
Timing Chain Tensioner
Chain tensioner slipper x Cylinder block sub-assembly 18.5 Nm (189 kgf-cm, 14 ft. lbs.)
Chain tensioner assembly No. 1 x Timing chain or belt cover sub-assembly 9.0 Nm (92 kgf-cm, 80 inch lbs.)
