Door Control Switch (For Driver Side)

Door Control Switch (for Driver Side):

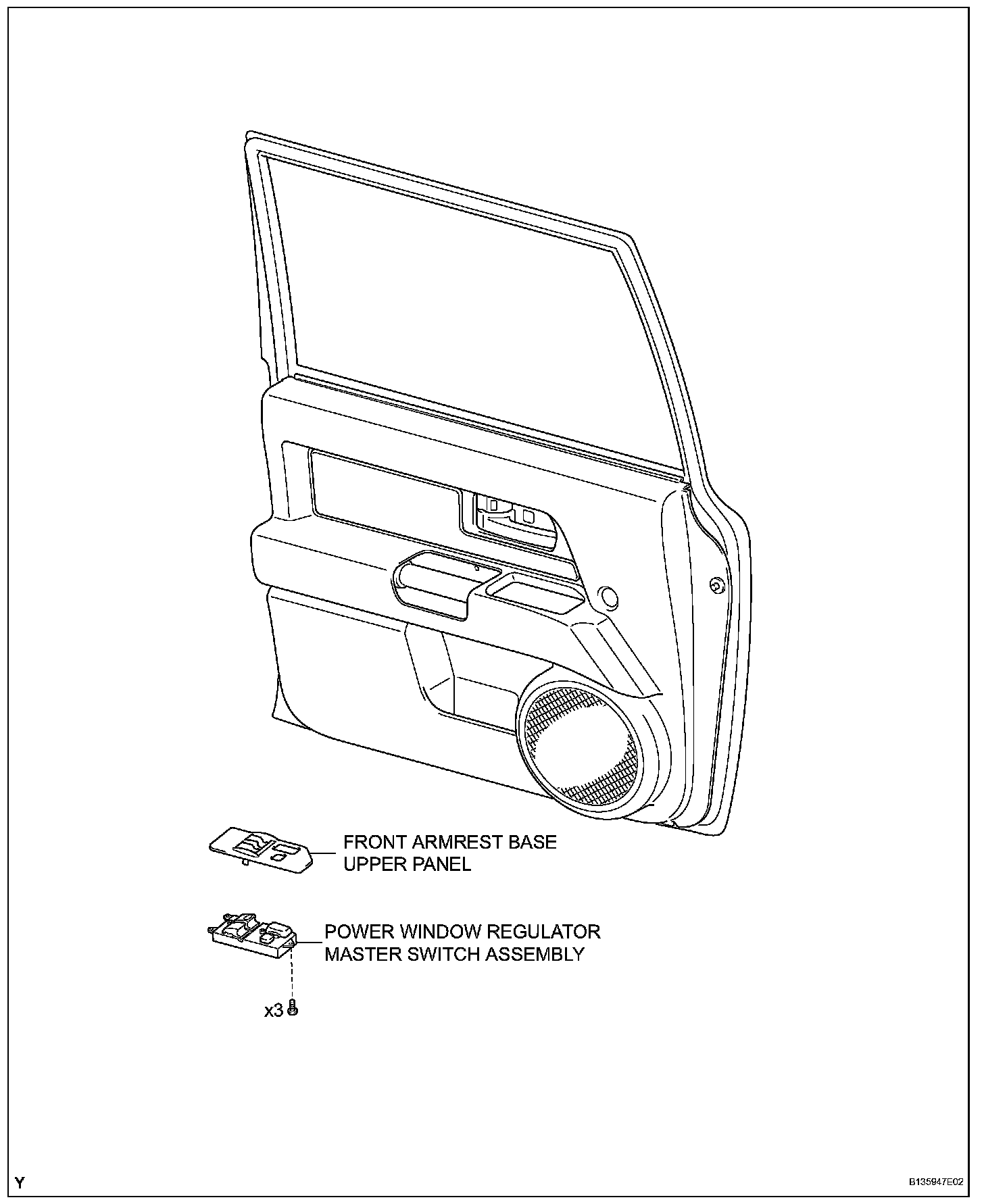

DOOR CONTROL SWITCH (for Driver Side)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT ARMREST BASE UPPER PANEL




3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a. Remove the 3 screws and the power window regulator master switch.

INSTALLATION




1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a. Install the power window regulator master switch with the 3 screws.

2. INSTALL FRONT ARMREST BASE UPPER PANEL
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
