Overhaul

INTEGRATION CONTROL AND PANEL

DISASSEMBLY




1. REMOVE AIR CONDITIONER AMPLIFIER ASSEMBLY
a. Remove the 3 screws.

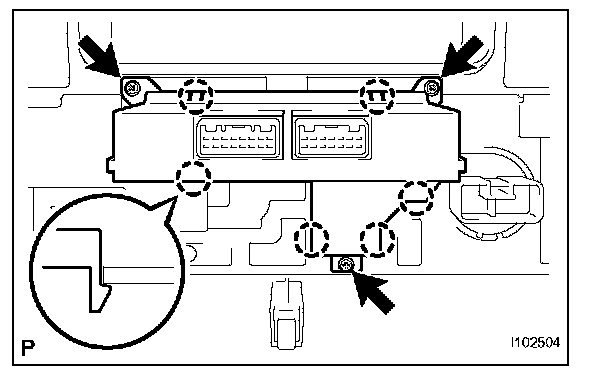

b. Disengage the 6 claws and remove the rear panel.

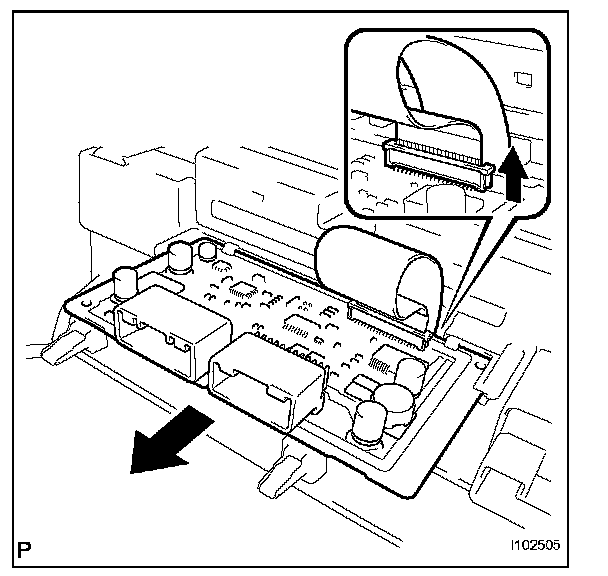

c. Disengage the lock of the connector and disconnect the cable.
d. Remove the air conditioner amplifier assembly.

REASSEMBLY

1. INSTALL AIR CONDITIONER AMPLIFIER ASSEMBLY




a. Remove the air conditioner amplifier assembly.

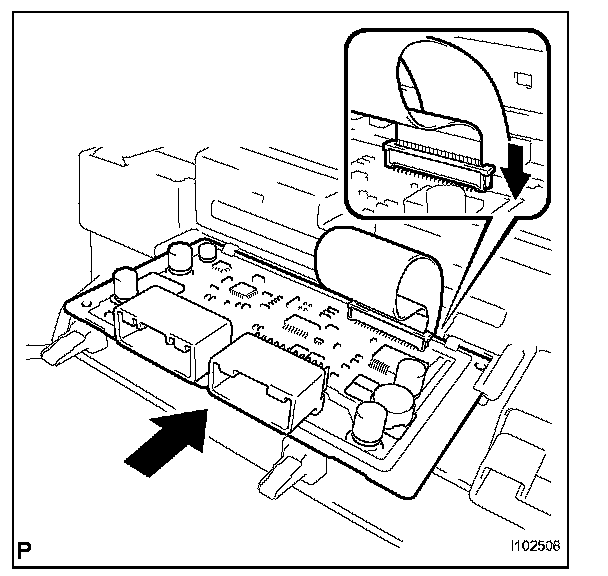

b. Engage the lock of the connector and connect the cable.

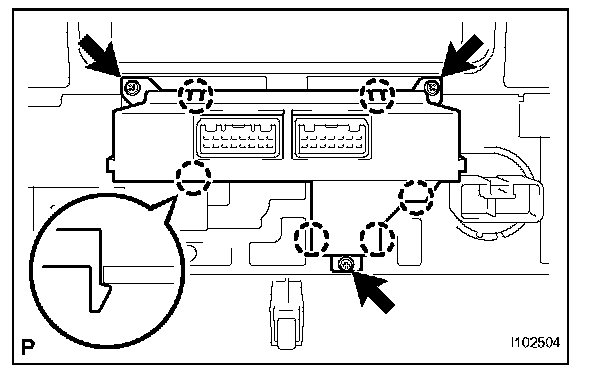

c. Engage the 6 claws and install the rear panel.
d. Install the 3 screws.
