Removal and Replacement

Integration Control And Panel:

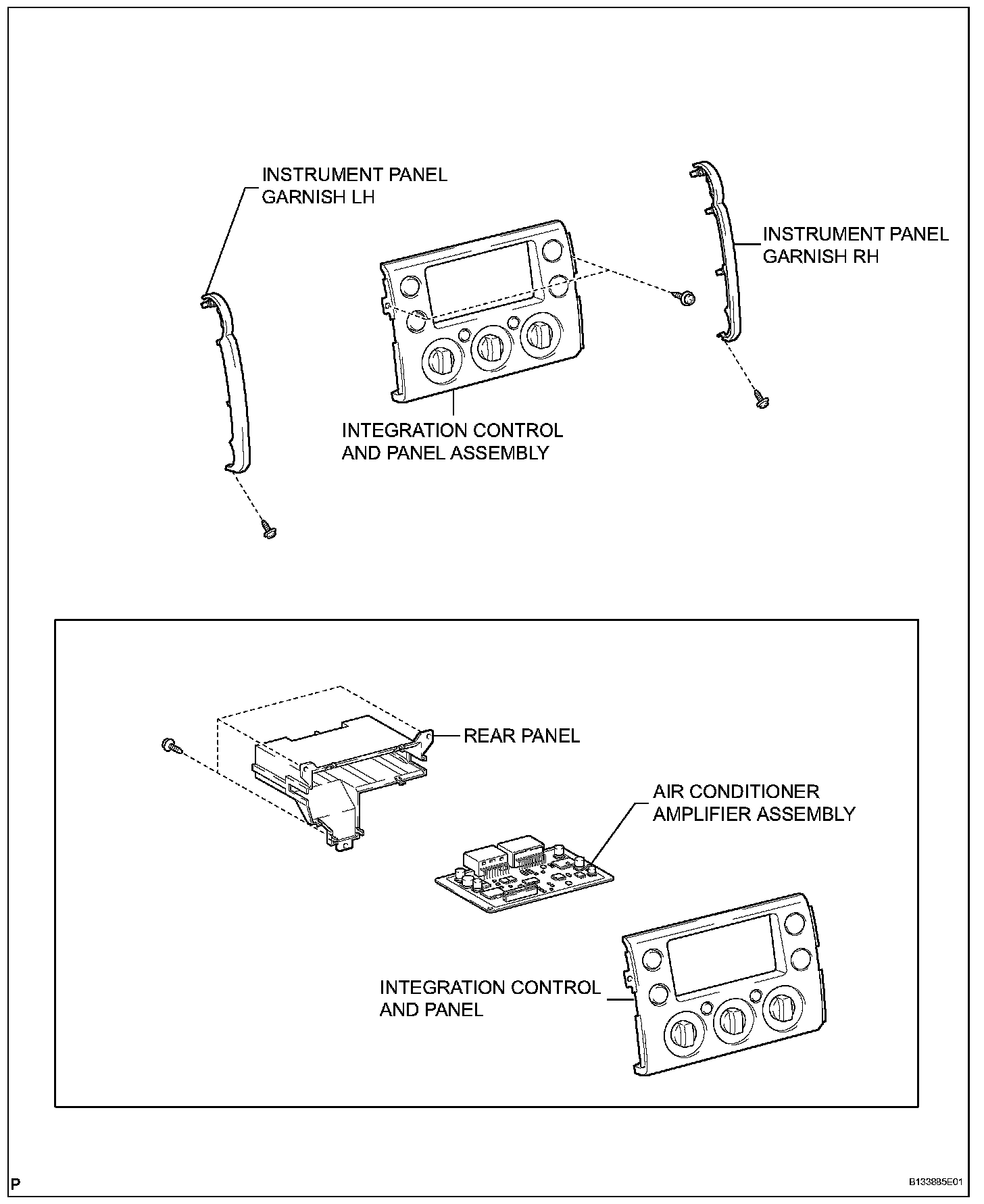

INTEGRATION CONTROL AND PANEL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE INSTRUMENT PANEL GARNISH LH
3. REMOVE INSTRUMENT PANEL GARNISH RH

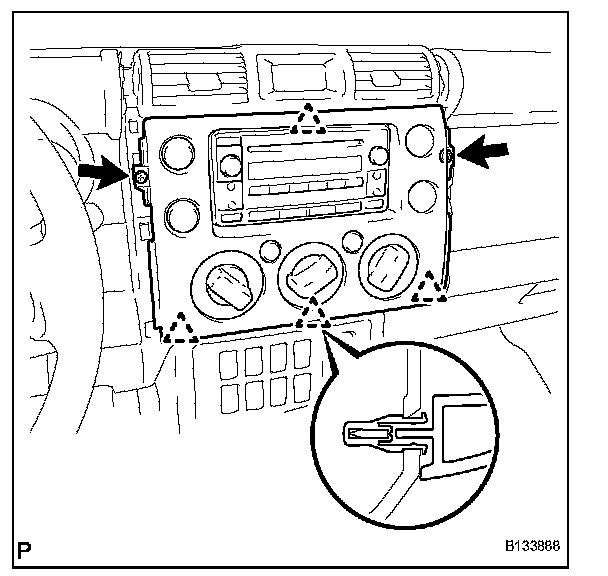

4. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
a. Remove the 2 screws.
b. Disengage the 4 clips and remove the integration control assembly.
c. Disconnect the 3 connectors.

INSTALLATION

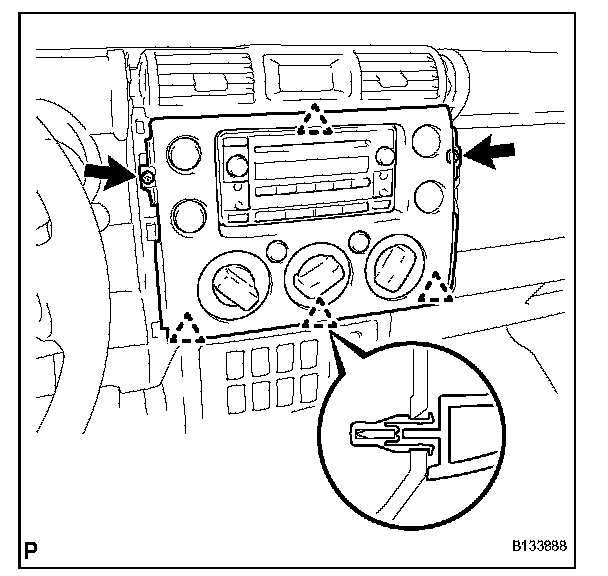

1. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
a. Connect the 3 connectors.
b. Engage the 4 clips and install the integration control assembly.
c. Install the 2 screws.

2. INSTALL INSTRUMENT PANEL GARNISH LH
3. INSTALL INSTRUMENT PANEL GARNISH RH
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
