Air Flow Meter/Sensor: Service and Repair

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE V-BANK COVER

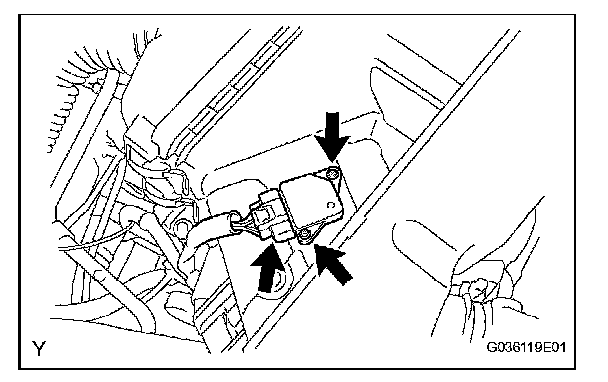

3. REMOVE MASS AIR FLOW METER

a. Disconnect the connector.
b. Remove the 2 screws, then remove the mass air flow meter.

INSTALLATION

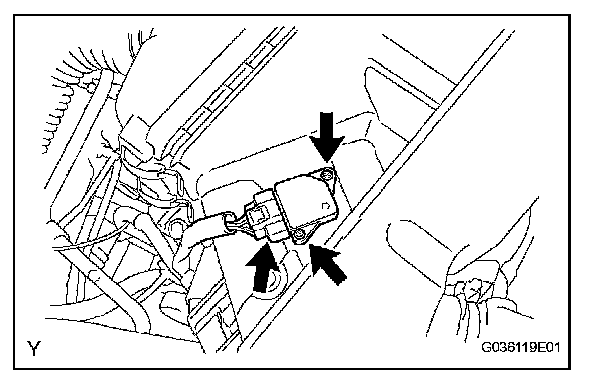

1. INSTALL MASS AIR FLOW METER

a. Install the mass air flow meter with 2 screws.
b. Connect the connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)

3. INSTALL V-BANK COVER
