How to Proceed With Troubleshooting
HOW TO PROCEED WITH TROUBLESHOOTING HINT: ^
The ECM of this system is connected to the CAN communication system. Therefore, before starting troubleshooting, make sure that there is no trouble in the CAN communication system.
^
*: Use the intelligent tester.

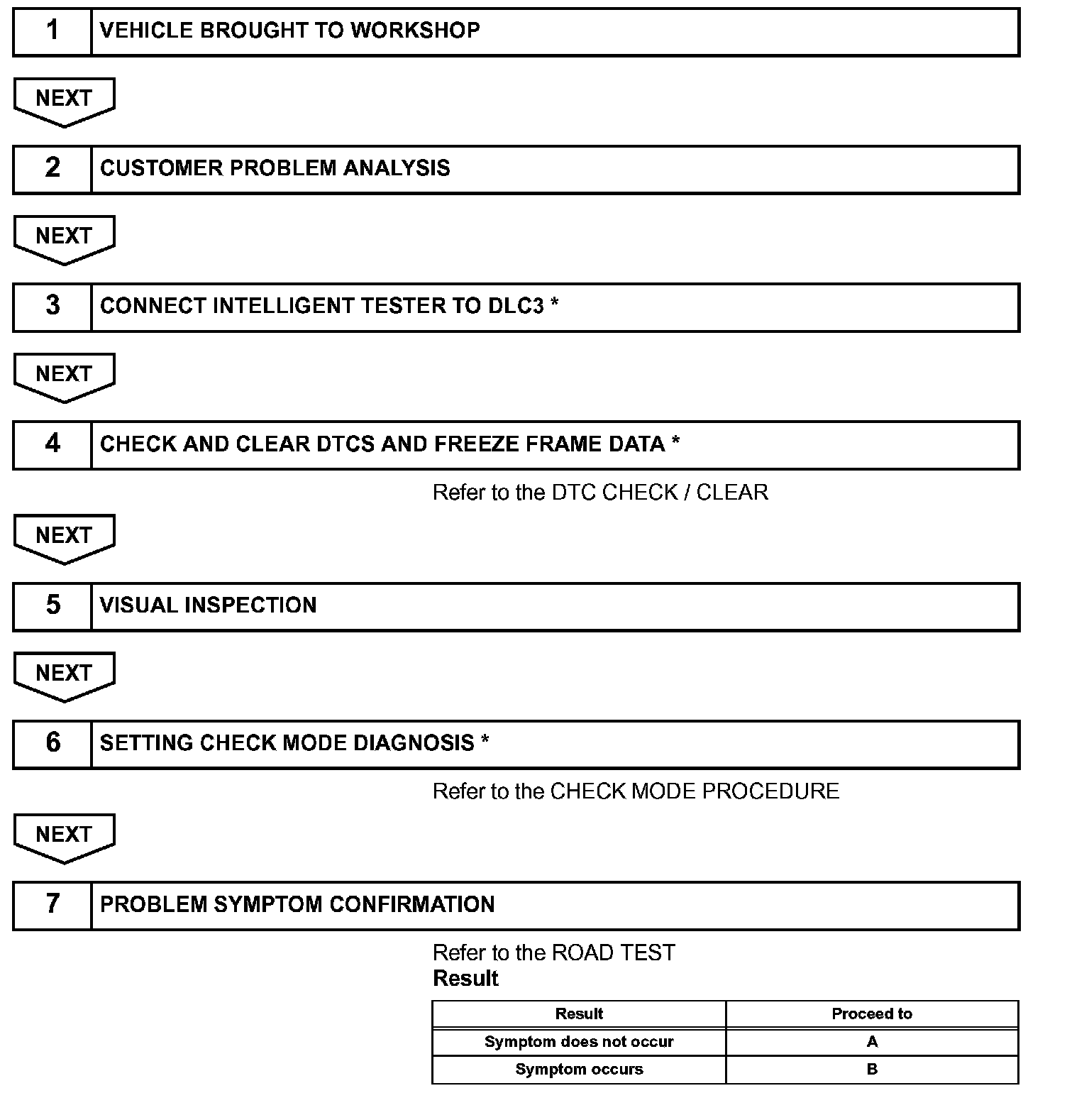

Steps 1-7(Part 1):

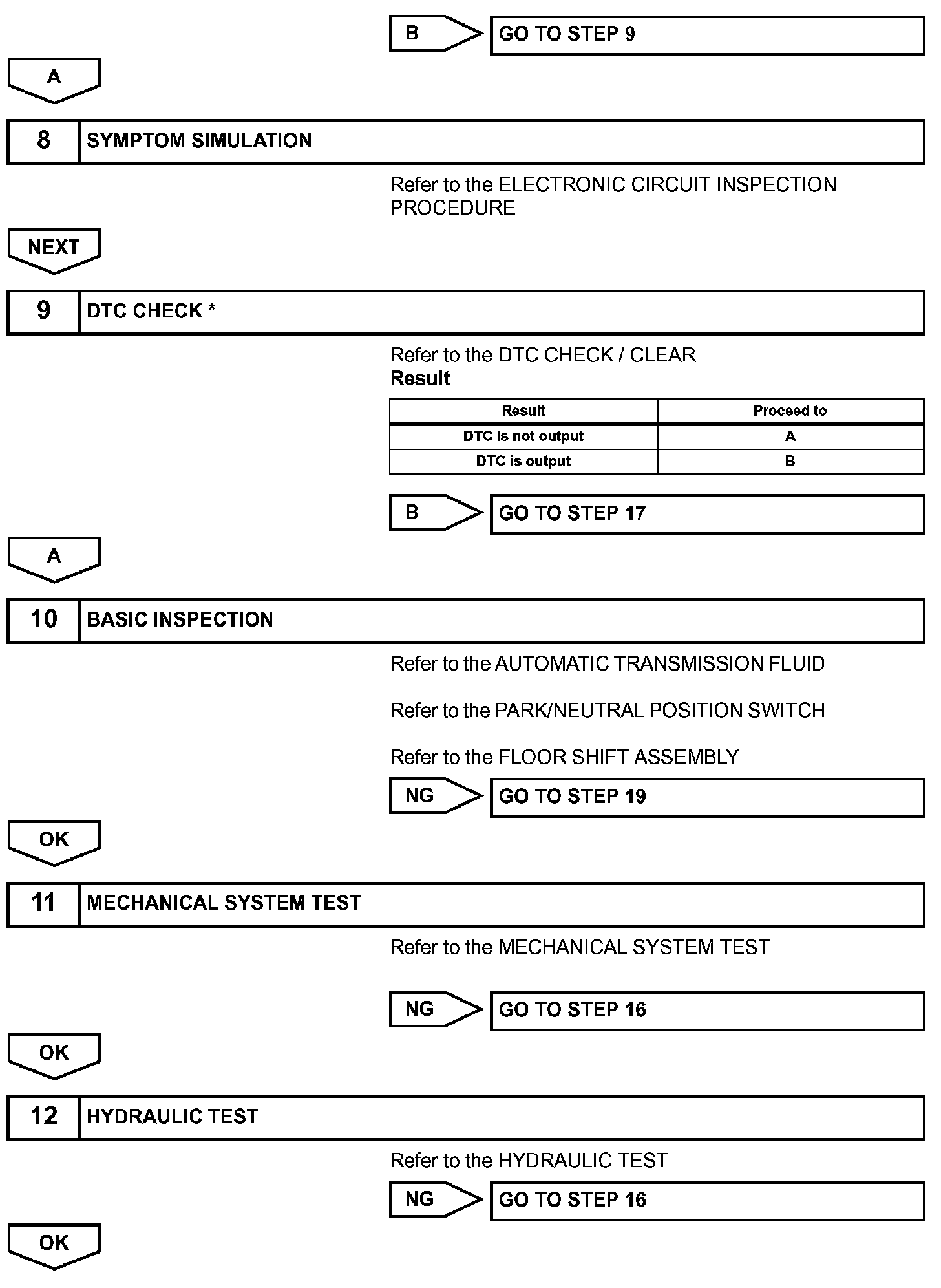

Steps 7(Part 2)-12:

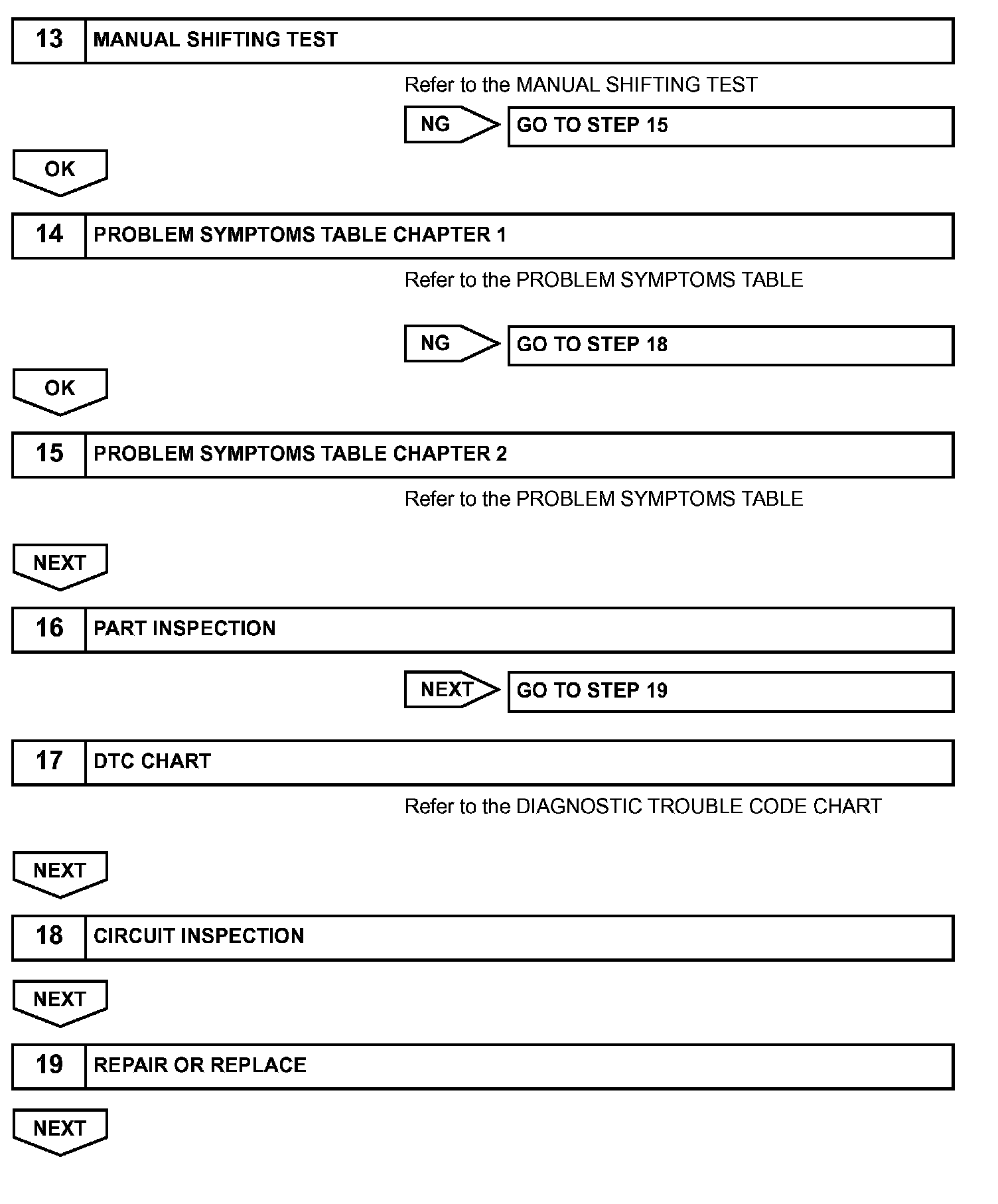

Steps 13-19:
Step 20:
