Oil Pan, Engine

OIL PAN

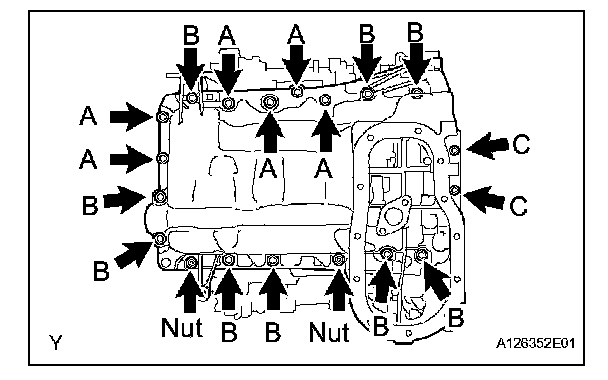

Install the oil pan with the 17 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque:
10 mm (0.39 in.) head 9.0 N*m (92 kgf*cm, 80 in.*lbf.)
12 mm (0.47 in.) head 24 N*m (245 kgf*cm, 18 ft.*lbf.)

NO. 2 OIL PAN

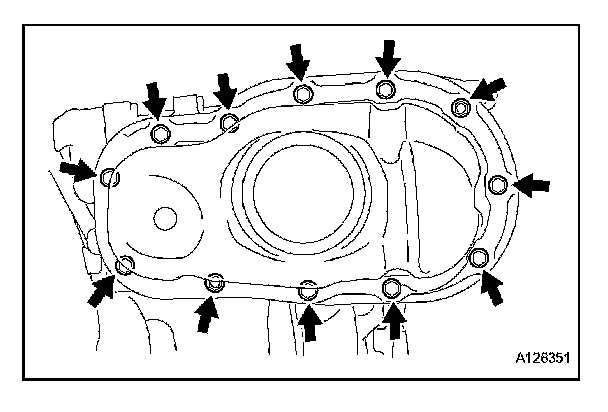

Install the No. 2 oil pan with the 10 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque:
Bolt 9.0 N*m (92 kgf*cm, 80 in.*lbf.)
Nut 10 N*m (102 kgf*cm, 7.4 ft.*lbf.)
