Removal and Replacement

Generator:

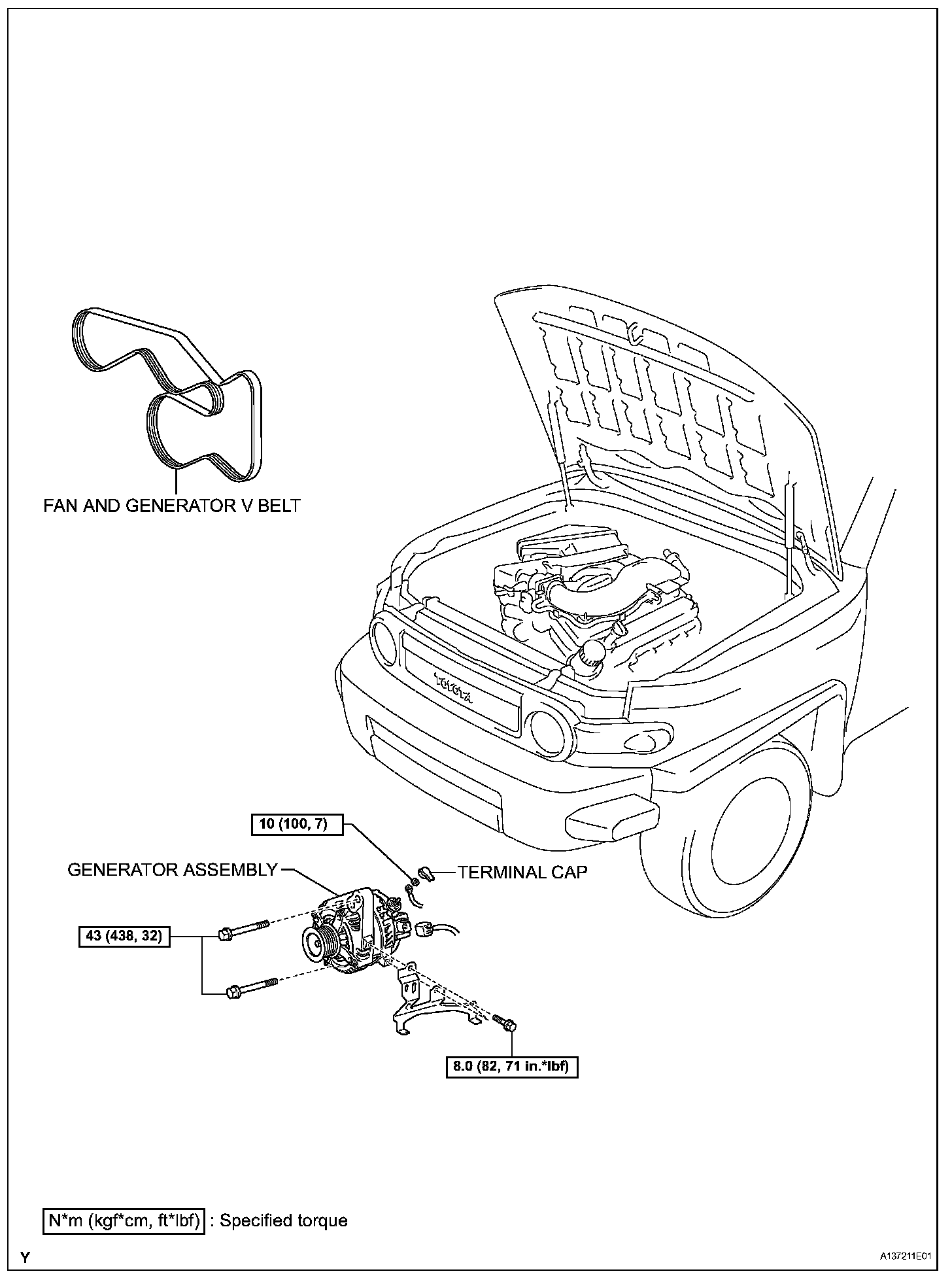

GENERATOR

REMOVAL

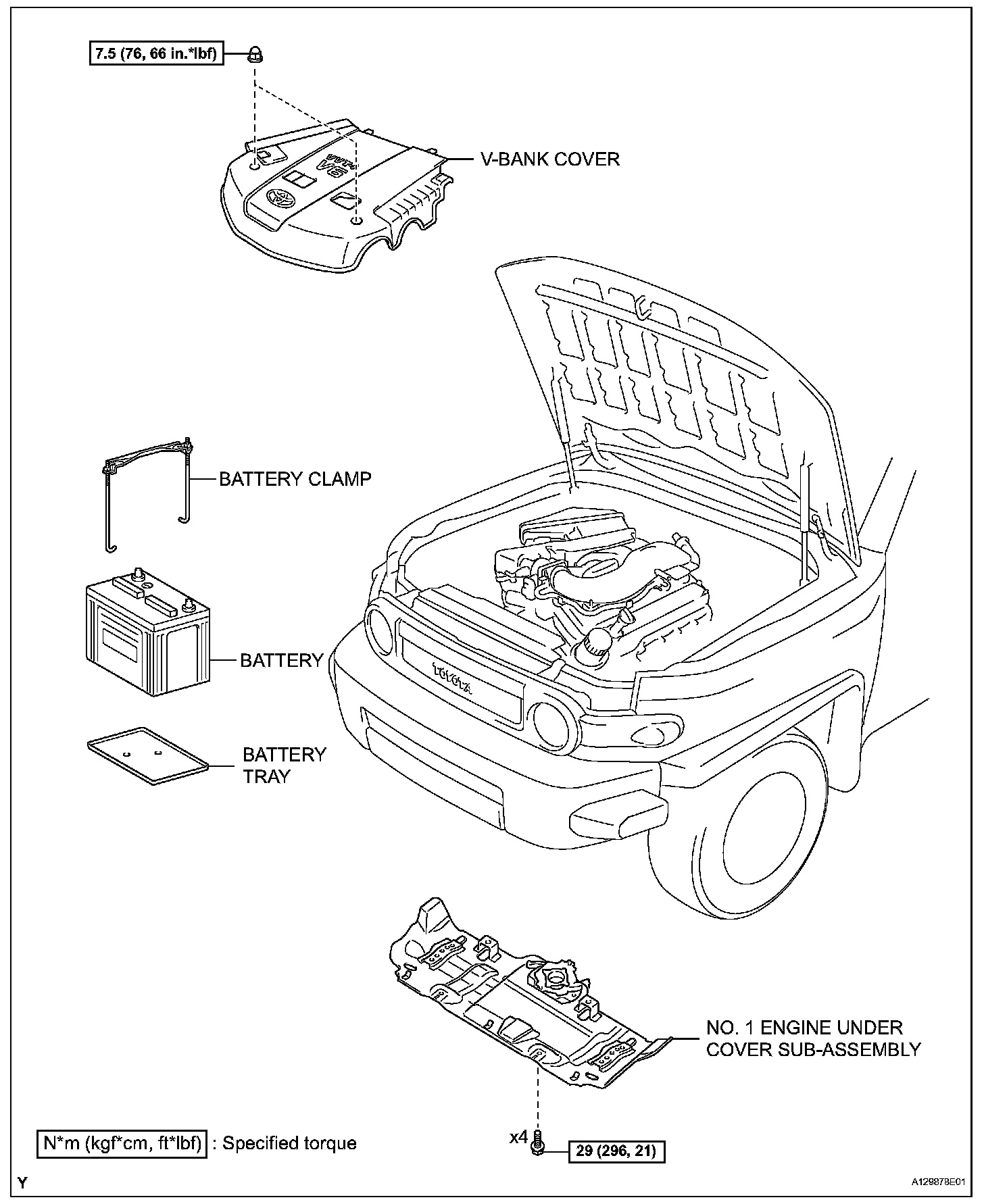

1. REMOVE BATTERY
2. REMOVE V-BANK COVER
3. REMOVE NO. 1 ENGINE UNDER COVER SUBASSEMBLY
4. REMOVE FAN AND GENERATOR V BELT
5. REMOVE GENERATOR ASSEMBLY

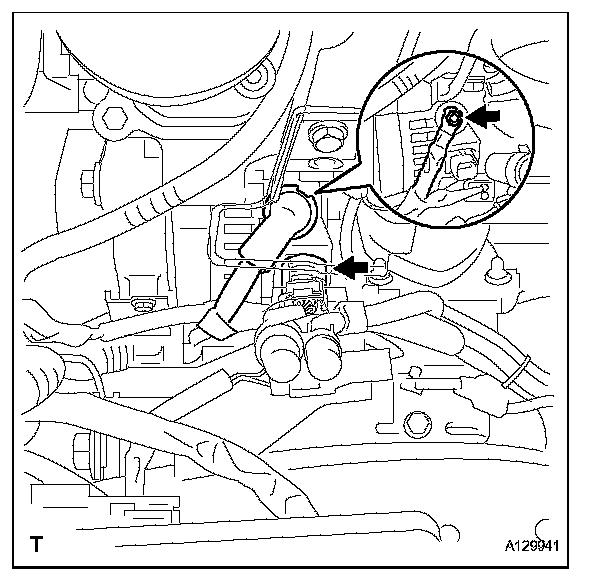

a. Disconnect the wire harness.
1. Remove the bolt and wire harness stay.
2. Disconnect the connector from the generator assembly.

3. Remove the terminal cap and nut.
4. Disconnect the wire harness from terminal B.

b. Remove the 2 bolts, then separate the wire harness clamp bracket from the generator assembly.

c. Remove the 2 bolts, then remove the generator assembly.

INSTALLATION

1. INSTALL GENERATOR ASSEMBLY
a. Install the generator assembly with the 2 bolts.

Torque: 43 N.m (438 kgf.cm, 32 ft.lbf)

b. Install the wire harness clamp bracket with the 2 bolts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

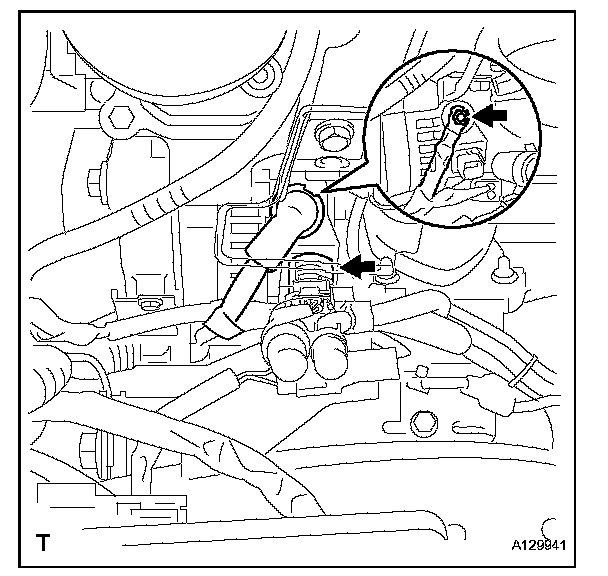

c. Connect the wire harness.
1. Connect the wire harness to terminal B and install the nut.

Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

2. Connect the connector to the generator assembly.

3. Install the wire harness stay with the bolt.

Torque: 5.8 N.m (59 kgf.cm, 51 in.lbf)

2. INSTALL FAN AND GENERATOR V BELT
3. INSTALL NO. 1 UNDER COVER SUB-ASSEMBLY
4. INSTALL V-BANK COVER
5. INSTALL BATTERY

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
