Power Window Master Switch

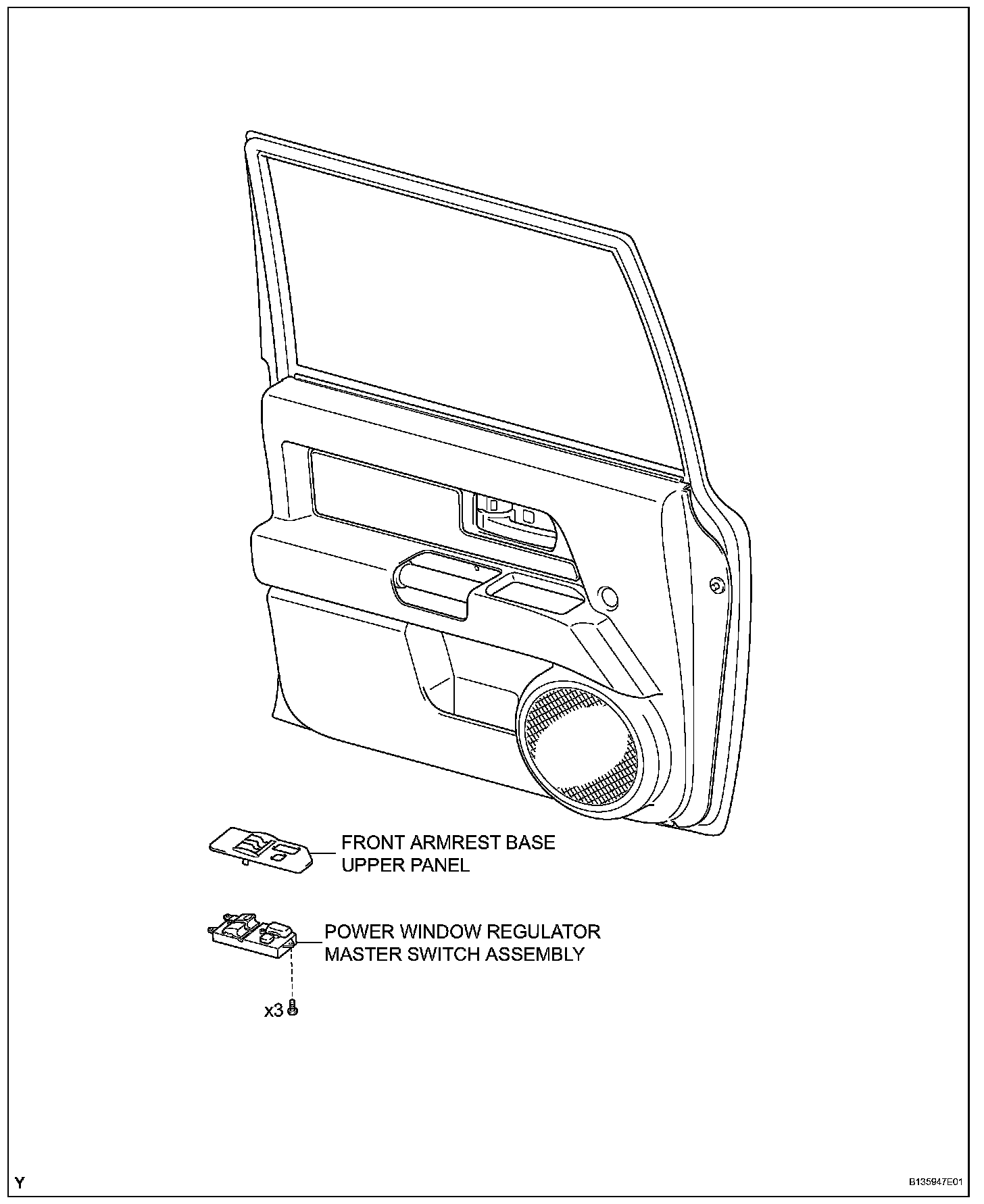

POWER WINDOW MASTER SWITCH

Power Window Master Switch:





REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT ARMREST BASE UPPER PANEL

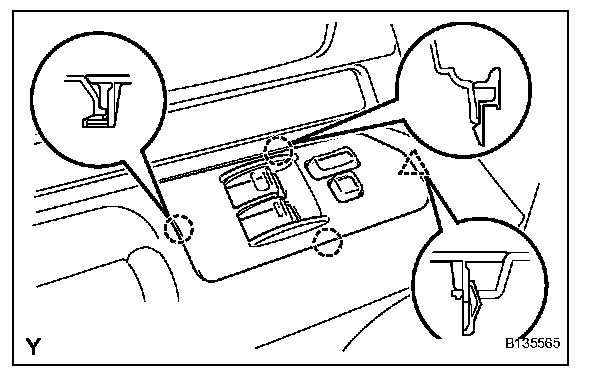

a. Disengage the 3 claws and clip and remove the front armrest base upper panel.
b. Disconnect the connector.

3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

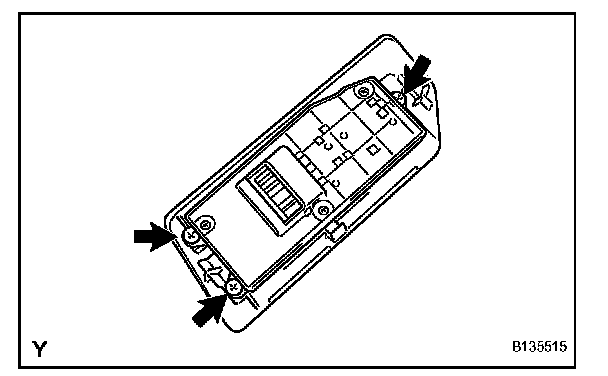

a. Remove the 3 screws and the power window regulator master switch.

INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY





a. Install the power window regulator master switch with the 3 screws.

2. INSTALL FRONT ARMREST BASE UPPER PANEL





a. Connect the connector.

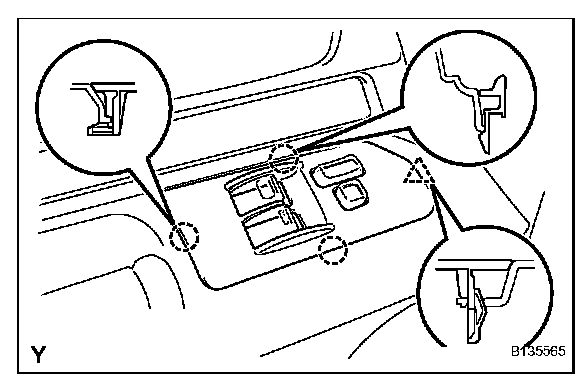

b. Engage the 3 claws and clip and install the front armrest base upper panel.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
