Back Window Support

BACK WINDOW SUPPORT

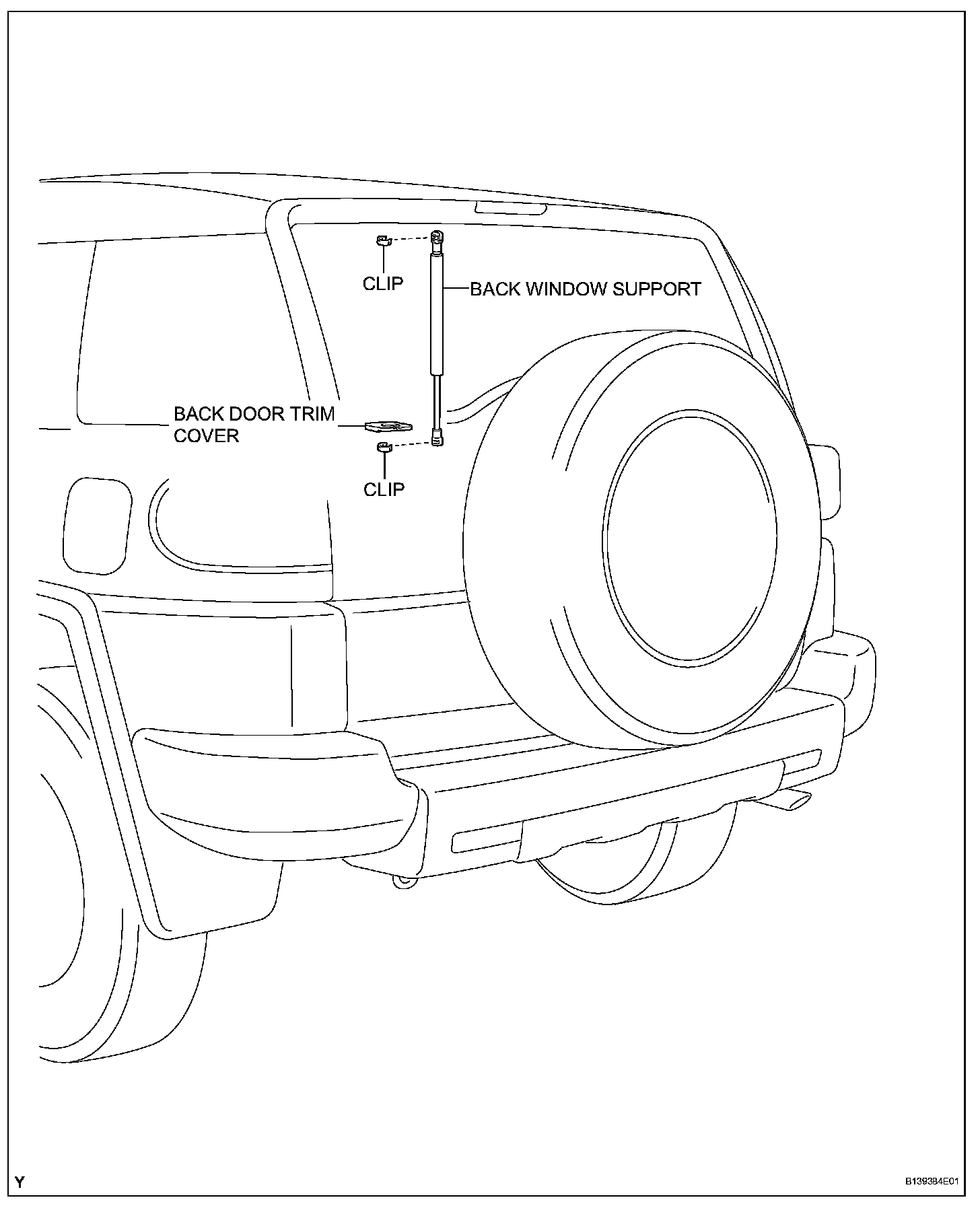

Back Window Support:





REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. REMOVE BACK DOOR TRIM COVER
2. REMOVE BACK WINDOW SUPPORT





a. Using a screwdriver with its tip wrapped in protective tape, remove the 2 stop rings and back window support.

NOTICE:
- Do not touch the rod of the back window support with gloves, to avoid fibers from adhering.
- When foreign matter adheres to the rod, it prevents the rod from moving smoothly and reduces its holding power.

HINT: Support the back door glass by hand while removing the back window support.

INSTALLATION

1. INSTALL BACK WINDOW SUPPORT





a. Install the 2 stop rings onto the back window support.
b. Install the back window support.

2. INSTALL BACK DOOR TRIM COVER
