Active Test

ACTIVE TEST

NOTE: Beware that if the connector to the intelligent tester becomes disconnected or if a communication error occurs during the ACTIVE TEST, the vehicle could become inoperative (the READY light goes off).

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch to the ON position and turn the intelligent tester on.
c. Select the following menu items: DIAGNOSIS / OBD / MOBD / HV ECU / ACTIVE TEST.




d. According to the display on the tester, perform ACTIVE TEST.

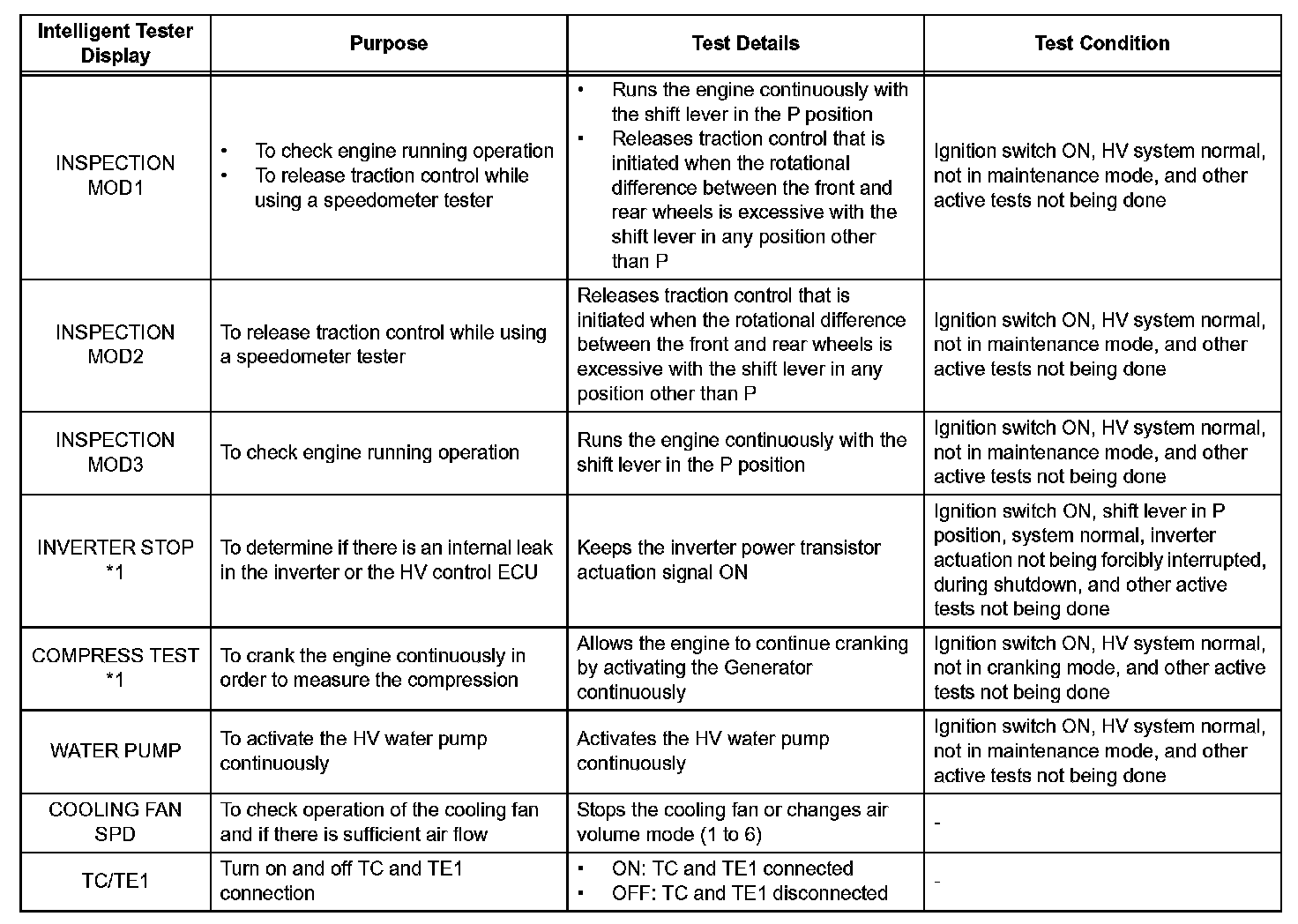

NOTE: For *1 in the chart, the intelligent tester displays a communication error and the vehicle's READY light turns off when the ACTIVE TEST is completed. If using the tester again, turn the ignition switch off and then put the vehicle into the READY-on state to restart the tester.
