CAN Communication System

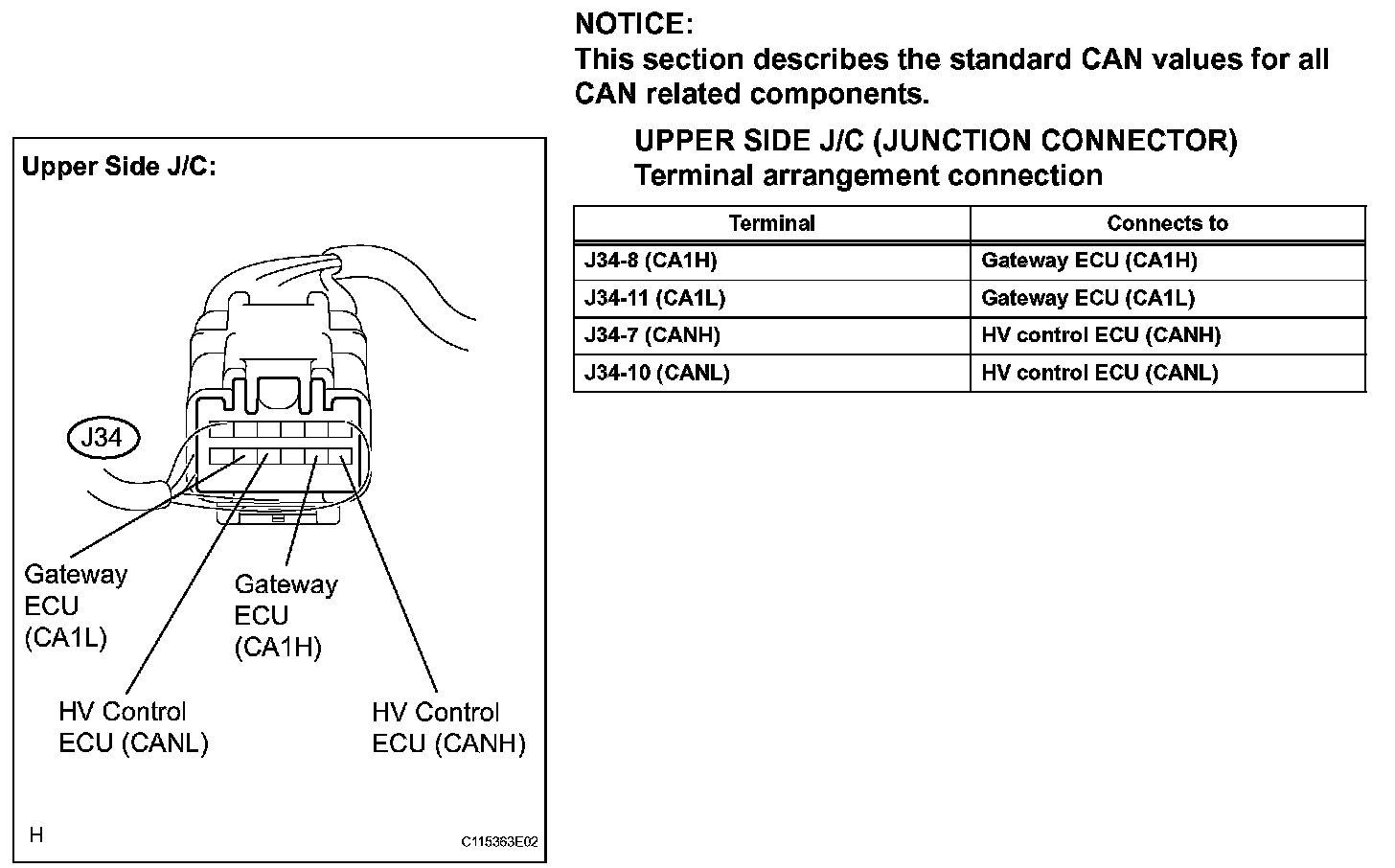

Terminals Of Control Module/Pinouts - Upper Side J/C (Junction Connector):

Terminals Of Control Module/Pinouts - Lower Side J/C:

Terminals Of Control Module/Pinouts - CAN-H J/C:

Terminals Of Control Module/Pinouts - CAN-L J/C:

Terminals Of Control Module/Pinouts - DLC3 (Part 1):

Terminals Of Control Module/Pinouts - DLC3 (Part 2):

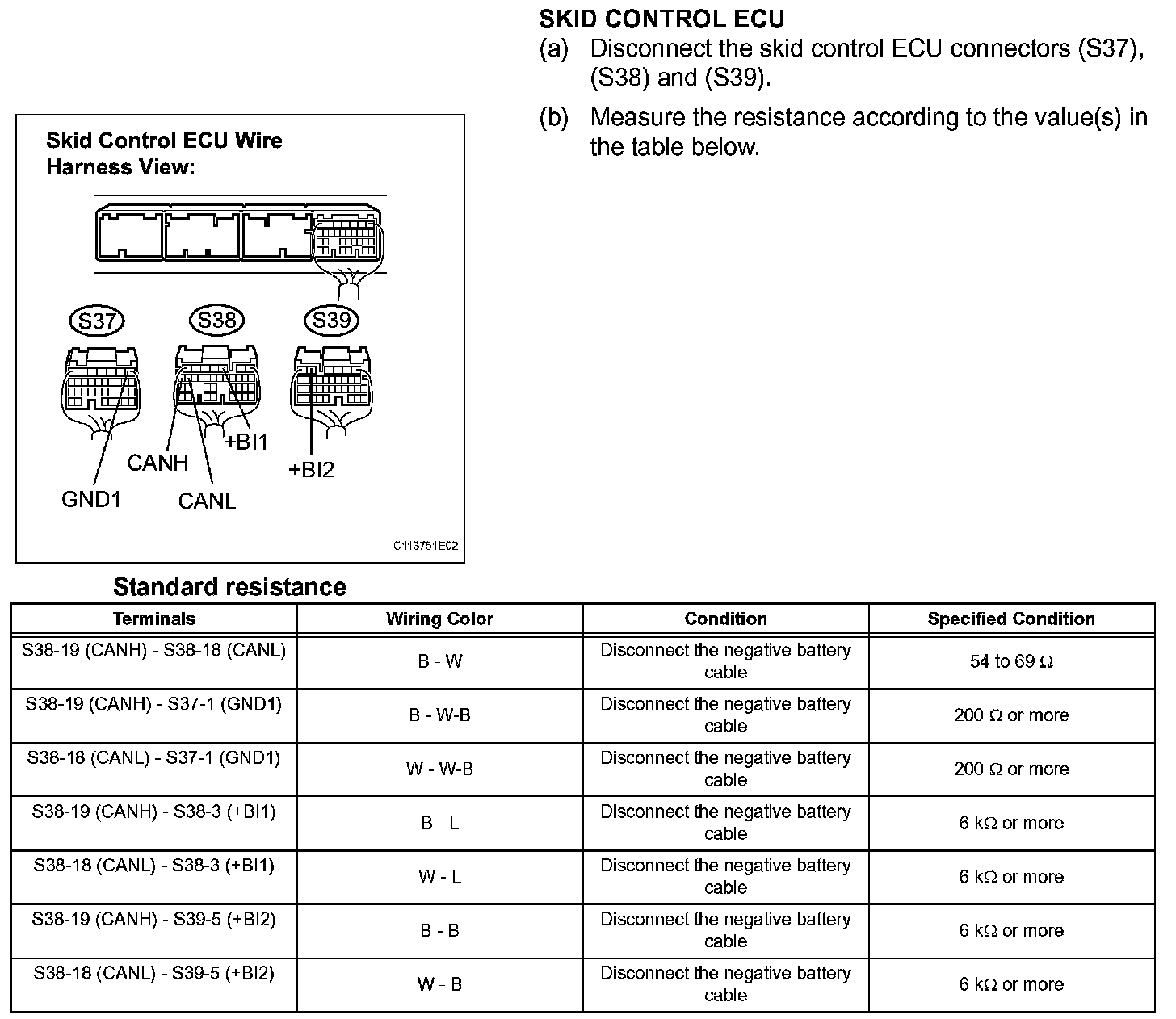

Terminals Of Control Module/Pinouts - Skid Control ECU:

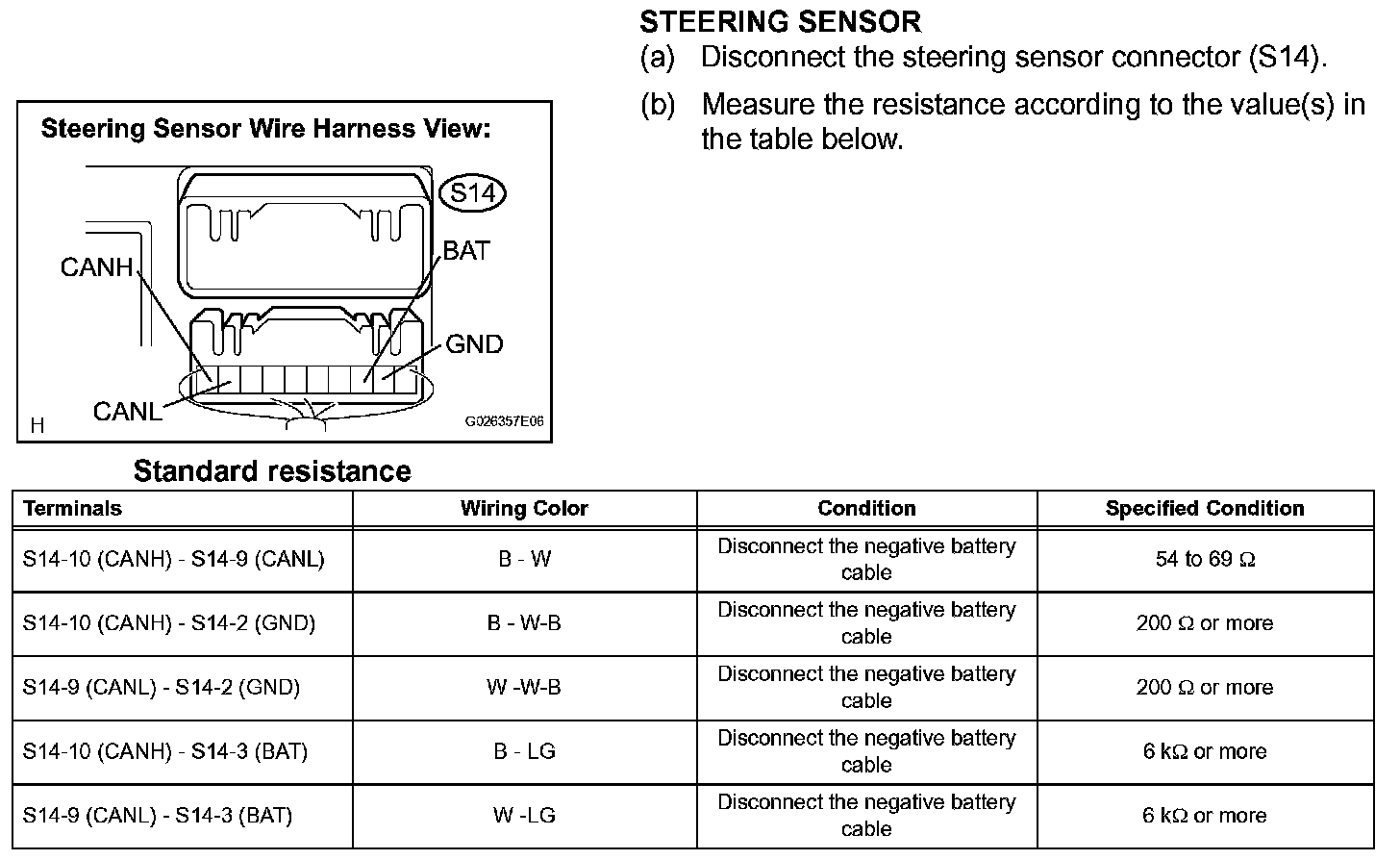

Terminals Of Control Module/Pinouts - Steering Sensor:

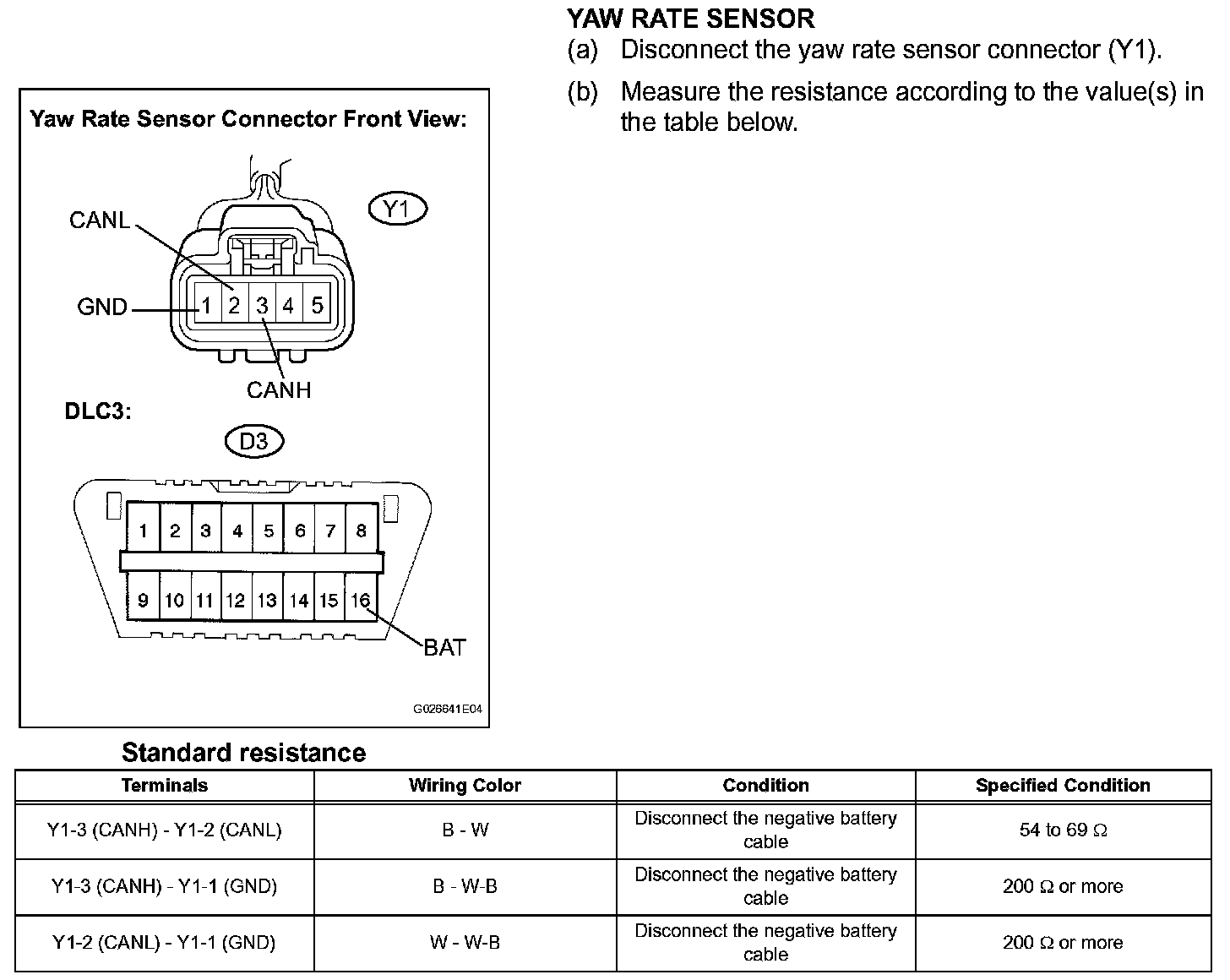

Terminals Of Control Module/Pinouts - Yaw Rate Sensor (Part 1):

Terminals Of Control Module/Pinouts - Yaw Rate Sensor(Part 2):

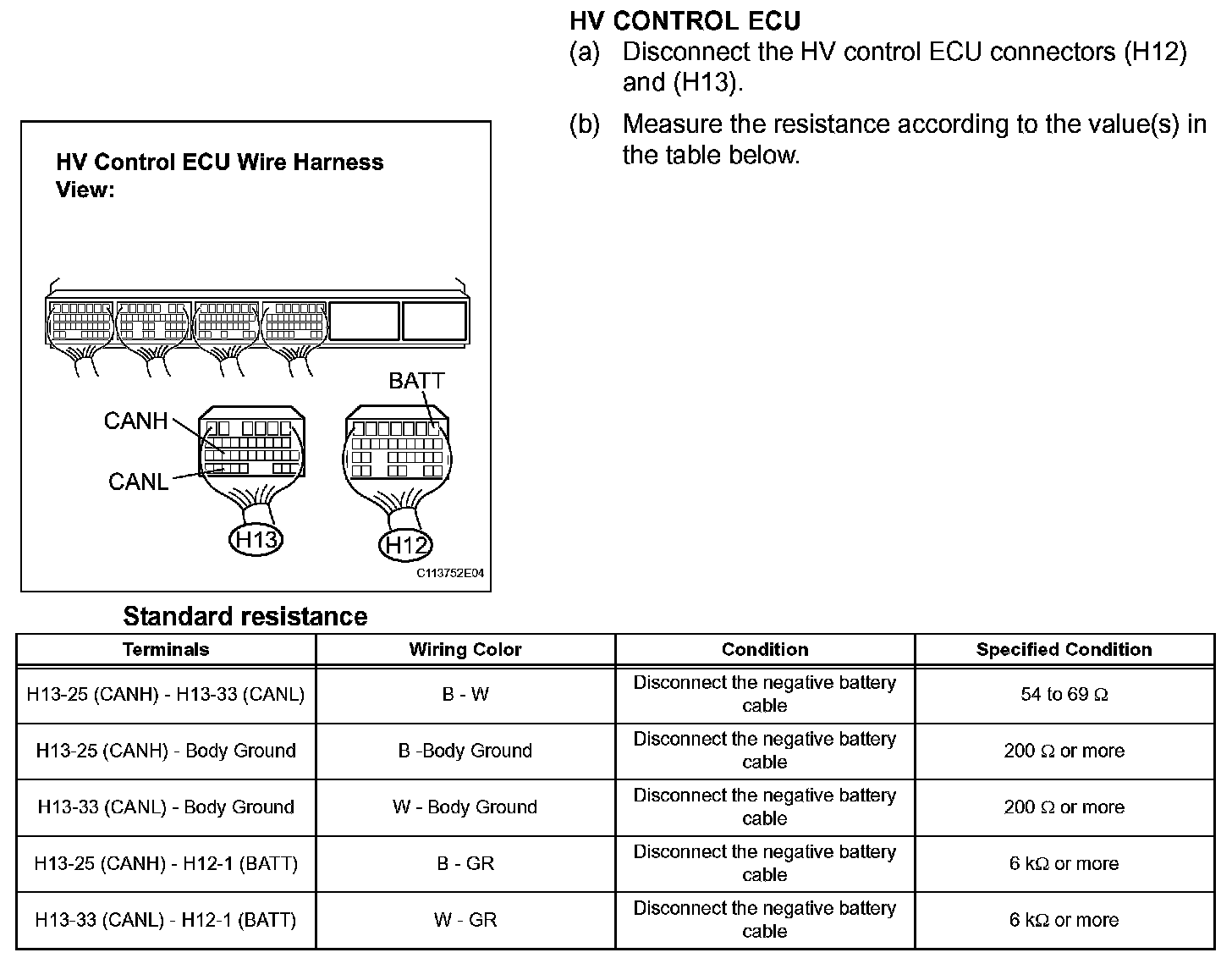

Terminals Of Control Module/Pinouts - HV Control ECU:

Terminals Of Control Module/Pinouts - Power Steering ECU (Part 1):

Terminals Of Control Module/Pinouts - Power Steering ECU (Part 2):

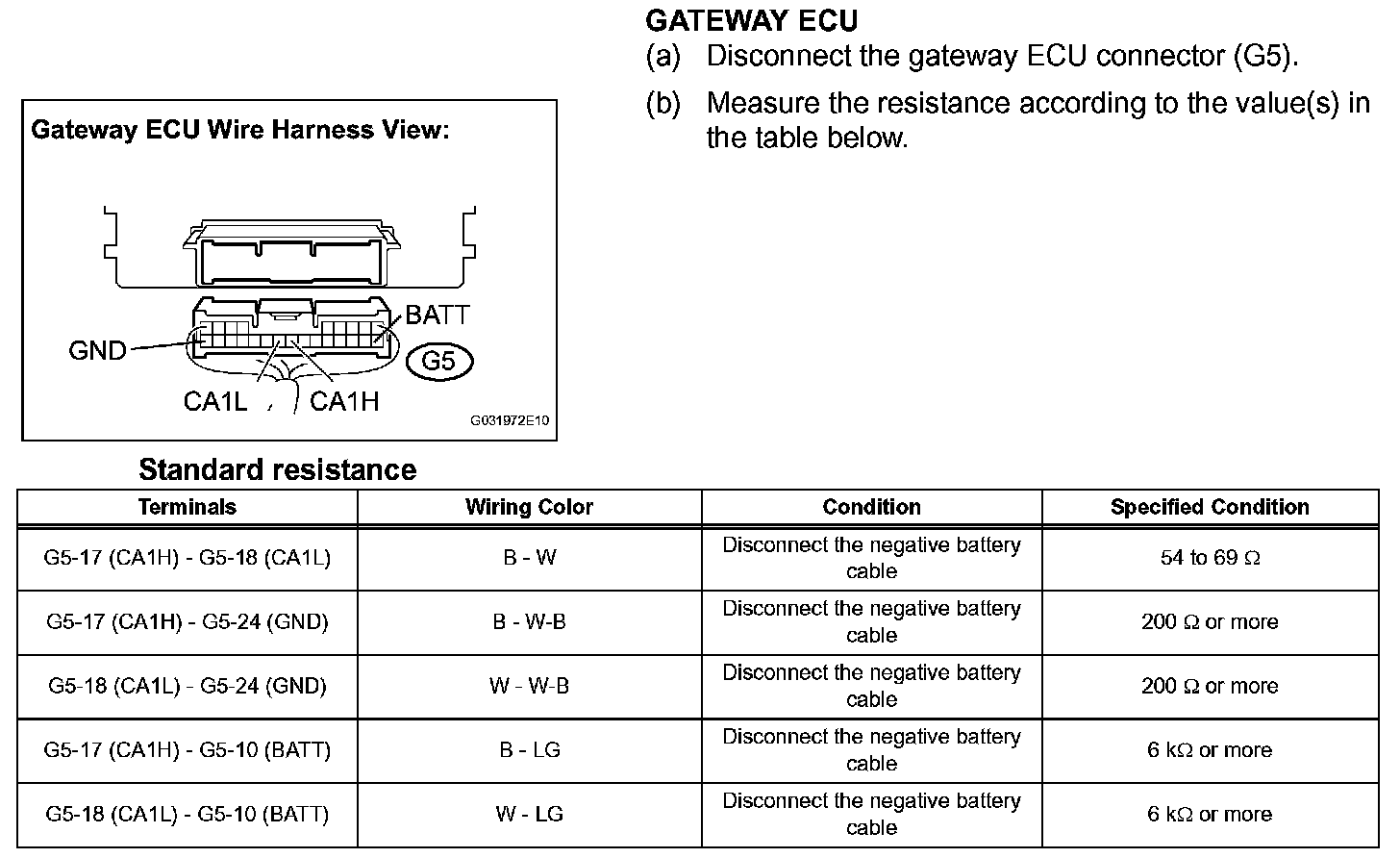

Terminals Of Control Module/Pinouts - Gateway ECU:
