Alignment

Alignment
FRONT WHEEL ALIGNMENT

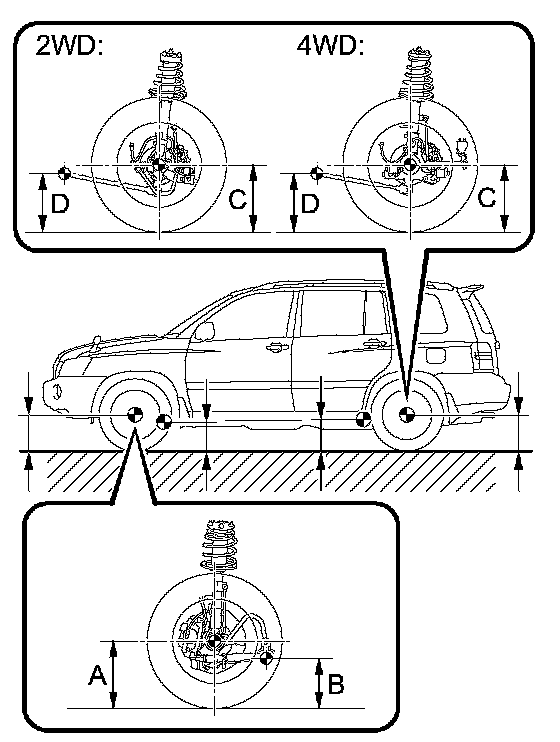

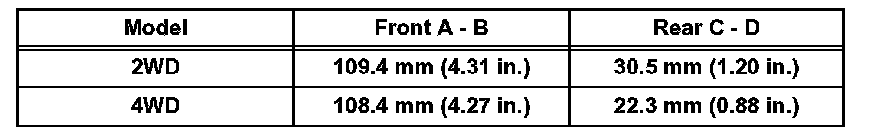

Vehicle Height:




Vehicle Height:

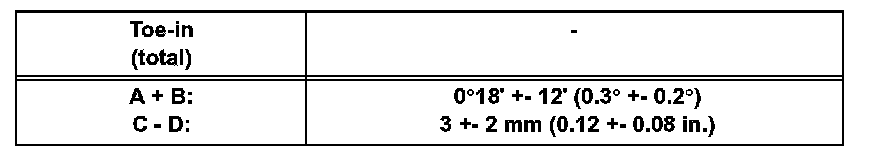

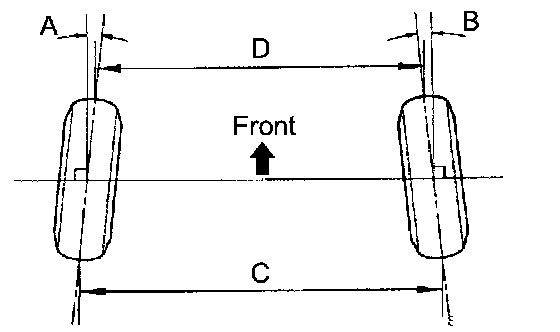

Toe-in:




Toe-in:

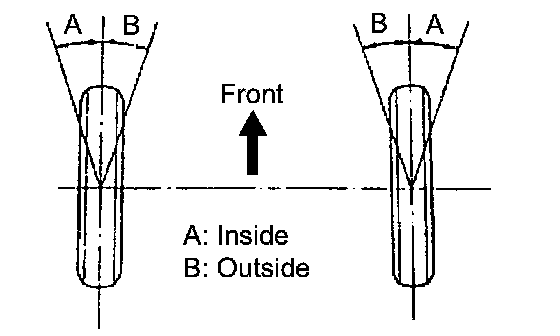

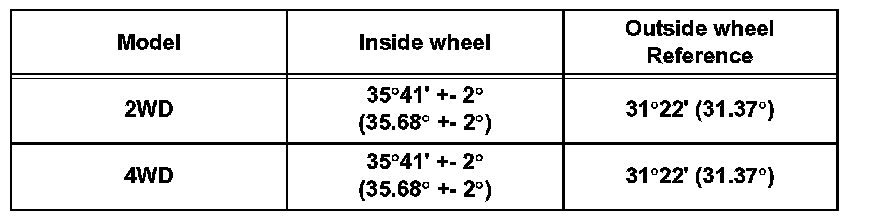

Wheel Turning Angle:




Wheel Turning Angle:

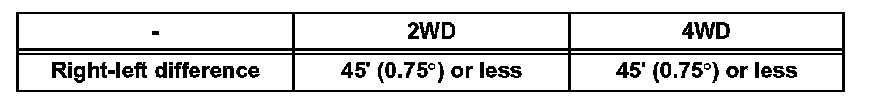

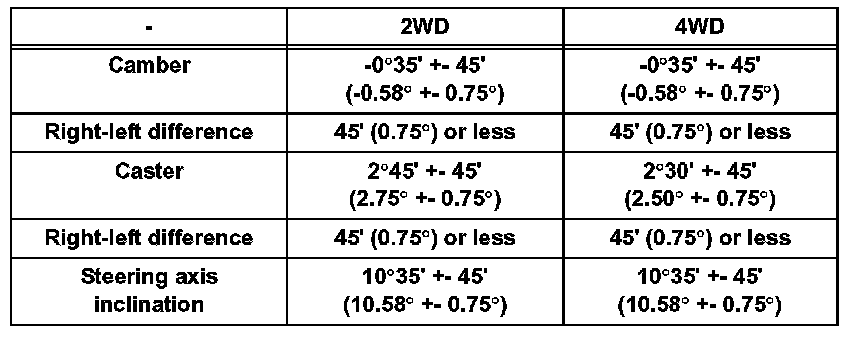

Camber, Caster And Steering Axis Inclination:




Camber, Caster And Steering Axis Inclination:






REAR WHEEL ALIGNMENT

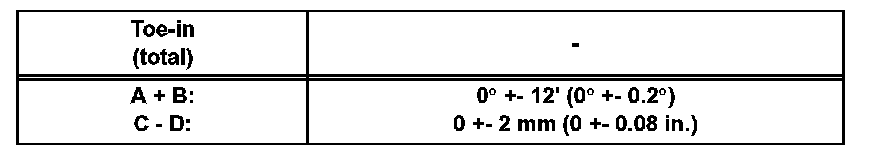

Toe-in:




Toe-in:

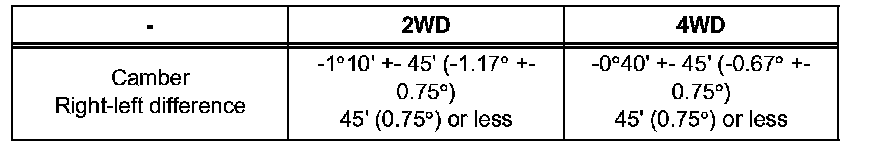

Camber:
