Drive Belt: Service and Repair

DRIVE BELT

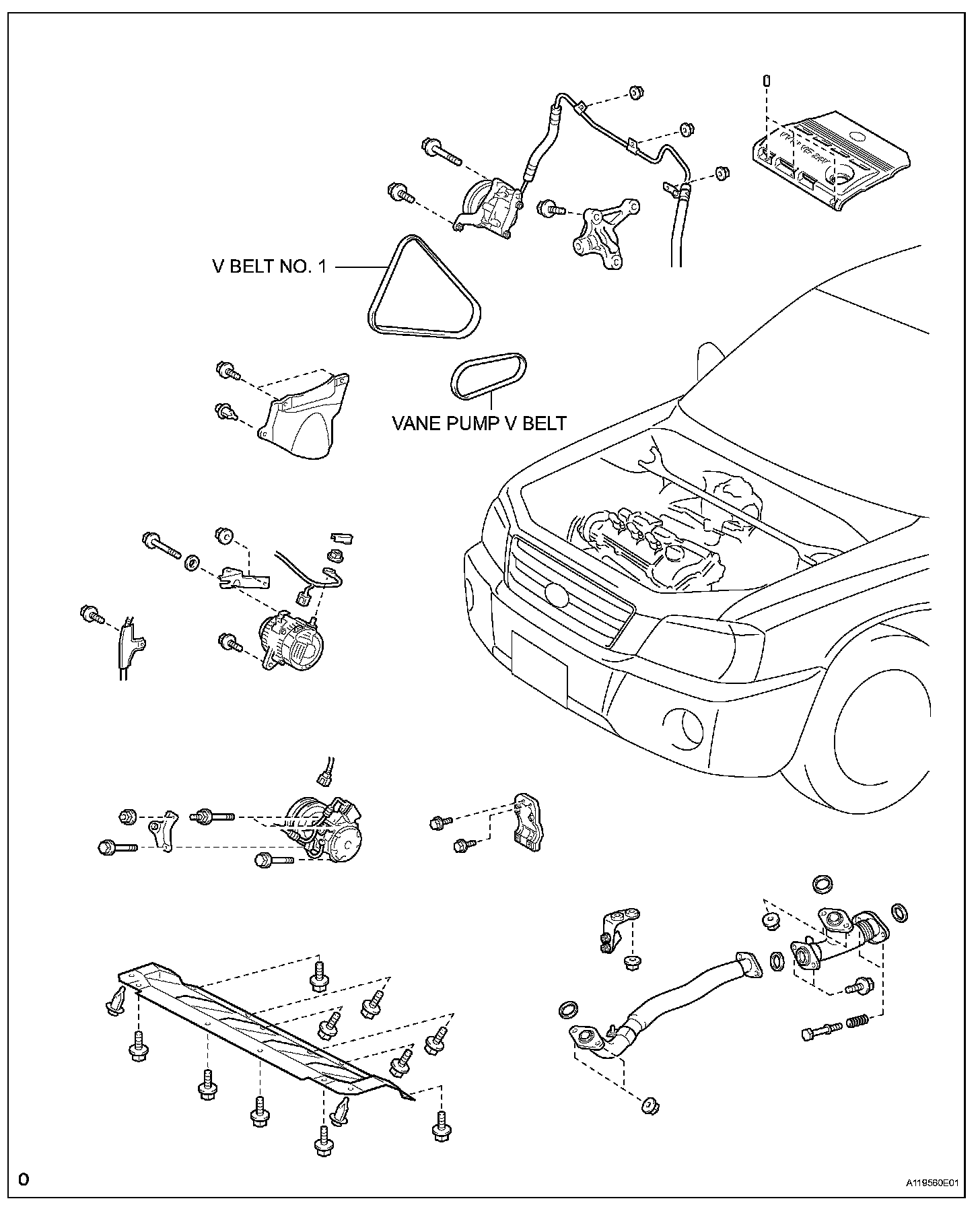

COMPONENTS (Part 1):

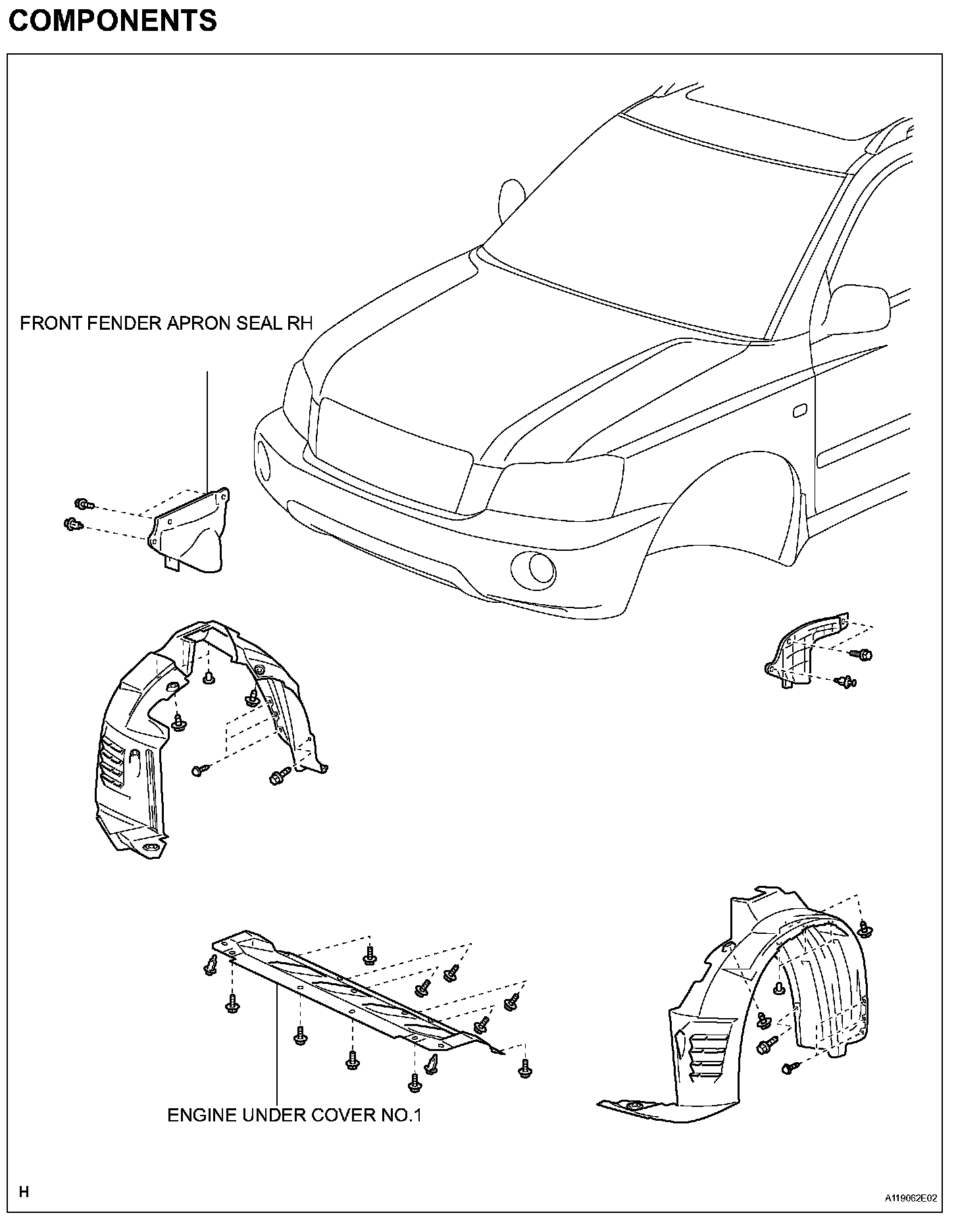

COMPONENTS (Part 2):





REMOVAL
1. REMOVE FRONT WHEEL RH
2. REMOVE ENGINE UNDER COVER NO.1
3. REMOVE FRONT FENDER APRON SEAL RH





4. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
(a) Loosen bolts A and B.
(b) Loosen adjusting bolt C and remove the belt.





5. REMOVE VANE PUMP V BELT
(a) Loosen bolts A and B, and remove the belt.

INSTALLATION





1. INSTALL VANE PUMP V BELT
(a) Install the belt on each pulley.
(b) Using a bar, adjust the belt tension and tighten bolt B.
Torque: 43 Nm (438 kgf-cm, 32 ft. lbs.)
(c) Tighten bolt A.
Torque: 43 Nm (438 kgf-cm, 32 ft. lbs.)





2. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
(a) Install the belt on each pulley.
(b) Tighten adjusting bolt C, and adjust the belt tension.
(c) First tighten bolt A, and then B.
Torque: Bolt A
58 Nm (591 kgf-cm, 43 ft. lbs.)
Bolt B
18 Nm (184 kgf-cm, 13 ft. lbs.)

3. INSPECT DRIVE BELT TENSION
4. INSTALL FRONT WHEEL RH
