Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor:

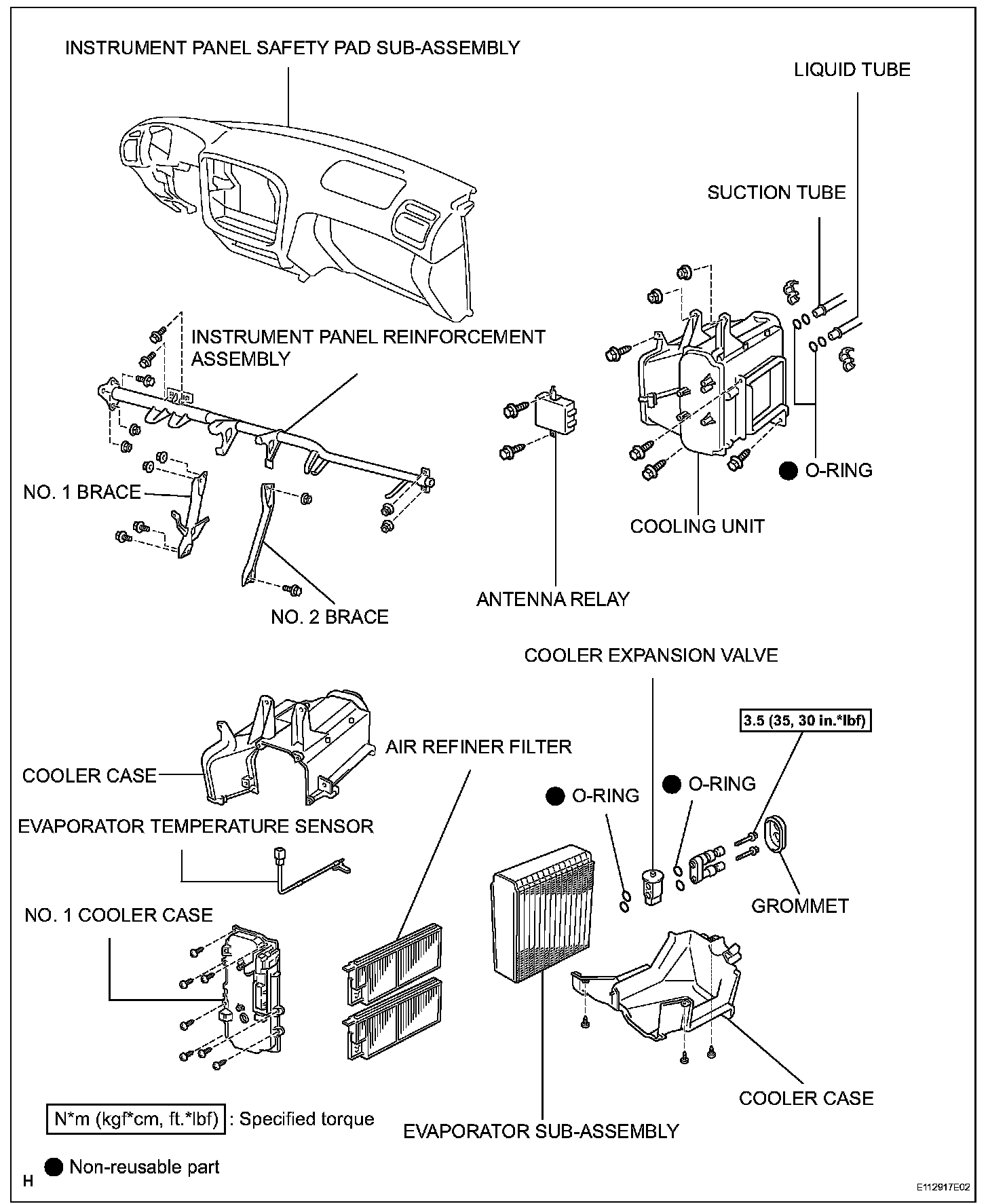

EVAPORATOR TEMPERATURE SENSOR

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE COOLING UNIT
a. Remove the cooling unit.

3. REMOVE EVAPORATOR SUB-ASSEMBLY




4. REMOVE EVAPORATOR TEMPERATURE SENSOR
a. Remove the evaporator temperature sensor from evaporator.

INSTALLATION




1. INSTALL EVAPORATOR TEMPERATURE SENSOR
a. Install the evaporator temperature sensor.

2. INSTALL EVAPORATOR SUB-ASSEMBLY
3. INSTALL COOLING UNIT
a. Install the cooling unit.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
