Front Passenger Side Jam Protection Limit / Pulse Switch Circuit
Front Passenger Side Jam Protection Limit / Pulse Switch CircuitDESCRIPTIONThe front power window regulator switch assembly RH receives the
power window switch signal from the switch to operate the front power window regulator motor assembly RH.

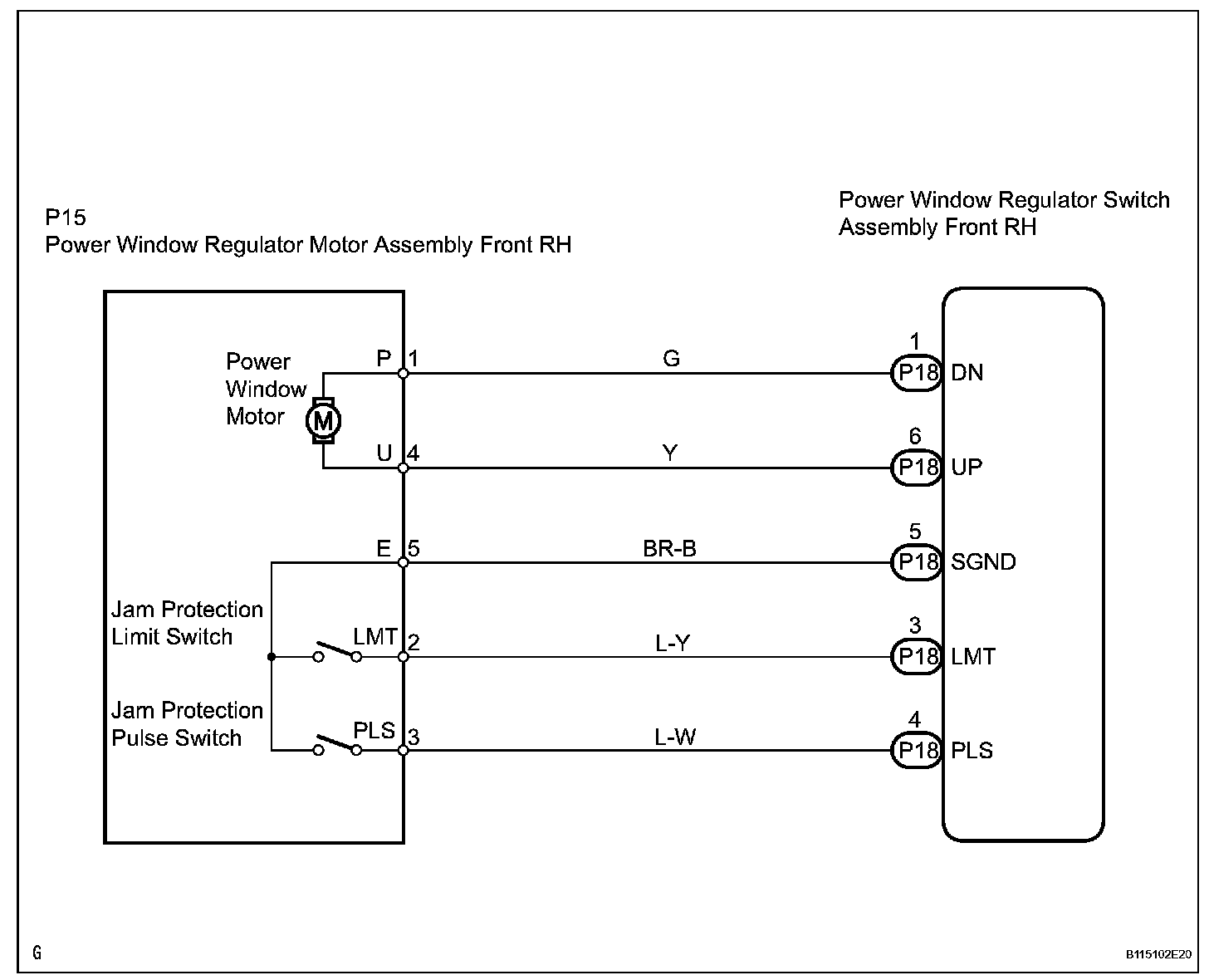

WIRING DIAGRAMWiring Diagram:

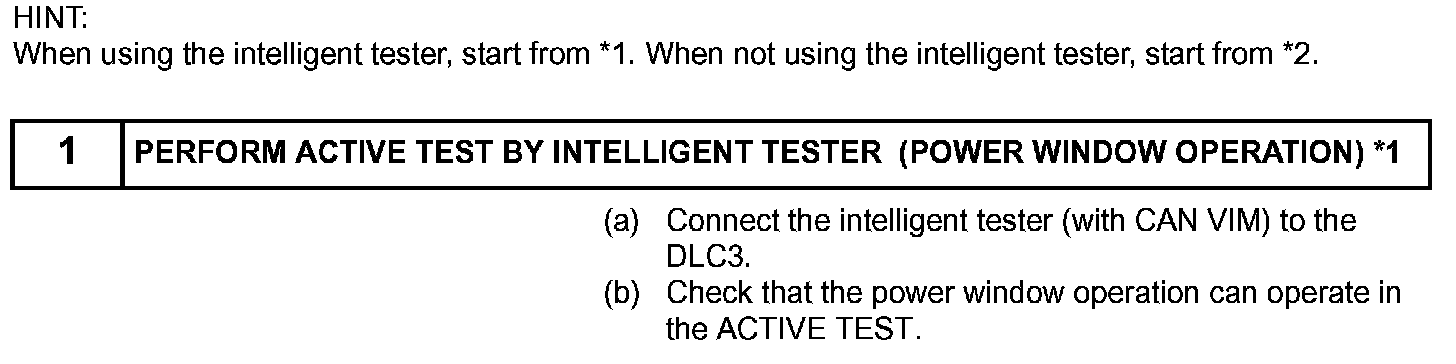

INSPECTION PROCEDUREStep 1:

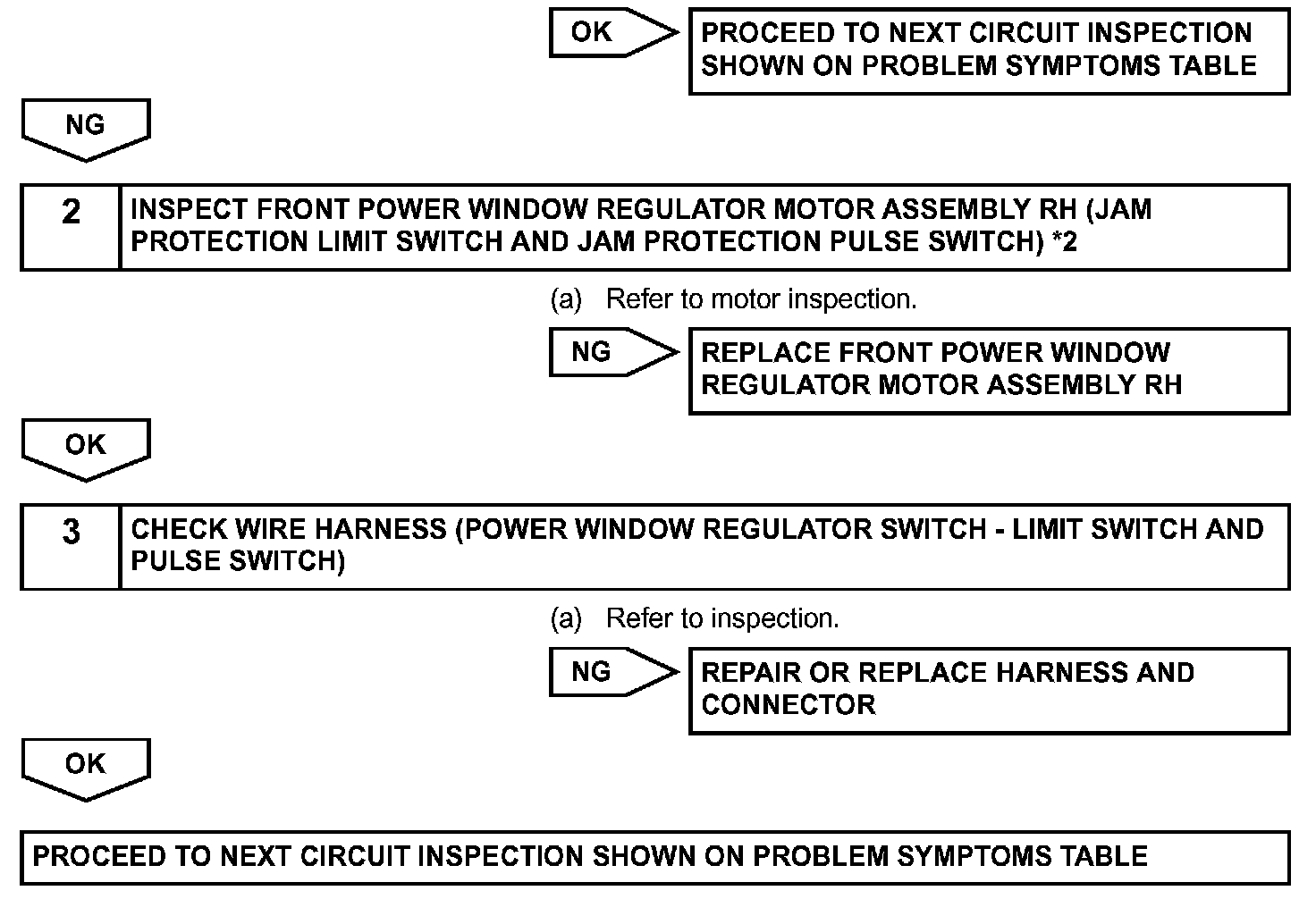

Step 1(Continued) - 3:
