Procedures

ON-VEHICLE CLEANING





1. CHECK RADIATOR ASSEMBLY

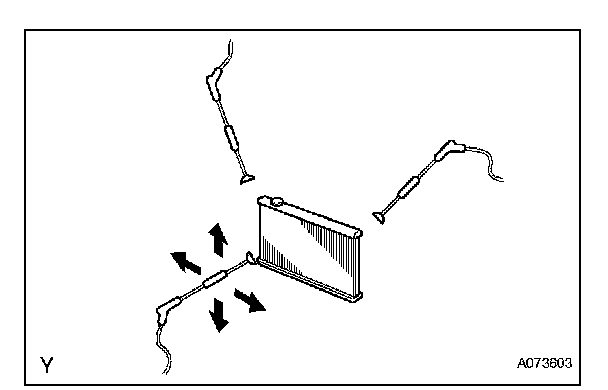

(a) If the fins are clogged, wash them with water or a steam cleaner, then dry them with compressed air.

NOTICE:

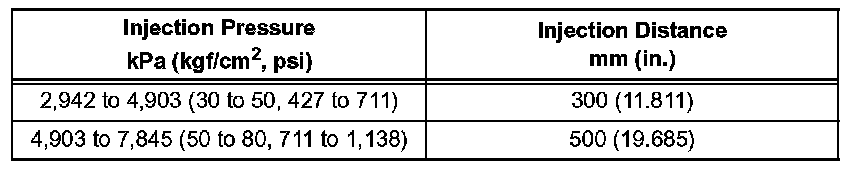

^ If the distance between the steam cleaner and core is too small, there is a possibility of damaging the fins, so keep to the following injection distances.





^ If the fins are bent, straighten them with a screwdriver or pliers.
^ Be careful not to expose electronic components to water.
