Central Control Module: Service and Repair

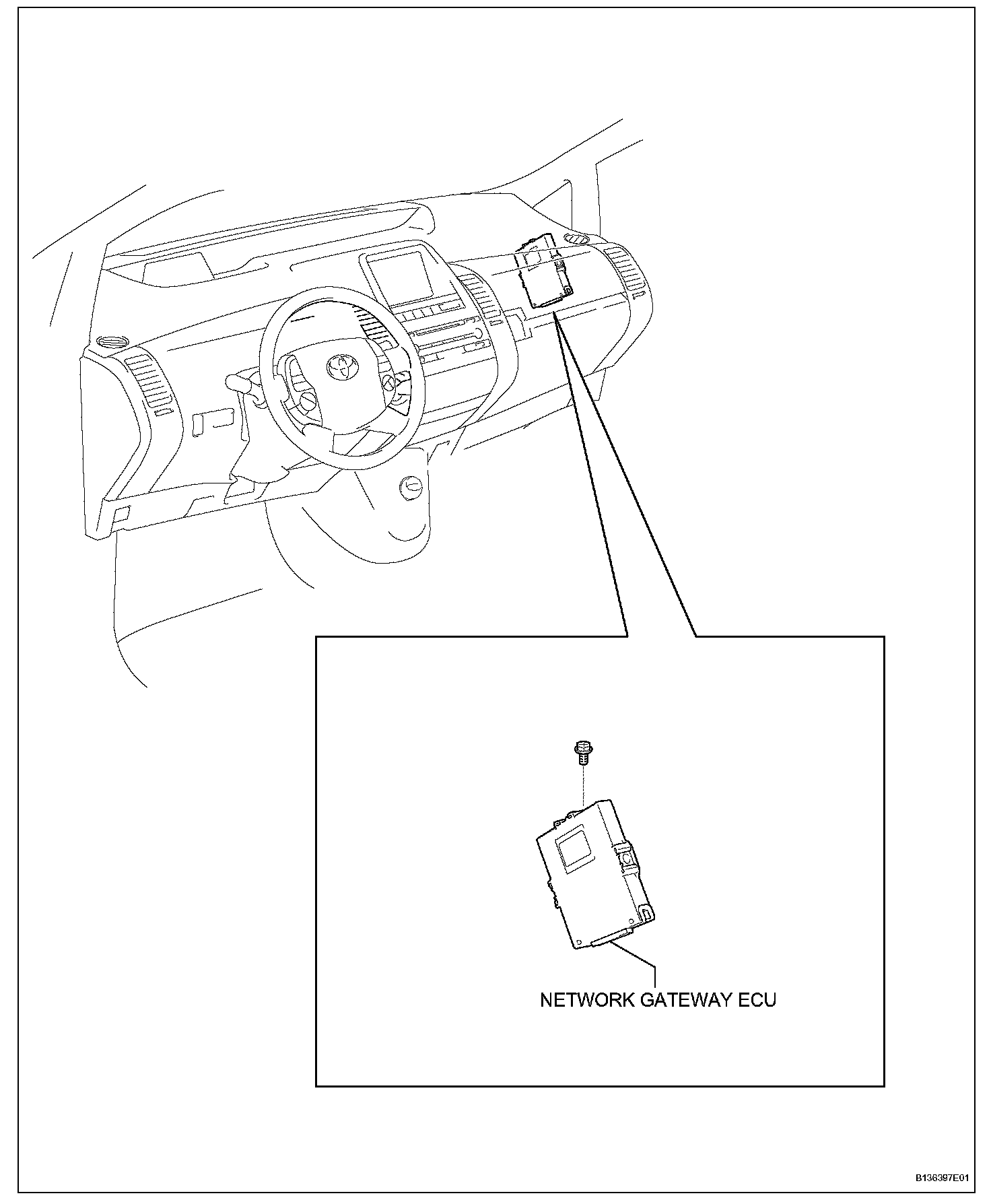

Network Gateway ECU:




NETWORK GATEWAY ECU

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
a. Remove the instrument panel.

3. REMOVE NETWORK GATEWAY ECU




a. Disconnect the connector.

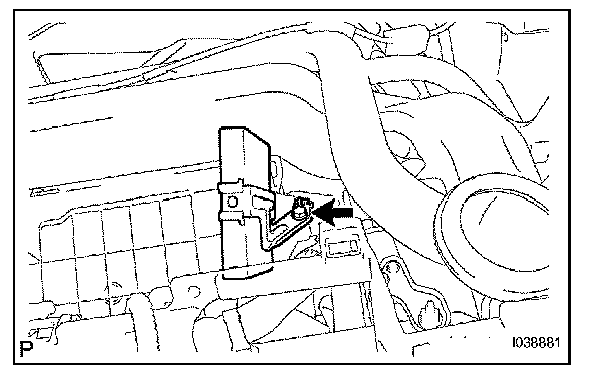

b. Remove the bolt and network gateway ECU.

INSTALLATION

1. INSTALL NETWORK GATEWAY ECU

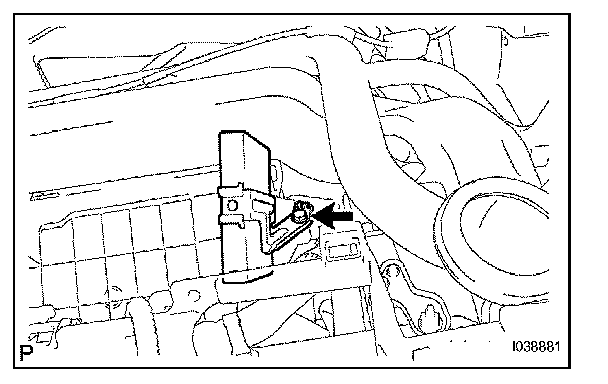

a. Install the network gateway ECU with the bolt.
b. Connect the connector.

2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
a. Install the instrument panel.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
