Control Module HVAC: Service and Repair

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
2. REMOVE NO. 3 AIR DUCT REAR

3. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY




a. Disconnect the connector.

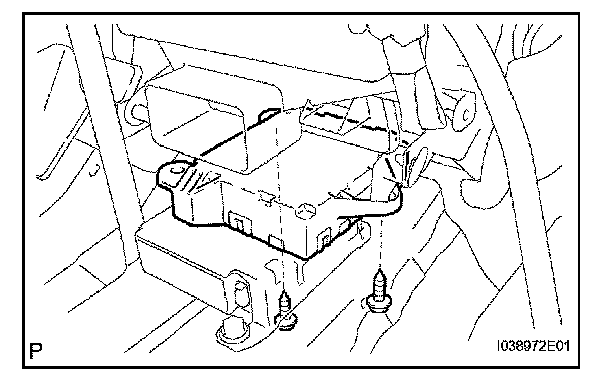

b. Remove the 2 screws and air conditioning amplifier

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

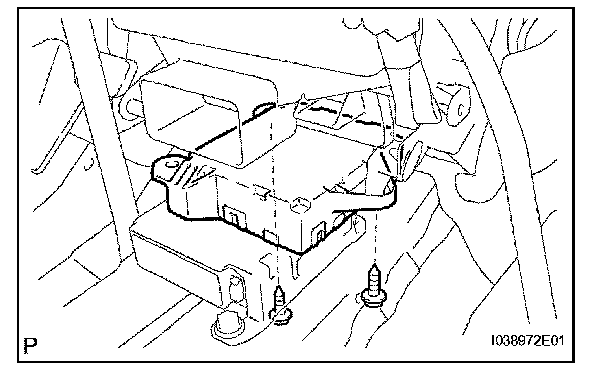

a. Install the air conditioning amplifier with the 2 screws.
b. Connect the connector.

2. INSTALL NO. 3 AIR DUCT REAR
3. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER
