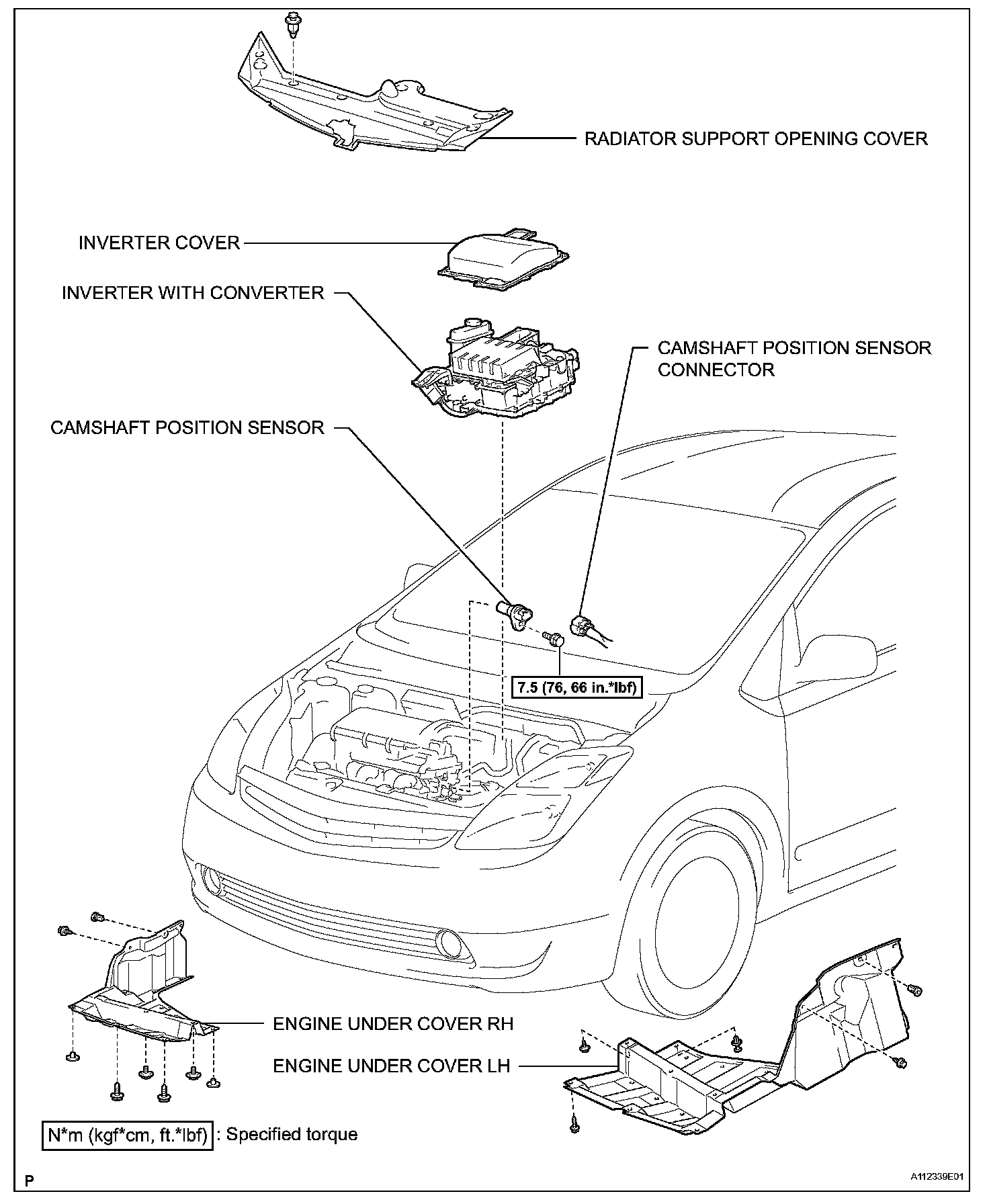

Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor:





REMOVAL

1. REMOVE RADIATOR SUPPORT OPENING COVER
2. REMOVE ENGINE UNDER COVER LH
3. REMOVE ENGINE UNDER COVER RH
4. DRAIN ENGINE COOLANT
5. DRAIN HV COOLANT
6. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

7. REMOVE INVERTER WITH CONVERTER
a. Remove the inverter with converter.

8. REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the sensor connector.
b. Remove the bolt and sensor.

INSTALLATION

1. INSTALL CAMSHAFT POSITION SENSOR
a. Install the sensor with the bolt.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

b. Connect the sensor connector.

2. INSTALL INVERTER WITH CONVERTER
a. Install the inverter with converter.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. ADD HV COOLANT
5. ADD ENGINE COOLANT
6. CHECK FOR ENGINE COOLANT LEAKS
7. CHECK FOR HV COOLANT LEAKS
8. INSTALL RADIATOR SUPPORT OPENING COVER
9. INSTALL ENGINE UNDER COVER RH
10. INSTALL ENGINE UNDER COVER LH
11. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
