Crankshaft Position Sensor: Testing and Inspection

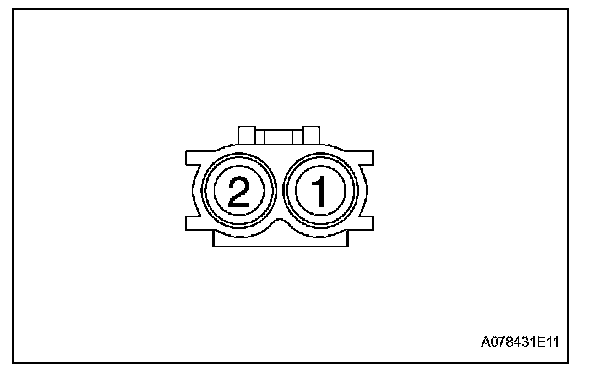

INSPECTION INSPECT CRANKSHAFT POSITION SENSOR Measure the resistance of the sensor.
NOTE: The terms "Cold" and "Hot" refer to the temperature of the sensor. "Cold" means approximately
-10 to 50 °C (14 to 122 ° F). "Hot" means approximately
50 to 100 °C (122 to 212 °F).
If the result is not as specified, replace the
crankshaft position sensor.
