Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table - Result List Of How To Proceed With Troubleshooting:

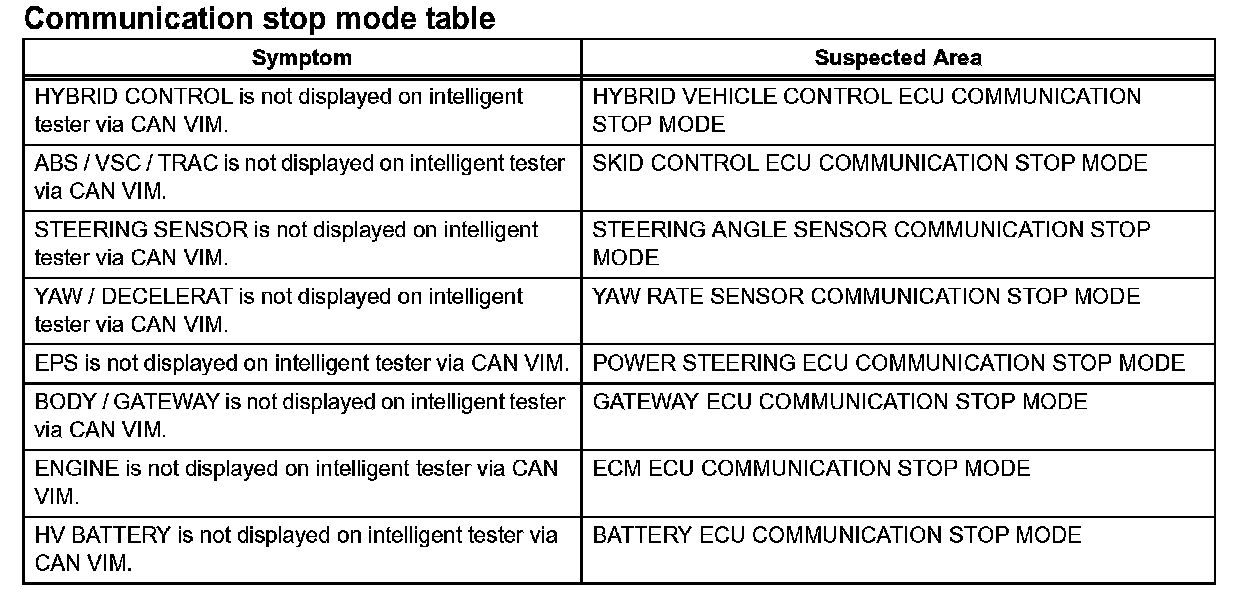

Problem Symptoms Table - Communication Stop Mode Table:

HINT:
- Use the table to help determine the cause of the problem symptom. The potential cause of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by the checking the suspected areas in the order they are listed. Replace parts as necessary.
- Inspect the fuses and relays to this system before inspecting the suspected areas.
