Connecting Rod, Engine
Connecting Rod Small End Bore Diameter
Standard
17.965 to 17.985 mm (0.7073 to 0.7081 inch)

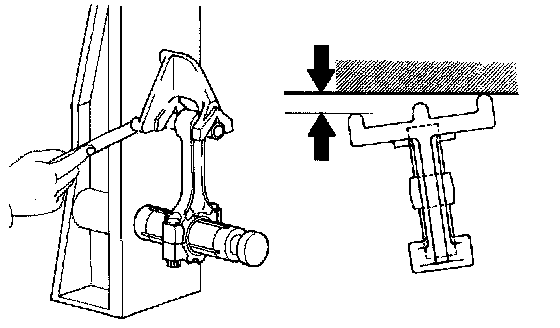

Maximum Misalignment
0.05 mm (0.0020 inch) Per 100 mm (3.94 inch)
Connecting Rod Cap Bolt Diameter
Standard
6.6 to 6.7 mm (0.260 to 0.264 inch)
Minimum
6.4 mm (0.252 inch)
Connecting Rod Cap Bolts
First Pass
15 Nm (153 kgf-cm, 11 ft. lbs.)
Final Pass
90°
